Name: Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) ((V) TOJA999999)
Rating: 4.6 (1 reviews)

Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) ((V) TOJA999999) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection, Pet Tank...

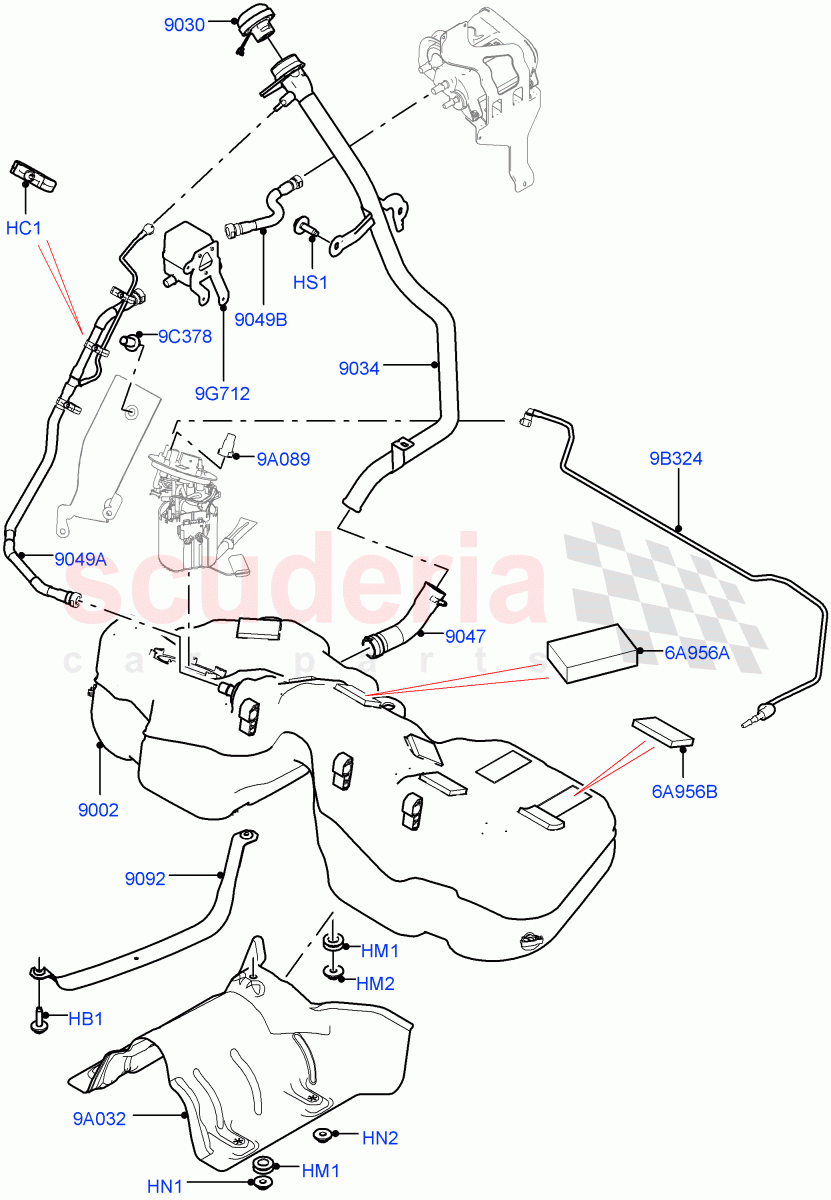

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078393	BOLT AND WASHER - HEX.HEAD	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	$3.96	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000893	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092900	TANK - FUEL	$814.18	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	$40.74	To Order
	LR138720	CAP - FUEL TANK FILLER	$39.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093112	PIPE - FUEL FILLER	$190.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093121	HOSE - FILLER PIPE	$49.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095379	STRAP - FUEL TANK	$59.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092980	TUBE - FUEL VAPOUR	$94.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092981	TUBE - FUEL VAPOUR	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092966	SHIELD - FUEL TANK	$66.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021822	CAP - FILLER	$40.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092962	TUBE - FUEL RETURN	$40.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093968	RETAINER	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093730	SEPARATOR - FUEL VAPOUR	$58.94	To Order
	LR106366	SEPARATOR - FUEL VAPOUR	$62.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	$16.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133219	FOAM PAD - ENERGY ABSORBING	$9.42	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR078393	BOLT AND WASHER - HEX.HEAD	LR078393 BOLT AND WASHER - HEX.HEAD M8 x 40MM, To Body	$1.55	4
HC1	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Vapour Line	$4.44	3
HM1	WYD000020	GROMMET	WYD000020 GROMMET	$3.96	1
HM2	WYF000020	SPACER	WYF000020 SPACER	$3.71	1
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	1
HN2	LR000893	NUT IN STOCK	LR000893 NUT "Spring", Heat Shield IN STOCK	$1.04	4
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM	$1.05	2
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm	$16.01	4
6A956B	LR133219	FOAM PAD - ENERGY ABSORBING	LR133219 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 35mm	$9.42	6
9A032	LR092966	SHIELD - FUEL TANK	LR092966 SHIELD - FUEL TANK	$66.40	1
9A089	LR021822	CAP - FILLER	LR021822 CAP - FILLER Pet Tank With Leak Det - Lrg Filter	$40.16	1
9B324	LR092962	TUBE - FUEL RETURN	LR092962 TUBE - FUEL RETURN	$40.76	1
9C378	LR093968	RETAINER	LR093968 RETAINER Bracket, Ventilation Tube	$4.05	1
9G712	LR093730	SEPARATOR - FUEL VAPOUR	LR093730 SEPARATOR - FUEL VAPOUR To: JA711431	$58.94	1
9G712	LR106366	SEPARATOR - FUEL VAPOUR	LR106366 SEPARATOR - FUEL VAPOUR From: JA711432	$62.93	1
9002	LR092900	TANK - FUEL	LR092900 TANK - FUEL	$814.18	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER To: JA711431	$40.74	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER From: JA711432	$39.29	1
9034	LR093112	PIPE - FUEL FILLER	LR093112 PIPE - FUEL FILLER	$190.35	1
9047	LR093121	HOSE - FILLER PIPE	LR093121 HOSE - FILLER PIPE Lower	$49.93	1
9049A	LR092980	TUBE - FUEL VAPOUR	LR092980 TUBE - FUEL VAPOUR	$94.02	1
9049B	LR092981	TUBE - FUEL VAPOUR	LR092981 TUBE - FUEL VAPOUR	$53.74	1
9092	LR095379	STRAP - FUEL TANK	LR095379 STRAP - FUEL TANK	$59.78	2
