Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Fuel Tank-Petrol W/O Leak Detection, Pet...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.55 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.44 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.96 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.71 To Order
Photo Part No Description Price (each) Stock
RYH500350 NUT - SPECIAL $0.52 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
LR000893 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR117162 STUD $6.46 To Order
Photo Part No Description Price (each) Stock
LR112853 TANK - FUEL $1,137.98 To Order
Photo Part No Description Price (each) Stock
LR053665 CAP - FUEL TANK FILLER $34.87 To Order
Photo Part No Description Price (each) Stock
LR093115 PIPE - FUEL FILLER $241.34 To Order
LR141135 PIPE - FUEL FILLER $220.26 To Order
Photo Part No Description Price (each) Stock
LR093121 HOSE - FILLER PIPE $49.93 To Order
Photo Part No Description Price (each) Stock
LR112145 STRAP - FUEL TANK $61.12 To Order
Photo Part No Description Price (each) Stock
LR112146 SHIELD - FUEL TANK $89.06 To Order
Photo Part No Description Price (each) Stock
LR092962 TUBE - FUEL RETURN $40.76 To Order
Photo Part No Description Price (each) Stock
LR093968 RETAINER $4.05 To Order
Photo Part No Description Price (each) Stock
LR092999 TUBE - VENTILATION $52.27 To Order
LR112148 TUBE - VENTILATION $51.47 To Order
LR141268 TUBE - VENTILATION $47.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092974 TUBE - FUEL VAPOUR $98.36 To Order
Photo Part No Description Price (each) Stock
LR125431 FOAM PAD - ENERGY ABSORBING $16.01 To Order
Photo Part No Description Price (each) Stock
LR133219 FOAM PAD - ENERGY ABSORBING $9.42 To Order
Photo Part No Description Price (each) Stock
LR112856 SHIELD $28.59 To Order
Photo Part No Description Price (each) Stock
LR112855 SHIELD $28.59 To Order
View All

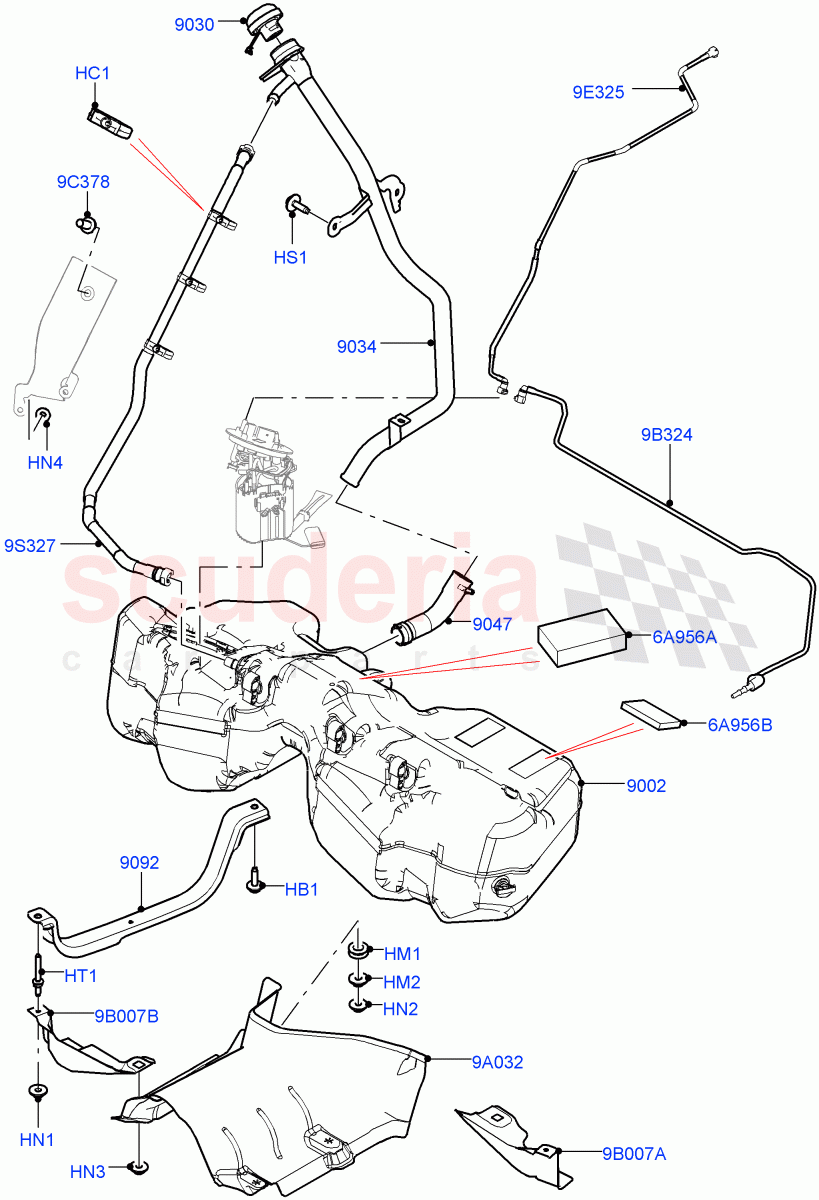

Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Fuel Tank-Petrol W/O Leak Detection, Pet Tank W/O Leak Det - Std Filter) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR078393
BOLT AND WASHER - HEX.HEAD
M8 x 40MM, To Body / From: KA000001 		$1.55 2
HC1 LR060351
CLIP - HOSE
Vapour Line / From: KA000001 		$4.44 5
HM1 WYD000020
GROMMET
From: KA000001 		$3.96 1
HM2 WYF000020
SPACER
From: KA000001 		$3.71 1
HN1 RYH500350
NUT - SPECIAL
M8 / From: KA000001 		$0.52 2
HN2 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: KA000001 		$0.67 1
HN3 LR000893
NUT
"Spring", Heat Shield / From: KA000001
IN STOCK 		$1.04 4
HN4 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$1.47 2
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001 		$1.05 2
HT1 LR117162
STUD
To Body / From: KA000001 		$6.46 2
6A956A LR125431
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 20mm / From: KA000001 		$16.01 4
6A956B LR133219
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 35mm / From: KA000001 		$9.42 6
9A032 LR112146
SHIELD - FUEL TANK
From: KA000001 		$89.06 1
9B007A LR112856
SHIELD
LH / From: KA000001 		$28.59 1
9B007B LR112855
SHIELD
RH / From: KA000001 		$28.59 1
9B324 LR092962
TUBE - FUEL RETURN
From: KA000001 		$40.76 1
9C378 LR093968
RETAINER
Bracket, Vapour Line / From: KA000001 		$4.05 1
9E325 LR092999
TUBE - VENTILATION
Fuel Tank-Petrol W/O Leak Detection / Charcoal Cannister / From: KA000001 / To: LA999999 		$52.27 1
9E325 LR112148
TUBE - VENTILATION
Pet Tank W/O Leak Det - Std Filter / Charcoal Cannister / From: KA000001 / To: LA999999 		$51.47 1
9E325 LR141268
TUBE - VENTILATION
Pet Tank W/O Leak Det - Std Filter / Charcoal Cannister / From: MA000001 		$47.46 1
9E325 LR141433
TUBE - VENTILATION
Fuel Tank-Petrol W/O Leak Detection / Charcoal Cannister / From: MA000001 		$49.86 1
9S327 LR092974
TUBE - FUEL VAPOUR
From: KA000001 		$98.36 1
9002 LR112853
TANK - FUEL
From: KA000001 		$1,137.98 1
9030 LR053665
CAP - FUEL TANK FILLER
From: KA000001 		$34.87 1
9034 LR093115
PIPE - FUEL FILLER
From: KA000001 / To: LA999999 		$241.34 1
9034 LR141135
PIPE - FUEL FILLER
From: MA000001 		$220.26 1
9047 LR093121
HOSE - FILLER PIPE
Lower / From: KA000001 		$49.93 1
9092 LR112145
STRAP - FUEL TANK
RH/LH / From: KA000001 		$61.12 2
