Radiator/Coolant Overflow Container (Main Unit) (3.0L Dohc Gdi Sc V6 Petrol)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Radiator/Coolant Overflow Container (Main Unit) (3.0L DOHC GDI SC V6 PETROL)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR090381 SCREW AND WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.13 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR092460 RADIATOR - MAIN $615.86 To Order
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER $17.14 To Order
Photo Part No Description Price (each) Stock
LR166141 PLUG - RADIATOR DRAIN $7.70 To Order
Photo Part No Description Price (each) Stock
LR092462 DEFLECTOR - AIR - RADIATOR $46.49 To Order
Photo Part No Description Price (each) Stock
LR092118 BRACKET - HOUSING MOUNTING $18.73 To Order
LR134915 BRACKET - HOUSING MOUNTING $18.73 To Order
LR156394 BRACKET - HOUSING MOUNTING $18.73 To Order
Photo Part No Description Price (each) Stock
LR094854 FRAME - RADIATOR SUPPORT $158.06 To Order
Photo Part No Description Price (each) Stock
LR116278 FLAP - RADIATOR SHROUD $30.55 To Order
Photo Part No Description Price (each) Stock
LR092122 BRACKET - RADIATOR UPPER $25.70 To Order
LR134919 BRACKET - RADIATOR UPPER $29.03 To Order
Photo Part No Description Price (each) Stock
LR092123 BRACKET - RADIATOR UPPER $29.03 To Order
LR134917 BRACKET - RADIATOR UPPER $29.03 To Order
Photo Part No Description Price (each) Stock
LR092117 INSULATOR - RADIATOR MOUNTING $4.58 To Order
Photo Part No Description Price (each) Stock
LR092467 INSULATOR - RADIATOR SUPPORT $16.33 To Order
Photo Part No Description Price (each) Stock
LR091767 TANK - RADIATOR OVERFLOW $103.51 To Order
LR128194 TANK - RADIATOR OVERFLOW $134.80 To Order
Photo Part No Description Price (each) Stock
LR092805 MOTOR AND FAN - ENGINE COOLING $661.26 To Order
LR092806 MOTOR AND FAN - ENGINE COOLING $710.92 To Order
LR092808 MOTOR AND FAN - ENGINE COOLING $891.82 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $25.03 IN STOCK
Photo Part No Description Price (each) Stock
LR092465 BRACKET - CONDENSER SUPPORT $25.75 To Order
LR092465 BRACKET - CONDENSER SUPPORT $25.75 To Order
LR092465 BRACKET - CONDENSER SUPPORT $25.75 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092811 BRACKET - RADIATOR UPPER $28.86 To Order
LR108949 BRACKET - RADIATOR UPPER $25.48 To Order
LR128756 BRACKET - RADIATOR UPPER $25.48 To Order
View All

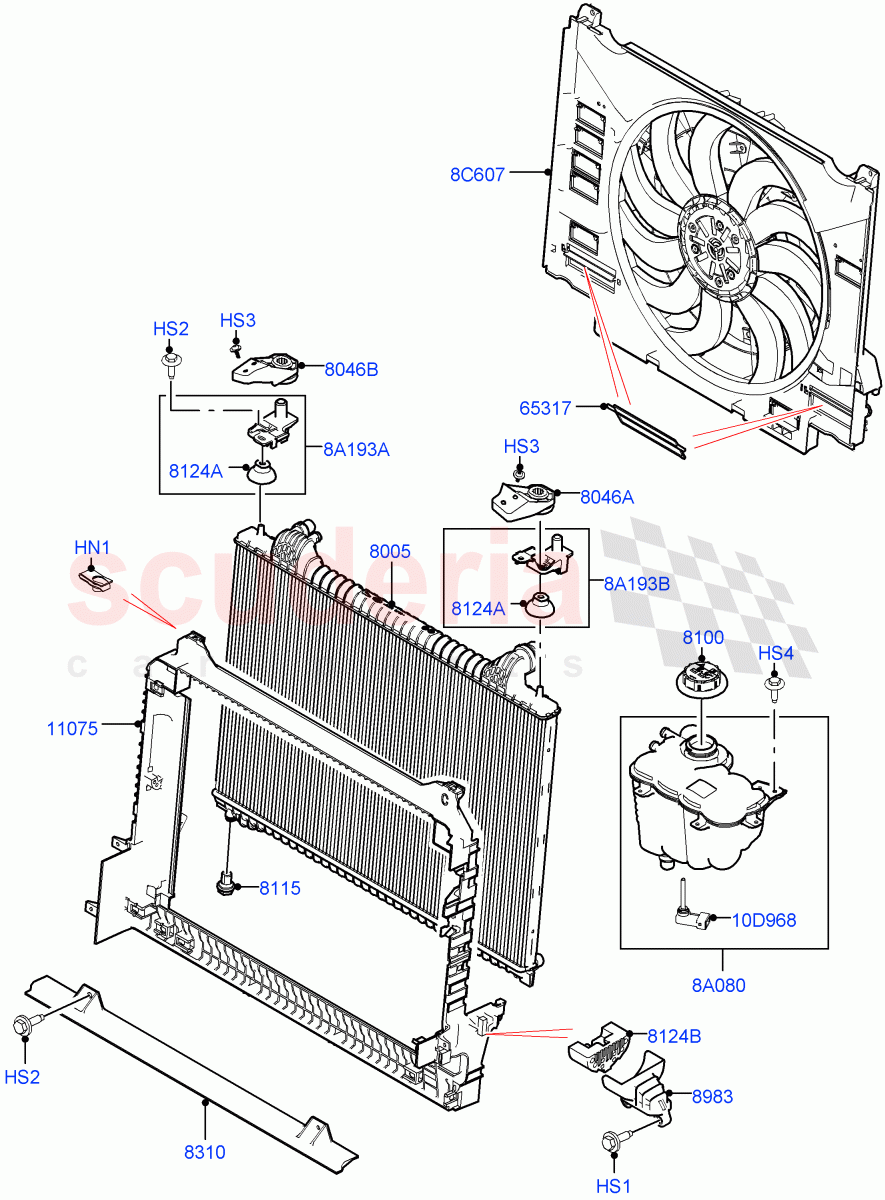

Radiator/Coolant Overflow Container (Main Unit) (3.0L DOHC GDI SC V6 PETROL) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.63 9
HS1 FS106206
SCREW
Bracket, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 4
HS2 LR090381
SCREW AND WASHER
Hexagonal Head, M6 X 20MM 		$1.07 4
HS3 LR033401
SCREW AND WASHER
M6 x 19MM
IN STOCK 		$2.13 4
HS4 AYP500110
SCREW
Bolt And Washer, Expansion Tank, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 1
8A080 LR091767
TANK - RADIATOR OVERFLOW
To: LA247304 		$103.51 1
8A080 LR128194
TANK - RADIATOR OVERFLOW
From: LA247305 		$134.80 1
8A193A LR092465
BRACKET - CONDENSER SUPPORT
RH / To: JA999999 		$25.75 1
8A193A LR092465
BRACKET - CONDENSER SUPPORT
RH / From: KA700000 / To: KA799999 		$25.75 1
8A193A LR092465
BRACKET - CONDENSER SUPPORT
RH / From: KA200000 / To: KA228629 		$25.75 1
8A193A LR128753
BRACKET - CONDENSER SUPPORT
RH / From: KA228630 / To: KA299999 		$25.75 1
8A193A LR128753
BRACKET - CONDENSER SUPPORT
RH / From: LA000001 		$25.75 1
8A193B LR092811
BRACKET - RADIATOR UPPER
LH / To: JA715785 		$28.86 1
8A193B LR108949
BRACKET - RADIATOR UPPER
LH / From: JA715786 / To: LA238773 		$25.48 1
8A193B LR128756
BRACKET - RADIATOR UPPER
LH / From: LA238774 		$25.48 1
8C607 LR092805
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 650W / To: JA760205 		$661.26 1
8C607 LR092806
MOTOR AND FAN - ENGINE COOLING
Engine Cooilng Fan 850W / To: JA761720 		$710.92 1
8C607 LR092808
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 400W / To: JA760205 		$891.82 1
8C607 LR116196
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 400W / From: JA760206 / To: LA274295 		$891.82 1
8C607 LR116200
MOTOR AND FAN - ENGINE COOLING
Engine Cooilng Fan 850W / From: JA761721 / To: LA274295 		$710.92 1
8C607 LR116198
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 650W / From: JA760206 / To: LA274295 		$645.16 1
8C607 LR137842
MOTOR AND FAN - ENGINE COOLING
Engine Cooilng Fan 850W / From: LA274296 		$710.92 1
8C607 LR137844
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 400W / From: LA274296 		$891.82 1
8C607 LR137841
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 650W / From: LA274296 		$645.16 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
IN STOCK 		$25.03 1
8005 LR092460
RADIATOR - MAIN 		$615.86 1
8046A LR092122
BRACKET - RADIATOR UPPER
LH Upper / To: LA255298 		$25.70 1
8046A LR134919
BRACKET - RADIATOR UPPER
LH Upper / From: LA255299 		$29.03 1
8046B LR092123
BRACKET - RADIATOR UPPER
RH Upper / To: LA255298 		$29.03 1
8046B LR134917
BRACKET - RADIATOR UPPER
RH Upper / From: LA255299 		$29.03 1
8100 LR176861
CAP - OVERFLOW CONTAINER 		$17.14 1
8115 LR166141
PLUG - RADIATOR DRAIN 		$7.70 1
8124A LR092117
INSULATOR - RADIATOR MOUNTING
RH And LH, Upper 		$4.58 2
8124B LR092467
INSULATOR - RADIATOR SUPPORT
RH And LH 		$16.33 2
8310 LR092462
DEFLECTOR - AIR - RADIATOR 		$46.49 1
8983 LR092118
BRACKET - HOUSING MOUNTING
RH And LH / To: LA247304 		$18.73 2
8983 LR134915
BRACKET - HOUSING MOUNTING
RH And LH / From: LA247305 / To: MA312492 		$18.73 2
8983 LR156394
BRACKET - HOUSING MOUNTING
RH And LH / From: MA312493 		$18.73 2
11075 LR094854
FRAME - RADIATOR SUPPORT 		$158.06 1
65317 LR116278
FLAP - RADIATOR SHROUD 		$30.55 2
