Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Electric Auxiliary Coolant Pump, Less...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
LR091825 HOSE - WATER $88.55 To Order
Photo Part No Description Price (each) Stock
LR113368 HOSE - RADIATOR $98.29 To Order
LR113368 HOSE - RADIATOR $98.29 To Order
LR113368 HOSE - RADIATOR $98.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091641 HOSE - RADIATOR $125.43 To Order
LR115115 HOSE - RADIATOR $134.79 To Order
Photo Part No Description Price (each) Stock
LR091885 HOSE - WATER $104.62 To Order
LR115116 HOSE - WATER $103.45 To Order
Photo Part No Description Price (each) Stock
LR091522 HOSE - COOLING SYSTEM $25.29 To Order
LR110238 HOSE - COOLING SYSTEM $25.29 To Order
Photo Part No Description Price (each) Stock
LR091810 HOSE - RADIATOR $102.14 To Order
Photo Part No Description Price (each) Stock
LR091813 HOSE - RADIATOR VENTILATION $35.49 To Order
Photo Part No Description Price (each) Stock
LR091779 HOSE - HEATER WATER $89.75 To Order
Photo Part No Description Price (each) Stock
LR091900 HOSE - RADIATOR VENTILATION $60.91 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.73 To Order
Photo Part No Description Price (each) Stock
LR141291 BRACKET $4.35 To Order
View All

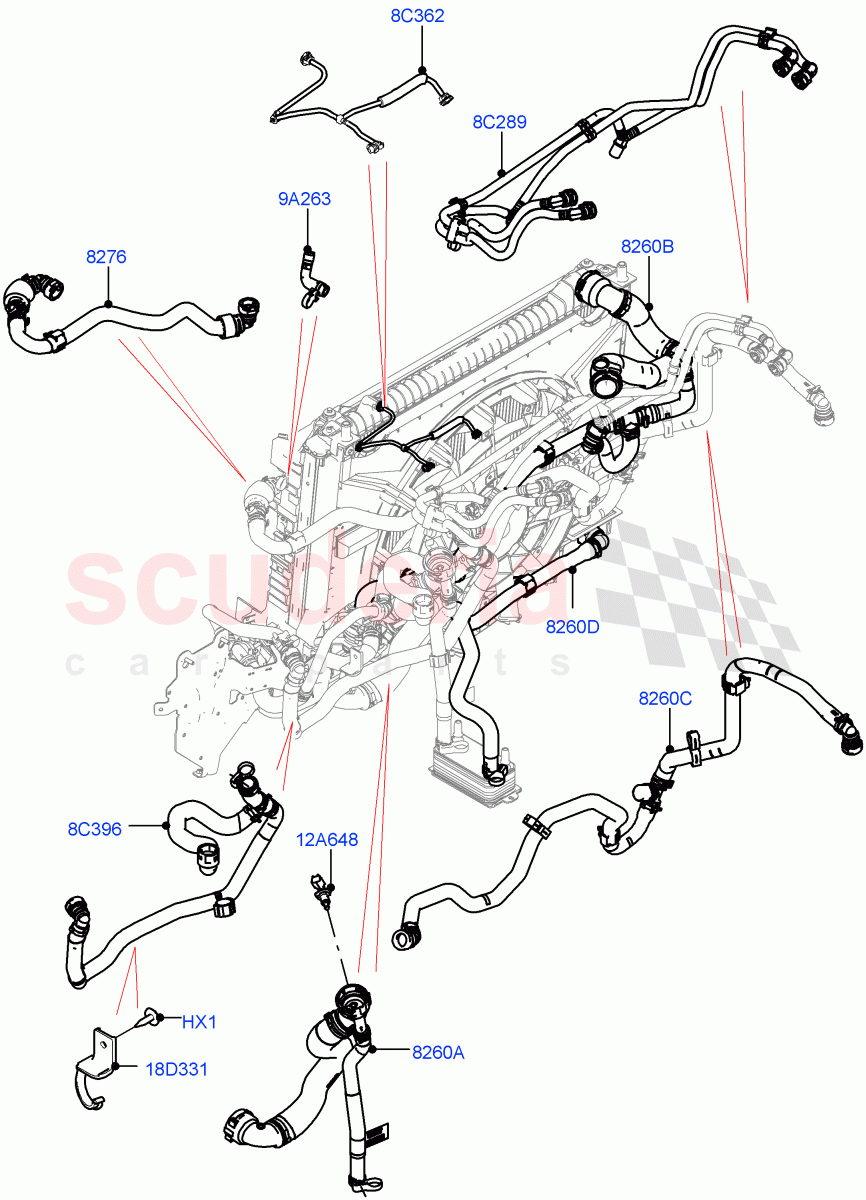

Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Electric Auxiliary Coolant Pump, Less Engine Cooling System) ((V) TOJA999999) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Bracket, Push Pin
IN STOCK 		$1.50 1
8C289 LR091810
HOSE - RADIATOR
Intercooler 		$102.14 1
8C362 LR091813
HOSE - RADIATOR VENTILATION
To Expansion Tank 		$35.49 1
8C396 LR091779
HOSE - HEATER WATER
Thermostat To Auxliary Water Pump 		$89.75 1
9A263 LR091900
HOSE - RADIATOR VENTILATION
With Bleed Hose 		$60.91 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE 		$59.73 1
18D331 LR141291
BRACKET 		$4.35 1
8260A LR113368
HOSE - RADIATOR
Lower, Radiator / To: JA999999 		$98.29 1
8260A LR113368
HOSE - RADIATOR
Lower, Radiator / From: KA700000 / To: KA799999 		$98.29 1
8260A LR113368
HOSE - RADIATOR
Lower, Radiator / From: KA200000 / To: KA236786 		$98.29 1
8260A LR122806
HOSE - RADIATOR
Lower, Radiator / From: KA236787 / To: KA299999 		$103.75 1
8260A LR122806
HOSE - RADIATOR
Lower, Radiator / From: LA000001 		$103.75 1
8260B LR091641
HOSE - RADIATOR
Radiator, Upper / To: JA738802 		$125.43 1
8260B LR115115
HOSE - RADIATOR
Radiator, Upper / From: JA738803 		$134.79 1
8260C LR091885
HOSE - WATER
Water Charge Air Cooler / To: JA778426 		$104.62 1
8260C LR115116
HOSE - WATER
Water Charge Air Cooler / From: JA778427 		$103.45 1
8260D LR091522
HOSE - COOLING SYSTEM
From Transmission Oil Cooler To Radiator / To: KA778648 		$25.29 1
8260D LR110238
HOSE - COOLING SYSTEM
From Transmission Oil Cooler To Radiator / From: KA778649 		$25.29 1
8276 LR091825
HOSE - WATER
Intercooler Outlet 		$88.55 1
