Name: Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter, Petrol Tank With Leak Detection) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter, Petrol Tank With Leak Detection) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter, Petrol...

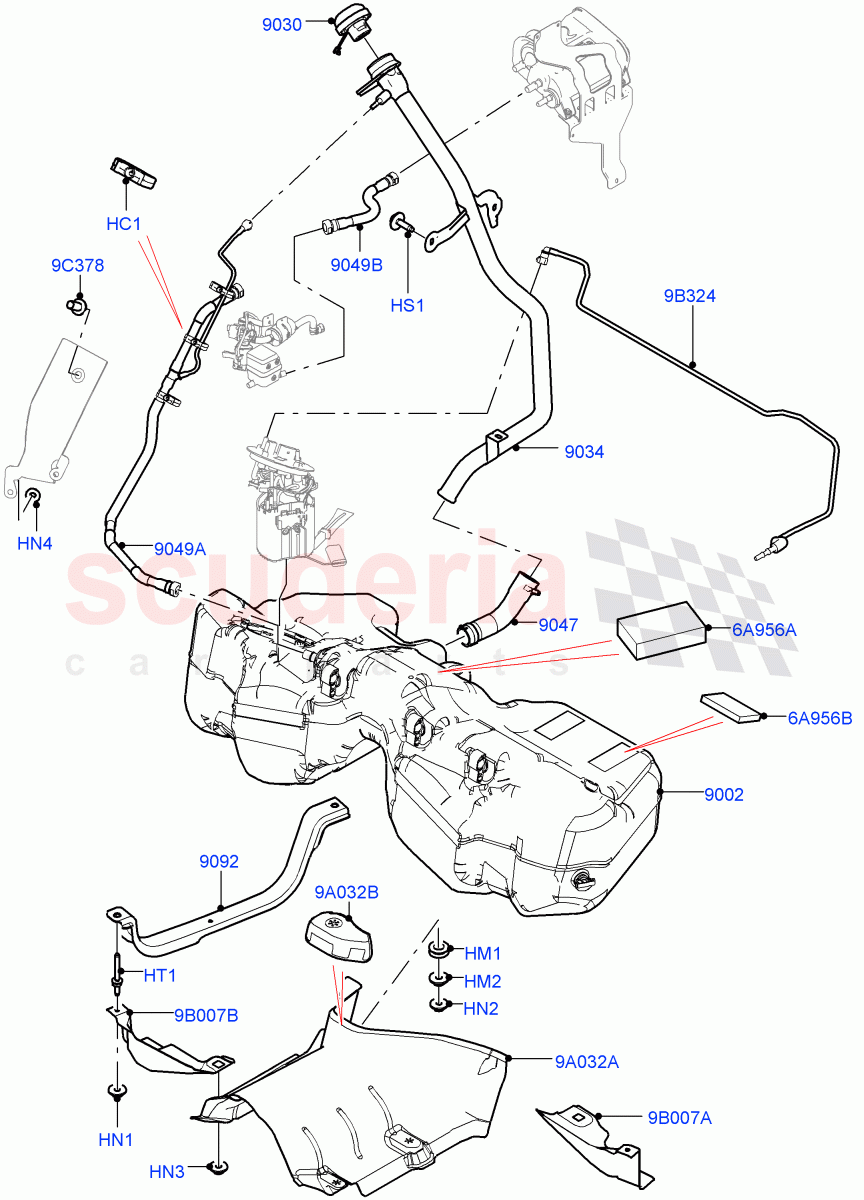

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000893	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141756	STUD	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112852	TANK - FUEL	$1,067.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138720	CAP - FUEL TANK FILLER	$39.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141136	PIPE - FUEL FILLER	$200.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093121	HOSE - FILLER PIPE	$49.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112145	STRAP - FUEL TANK	$61.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141266	TUBE - FUEL VAPOUR	$61.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092981	TUBE - FUEL VAPOUR	$53.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092962	TUBE - FUEL RETURN	$40.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093968	RETAINER	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	$15.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133219	FOAM PAD - ENERGY ABSORBING	$9.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112146	SHIELD - FUEL TANK	$88.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149834	SHIELD - FUEL TANK	$32.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112856	SHIELD	$28.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112855	SHIELD	$28.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Vapour Line / From: MA000001	$4.43	3
HM1	WYD000020	GROMMET	WYD000020 GROMMET Insulator / From: MA000001	$3.95	1
HM2	WYF000020	SPACER	WYF000020 SPACER Spacer / From: MA000001	$3.70	1
HN1	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: MA000001	$0.52	2
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: MA000001	$0.67	1
HN3	LR000893	NUT IN STOCK	LR000893 NUT "Spring", Heat Shield / From: MA000001 IN STOCK	$1.04	4
HN4	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001 IN STOCK	$1.46	2
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	$1.05	2
HT1	LR141756	STUD	LR141756 STUD To Body / From: MA000001	$1.89	4
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm / From: MA000001	$15.98	4
6A956B	LR133219	FOAM PAD - ENERGY ABSORBING	LR133219 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 35mm / From: MA000001	$9.41	6
9A032A	LR112146	SHIELD - FUEL TANK	LR112146 SHIELD - FUEL TANK Main / From: MA000001	$88.91	1
9A032B	LR149834	SHIELD - FUEL TANK	LR149834 SHIELD - FUEL TANK Front / From: MA000001	$32.73	1
9B007A	LR112856	SHIELD	LR112856 SHIELD LH / From: MA000001	$28.54	1
9B007B	LR112855	SHIELD	LR112855 SHIELD RH / From: MA000001	$28.54	1
9B324	LR092962	TUBE - FUEL RETURN	LR092962 TUBE - FUEL RETURN From: MA000001	$40.69	1
9C378	LR093968	RETAINER	LR093968 RETAINER Bracket, Vapour Line / From: MA000001	$4.04	1
9002	LR112852	TANK - FUEL	LR112852 TANK - FUEL Tank Includes Second Sender / From: MA000001	$1,067.10	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER From: MA000001	$39.22	1
9034	LR141136	PIPE - FUEL FILLER	LR141136 PIPE - FUEL FILLER From: MA000001	$200.55	1
9047	LR093121	HOSE - FILLER PIPE	LR093121 HOSE - FILLER PIPE Lower / From: MA000001	$49.84	1
9049A	LR141266	TUBE - FUEL VAPOUR	LR141266 TUBE - FUEL VAPOUR Front / From: MA000001	$61.98	1
9049B	LR092981	TUBE - FUEL VAPOUR	LR092981 TUBE - FUEL VAPOUR Charcoal Cannister / From: MA000001	$53.65	1
9092	LR112145	STRAP - FUEL TANK	LR112145 STRAP - FUEL TANK RH/LH / From: MA000001	$61.02	2
