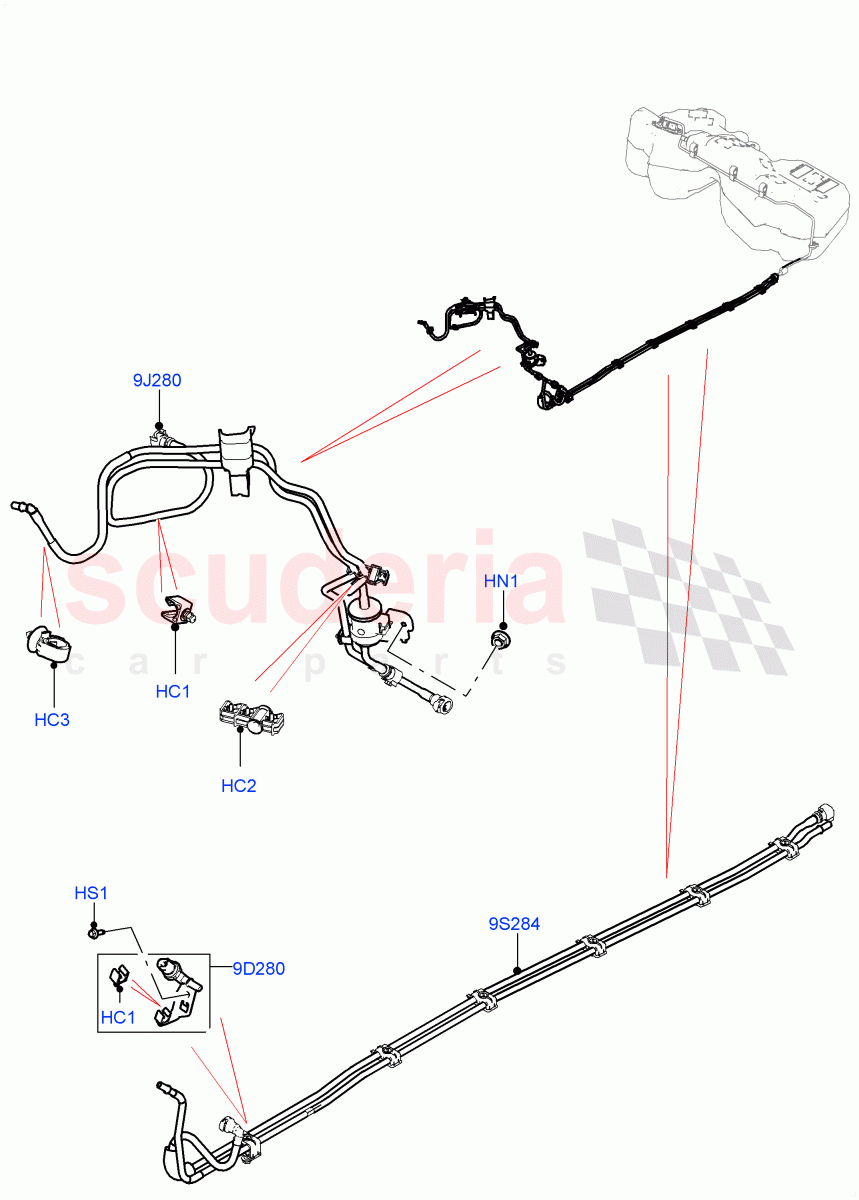

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093726	CLIP - PIPE	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR144232	SENSOR - FUEL PRESSURE/TEMPERATURE	$119.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141404	PIPE - FUEL	$63.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146152	TUBE - FUEL SUPPLY	$132.88	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: MA000001	$3.51	2
HC2	LR093726	CLIP - PIPE	LR093726 CLIP - PIPE Double / From: MA000001	$1.49	1
HC3	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE Front, Single / From: MA000001	$3.34	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001 IN STOCK	$1.46	1
HS1	RYG500190	SCREW IN STOCK	RYG500190 SCREW Hexagonal Head, M6 X 16MM / From: MA000001 IN STOCK	$0.73	1
9D280	LR144232	SENSOR - FUEL PRESSURE/TEMPERATURE	LR144232 SENSOR - FUEL PRESSURE/TEMPERATURE From: MA000001	$119.45	1
9J280	LR141404	PIPE - FUEL	LR141404 PIPE - FUEL Front / From: MA000001	$63.71	1
9S284	LR146152	TUBE - FUEL SUPPLY	LR146152 TUBE - FUEL SUPPLY Rear / From: MA000001	$132.88	1
