Thermostat/Housing & Related Parts (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Thermostat/Housing & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.47 To Order
Photo Part No Description Price (each) Stock
LR140792 O-RING $7.14 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR128486 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.59 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR121410 HOSE $46.44 To Order
LR155605 HOSE $69.60 To Order
Photo Part No Description Price (each) Stock
LR137626 HOSE - COOLANT BLEED $49.52 To Order
Photo Part No Description Price (each) Stock
LR121420 THERMOSTAT AND HOUSING $92.89 To Order
Photo Part No Description Price (each) Stock
LR141764 BRACKET - SUPPORT $26.21 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $36.26 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.70 To Order
Photo Part No Description Price (each) Stock
LR121415 HOSE - THROTTLE BODY HEATER OUTLET $103.58 To Order
Photo Part No Description Price (each) Stock
LR136428 HOSE - WATER $111.88 To Order
Photo Part No Description Price (each) Stock
LR121447 TUBE - BY-PASS $264.01 To Order
Photo Part No Description Price (each) Stock
LR121446 TUBE - BY-PASS $210.75 To Order
View All

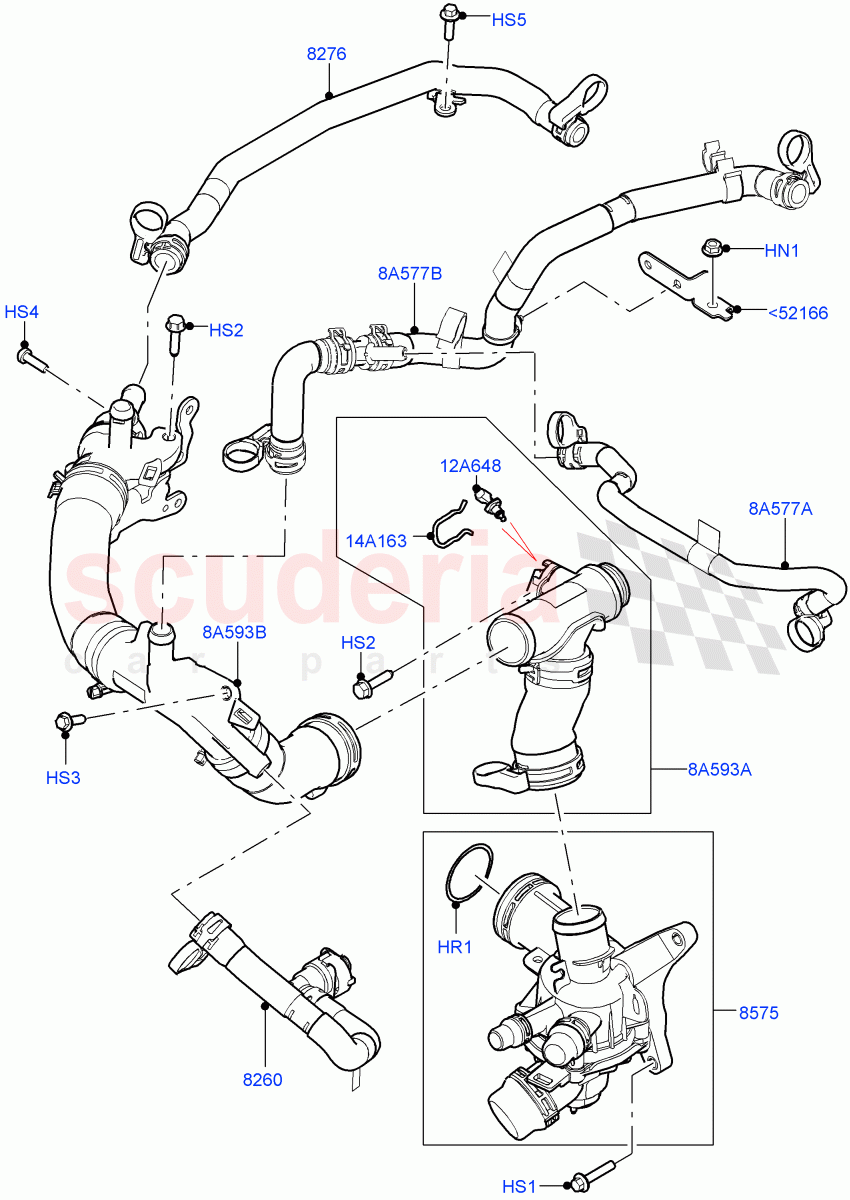

Thermostat/Housing & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<52166 LR141764
BRACKET - SUPPORT
From: MA000001 		$26.21 1
HN1 LR087242
NUT - HEX.
M6 / From: MA000001 		$1.47 1
HR1 LR140792
O-RING
From: MA000001
IN STOCK 		$7.14 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM, To Thermostat / From: MA000001
IN STOCK 		$2.67 2
HS2 LR128486
SCREW
M6 x 25MM, Tube Water By-Pass / From: MA000001 		$1.04 2
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM, Tube Water By-Pass / From: MA000001 		$2.31 2
HS4 LR073720
SCREW
Bracket, M6 X 20MM / From: MA000001 		$1.59 1
HS5 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.60 1
8A577A LR121415
HOSE - THROTTLE BODY HEATER OUTLET
Hose - Throttle Body Heater, Outlet / From: MA000001 		$103.58 1
8A577B LR136428
HOSE - WATER
Outlet, Water Charge Air Cooler / From: MA000001 		$111.88 1
8A593A LR121447
TUBE - BY-PASS
"T" Shaped / From: MA000001 		$264.01 1
8A593B LR121446
TUBE - BY-PASS
Tube Water By-Pass / From: MA000001 		$210.75 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE
From: MA000001 		$36.26 1
14A163 LR105610
RETAINER - SENSOR CLIP
From: MA000001 		$4.70 1
8260 LR121410
HOSE
To Oil Cooler / From: MA000001 / To: MA314798 		$46.44 1
8260 LR155605
HOSE
To Oil Cooler / From: MA314799 		$69.60 1
8276 LR137626
HOSE - COOLANT BLEED
To Cylinder Head / From: MA000001 		$49.52 1
8575 LR121420
THERMOSTAT AND HOUSING
Assembly / From: MA000001 		$92.89 1
