Name: Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High, With Standard Engine Cooling System) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High, With Standard Engine Cooling System) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High, With Standard Engine Cooling System) ((V)...

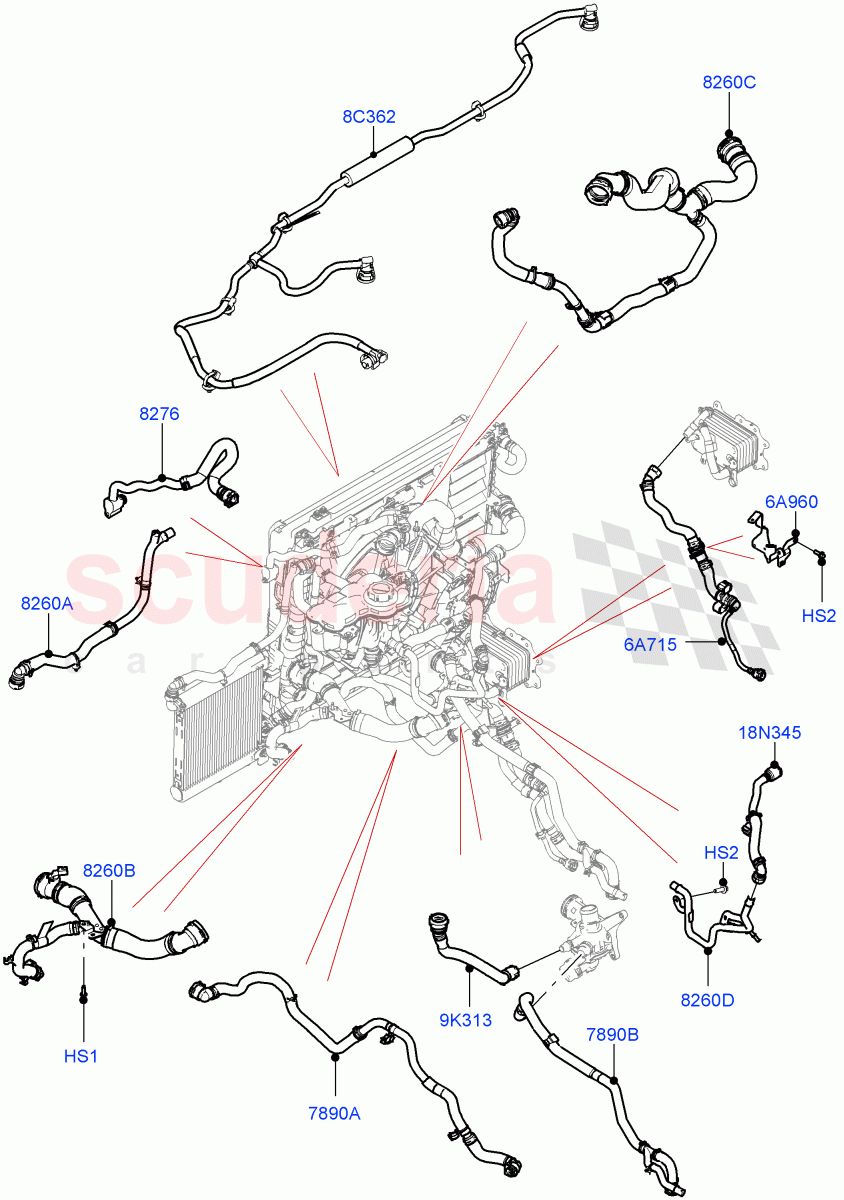

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR140893	HOSE - WATER	$115.05	To Order
	LR159429	HOSE - WATER	$116.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140847	HOSE	$115.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140849	BRACKET	$33.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140867	HOSE - OIL COOLER	$122.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140871	HOSE - WATER	$129.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140911	HOSE - WATER	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140822	HOSE - RADIATOR	$175.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140818	HOSE - RADIATOR	$200.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140971	HOSE	$67.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140897	HOSE - RADIATOR VENTILATION	$143.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140872	HOSE - HEATER WATER	$59.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141017	HOSE - HEATER WATER	$83.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$3.46	1
HS2	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$0.96	3
6A715	LR140847	HOSE	LR140847 HOSE Oil Cooler Inlet Pipe / From: MA000001	$115.38	1
6A960	LR140849	BRACKET	LR140849 BRACKET Hose Support / From: MA000001	$33.42	1
8C362	LR140897	HOSE - RADIATOR VENTILATION	LR140897 HOSE - RADIATOR VENTILATION To Expansion Tank / From: MA000001	$143.42	1
9K313	LR140872	HOSE - HEATER WATER	LR140872 HOSE - HEATER WATER Bottom, To Expansion Tank / From: MA000001	$59.22	1
18N345	LR141017	HOSE - HEATER WATER	LR141017 HOSE - HEATER WATER Water Inlet / From: MA000001	$83.84	1
7890A	LR140867	HOSE - OIL COOLER	LR140867 HOSE - OIL COOLER Inlet / From: MA000001	$122.29	1
7890B	LR140871	HOSE - WATER	LR140871 HOSE - WATER Outlet / From: MA000001	$129.31	1
8260A	LR140911	HOSE - WATER	LR140911 HOSE - WATER Auxiliary Radiator / From: MA000001	$85.03	1
8260B	LR140822	HOSE - RADIATOR	LR140822 HOSE - RADIATOR Bottom / From: MA000001	$175.75	1
8260C	LR140818	HOSE - RADIATOR	LR140818 HOSE - RADIATOR Top / From: MA000001	$200.59	1
8260D	LR140971	HOSE	LR140971 HOSE Heater / From: MA000001	$67.28	1
8276	LR140893	HOSE - WATER	LR140893 HOSE - WATER Water Charge Air Cooler / From: MA000001 / To: MA313984	$115.05	1
8276	LR159429	HOSE - WATER	LR159429 HOSE - WATER Water Charge Air Cooler / From: MA313985	$116.05	1
