Speakers (Super Premium Audio 2500 W)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Speakers (Super Premium Audio 2500 W)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR042803 BOLT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR094020 NUT - SPECIAL $1.05 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
RYH500570 NUT - ADJUSTING $2.83 To Order
Photo Part No Description Price (each) Stock
LR114151 NUT $1.38 IN STOCK
LR114151 NUT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR010155 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR091180 RING - RETAINING $10.33 To Order
Photo Part No Description Price (each) Stock
LR091167 SPEAKER $159.88 To Order
Photo Part No Description Price (each) Stock
LR033293 SPEAKER $79.75 To Order
Photo Part No Description Price (each) Stock
LR033290 SPEAKER $90.24 To Order
Photo Part No Description Price (each) Stock
LR033292 SPEAKER $82.20 To Order
Photo Part No Description Price (each) Stock
LR095415 SPEAKER $173.94 To Order
LR095415 SPEAKER $173.94 To Order
Photo Part No Description Price (each) Stock
LR083936 SPEAKER $104.82 To Order
Photo Part No Description Price (each) Stock
LR091172 SPEAKER $184.88 To Order
Photo Part No Description Price (each) Stock
LR091165 SPEAKER $176.06 To Order
LR140903 SPEAKER $135.16 To Order
Photo Part No Description Price (each) Stock
LR146337 SPEAKER $139.57 To Order
Photo Part No Description Price (each) Stock
LR141157 BRACKET - SPEAKER $18.04 To Order
View All

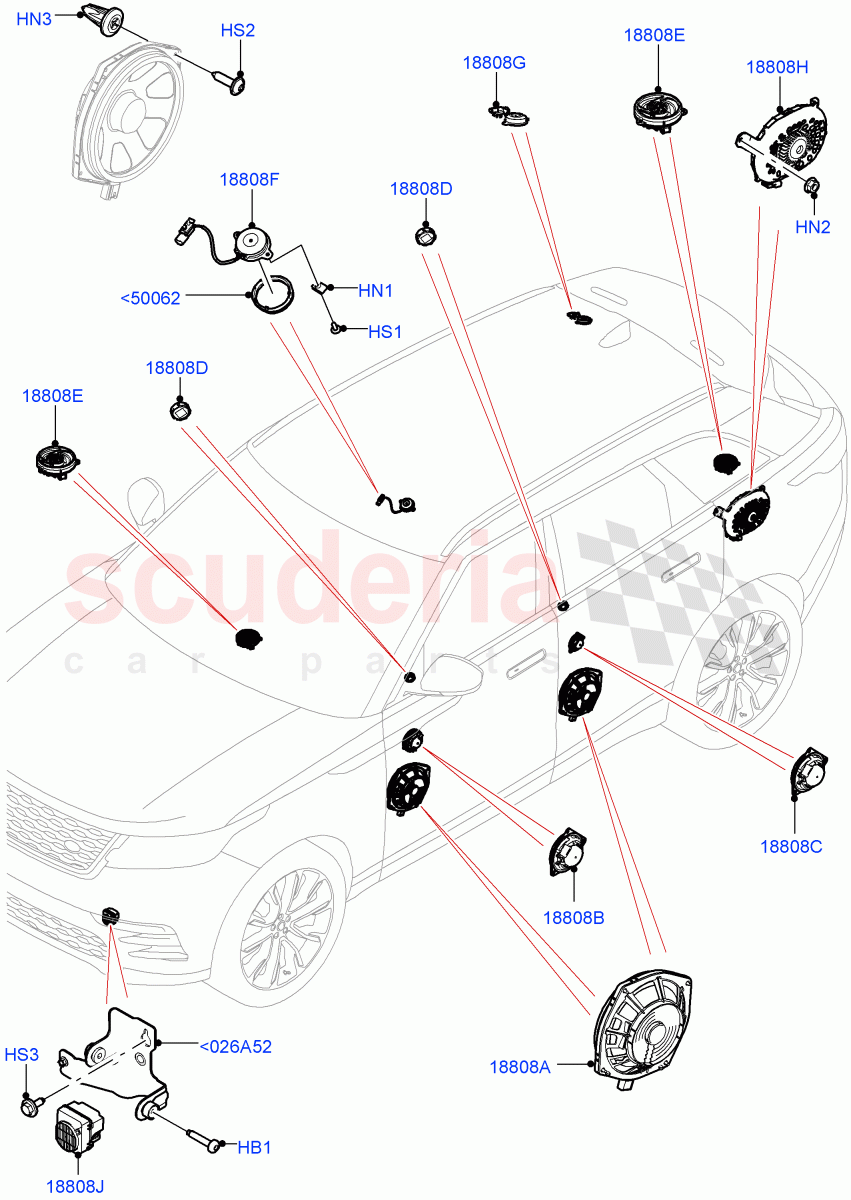

Speakers (Super Premium Audio 2500 W) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<026A52 LR141157
BRACKET - SPEAKER
External Sound Enhancement / From: MA000001 		$18.04 1
<50062 LR091180
RING - RETAINING
Adaptation Ring For Speakers, Located In The Headliner 		$10.33 2
HB1 LR042803
BOLT
External Sound Enhancement / M6 x 28MM, Torx / From: MA000001
IN STOCK 		$1.23 2
HN1 LR094020
NUT - SPECIAL 		$1.05 4
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6, Speaker - Subwoofer / To: LA999999
IN STOCK 		$1.46 4
HN2 RYH500570
NUT - ADJUSTING
M6, Sub-Woofer / From: MA000001 		$2.83 4
HN3 LR114151
NUT
5 X 8 X 8 X 0.8-1.2 / To: KA208023
IN STOCK 		$1.38 12
HN3 LR114151
NUT
5X8X8X0.7-1.3, Expanding Rivet / From: KA208024
IN STOCK 		$1.38 12
HS1 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.77 4
HS2 LR010155
SCREW
M5 X 16MM, Torx, Woofer 		$1.31 12
HS3 KYP500400
SCREW AND WASHER
External Sound Enhancement / Hexagonal Head, M6 X 16MM / From: MA000001 		$0.61 1
18808A LR091167
SPEAKER
165MM, Front And Rear Doors 		$159.88 4
18808B LR033293
SPEAKER
100MM, Front Door, Mid Range 		$79.75 2
18808C LR033290
SPEAKER
80MM, Mid Range, Rear Doors 		$90.24 2
18808D LR033292
SPEAKER
Front And Rear Doors, Tweeter 		$82.20 4
18808E LR095415
SPEAKER
Located In Instrument Panel 		$173.94 1
18808E LR095415
SPEAKER
Located In Loadspace 		$173.94 2
18808F LR083936
SPEAKER
Front, Located In The Headliner 		$104.82 2
18808G LR091172
SPEAKER
Located In The Headliner, Rear 		$184.88 2
18808H LR091165
SPEAKER
LH Rear, Sub-Woofer, Wheel Arch / To: LA999999 		$176.06 1
18808H LR140903
SPEAKER
Rear LH, Sub-Woofer, Wheel Arch / From: MA000001 		$135.16 1
18808J LR146337
SPEAKER
External Sound Enhancement / From: MA000001 		$139.57 1
