Telematics (Telematics Control Unit)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Telematics (Telematics Control Unit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR083746 SPEAKER $47.98 To Order
Photo Part No Description Price (each) Stock
LR131947 MODULE - TELEMATICS CONTROL $1,015.20 To Order
LR129343 MODULE - TELEMATICS CONTROL $1,052.42 To Order
LR129344 MODULE - TELEMATICS CONTROL $1,019.87 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR078651 CARD - SIM $43.74 To Order
Photo Part No Description Price (each) Stock
LR089861 LITHIUM ION BATTERY $19.16 To Order
LR132077 BATTERY - ADDITIONAL $33.18 To Order
Photo Part No Description Price (each) Stock
LR141134 BRACKET - MODULE $39.26 To Order
LR091968 BRACKET - MODULE $21.27 To Order
View All

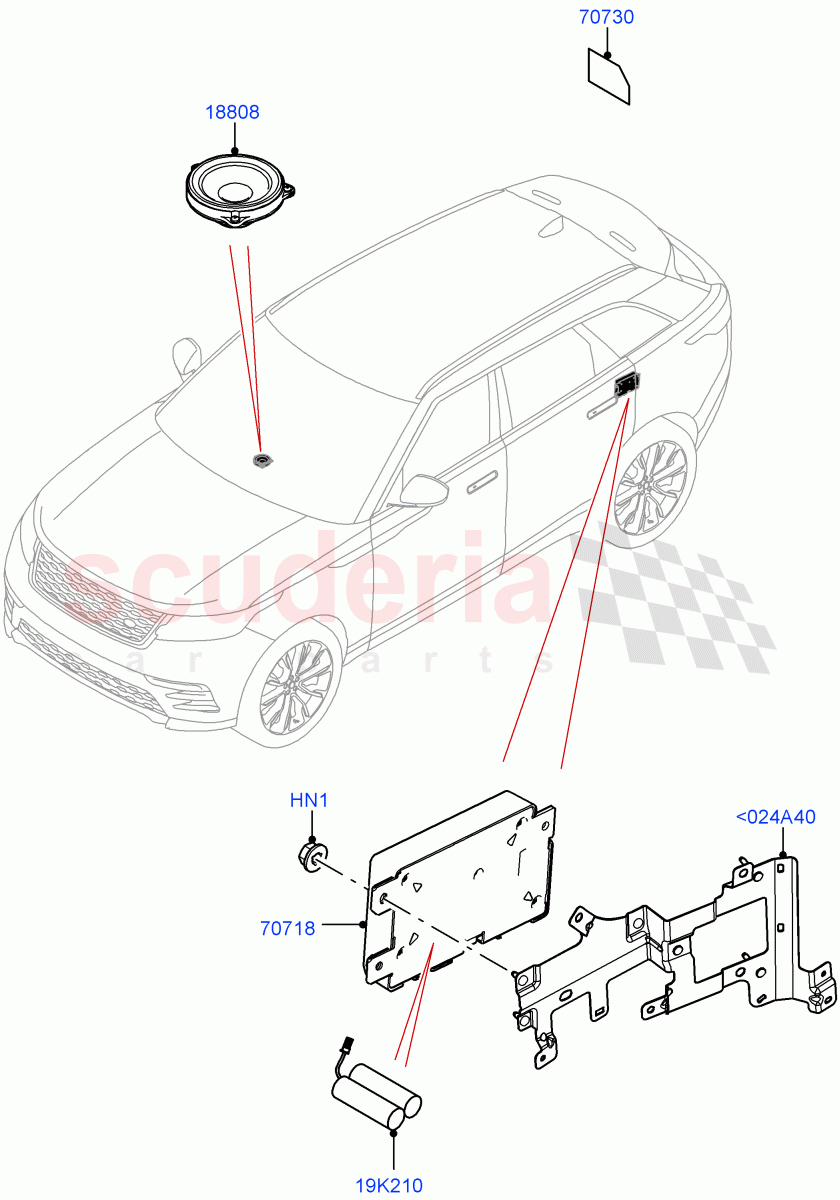

Telematics (Telematics Control Unit) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<024A40 LR141134
BRACKET - MODULE
From: MA000001 		$39.26 1
<024A40 LR091968
BRACKET - MODULE
To: LA999999 		$21.27 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6, Telematics Control Unit
IN STOCK 		$1.46 3
19K210 LR089861
LITHIUM ION BATTERY
Telematics Control Unit / To: LA999999 		$19.16 1
19K210 LR132077
BATTERY - ADDITIONAL
Telematics Control Unit / From: MA000001 		$33.18 1
18808 LR083746
SPEAKER
SOS / Assistance Call / Located In Instrument Panel 		$47.98 1
70718 LR131947
MODULE - TELEMATICS CONTROL
SOS / Assistance Call, TCU Module - ROW / From: MA000001 / To: MA320666 		$1,015.20 1
70718 LR129343
MODULE - TELEMATICS CONTROL
Less Emergency Call Button, TCU Module - ROW / From: MA000001 / To: MA320666 		$1,052.42 1
70718 LR129344
MODULE - TELEMATICS CONTROL
TCU Module - NAS / From: MA000001 / To: MA320666 		$1,019.87 1
70718 LR091247
MODULE - TELEMATICS CONTROL
Less Wi-Fi Hotspot, TCU Module - ROW / To: LA999999 		$971.56 1
70718 LR091248
MODULE - TELEMATICS CONTROL
3G Cellular Connectivity, TCU Module - ROW / To: LA999999 		$709.10 1
70718 LR091249
MODULE - TELEMATICS CONTROL
Less Wi-Fi Hotspot, TCU Module - NAS / To: LA999999 		$1,015.50 1
70718 LR091250
MODULE - TELEMATICS CONTROL
3G Cellular Connectivity, TCU Module - NAS / To: LA999999 		$1,027.84 1
70718 LR091251
MODULE - TELEMATICS CONTROL
Less Wi-Fi Hotspot, TCU Module - China / To: LA999999 		$1,130.01 1
70718 LR091252
MODULE - PHONE CONTROL
3G Cellular Connectivity, TCU Module - China / To: LA999999 		$725.97 1
70718 LR091253
MODULE - TELEMATICS CONTROL
Less Wi-Fi Hotspot, TCU Module - Brazil / To: LA999999 		$1,216.16 1
70718 LR091254
MODULE - TELEMATICS CONTROL
3G Cellular Connectivity, TCU Module - Brazil / To: LA999999 		$1,216.16 1
70718 LR091255
MODULE - TELEMATICS CONTROL
Less Wi-Fi Hotspot, TCU Module - Russia / To: LA999999 		$993.03 1
70718 LR091256
MODULE - TELEMATICS CONTROL
3G Cellular Connectivity, TCU Module - Russia / To: LA999999 		$759.75 1
70718 LR157171
MODULE - TELEMATICS CONTROL
SOS / Assistance Call, TCU Module - ROW / From: MA320667 		$1,101.47 1
70718 LR157182
MODULE - TELEMATICS CONTROL
Less Emergency Call Button, TCU Module - ROW / From: MA320667 		$1,128.64 1
70718 LR131948
MODULE - TELEMATICS CONTROL
SOS / Assistance Call, TCU Module - China / From: MA000001 		$959.36 1
70718 LR157184
MODULE - TELEMATICS CONTROL
TCU Module - NAS / From: MA320667 		$1,015.18 1
70718 LR144317
MODULE - TELEMATICS CONTROL
SOS / Assistance Call, TCU Module - Russia / From: MA000001 		$1,069.38 1
70718 LR143098
MODULE - TELEMATICS CONTROL
Less Emergency Call Button, TCU Module - Turkey / From: MA000001 		$1,020.10 1
70730 LR078651
CARD - SIM
3G Cellular Connectivity, SOS / Assistance Call, TCU Module - NAS / To: LA999999 		$43.74 1
