Turbocharger (Lh Side - Primary) (3.0 V6 Diesel)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0 V6 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105437 BOLT - HEX.HEAD $0.87 To Order
LR113014 BOLT - HEX.HEAD $0.99 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR023967 BOLT - BANJO $19.57 To Order
Photo Part No Description Price (each) Stock
LR123934 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
LR129336 RING - SEALING $5.16 To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
4408651 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.44 To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL $3.87 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $13.38 To Order
Photo Part No Description Price (each) Stock
LR091571 PIPE - OIL DRAIN $32.05 To Order
Photo Part No Description Price (each) Stock
LR091572 PIPE - OIL FEED $114.57 To Order
Photo Part No Description Price (each) Stock
LR091596 TURBOCHARGER $2,654.71 To Order
Photo Part No Description Price (each) Stock
LR091600 BRACKET - TURBOCHARGER $16.90 To Order
Photo Part No Description Price (each) Stock
LR101173 HOSE - WATER INLET $75.76 To Order
Photo Part No Description Price (each) Stock
LR062102 GASKET - TURBOCHARGER COOLING $8.00 To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD $62.11 To Order
Photo Part No Description Price (each) Stock
LR091594 HEAT SHIELD - TURBOCHARGER $25.80 To Order
LR112228 HEAT SHIELD - TURBOCHARGER $25.18 To Order
View All

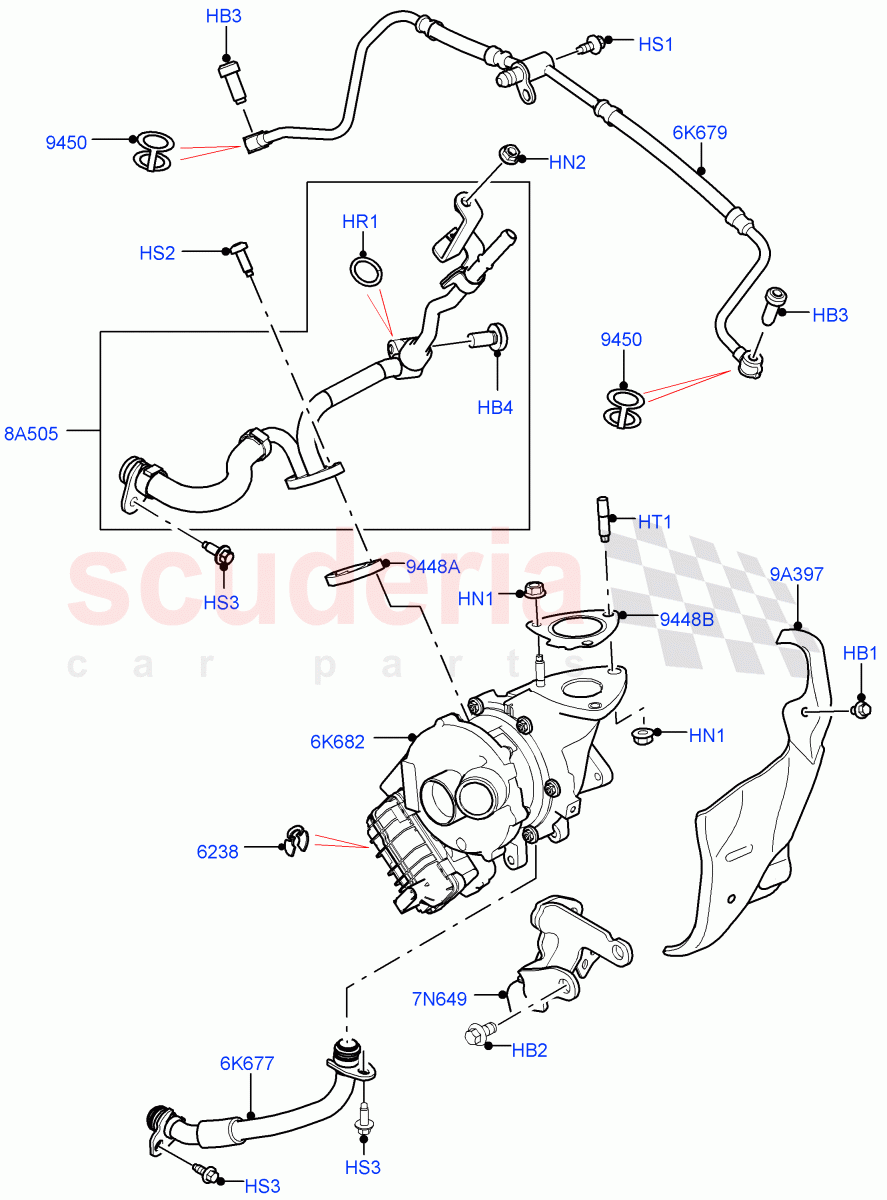

Turbocharger (LH Side - Primary) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / To: JA736257 		$0.87 2
HB1 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA736258 		$0.99 2
HB2 1419376
BOLT
Hexagonal Head, M8 X 16MM, Turbocharger Bracket 		$2.57 4
HB3 LR023967
BOLT - BANJO
Banjo Bolt, Hexagonal Head, Service Part May Differ From Production 		$19.57 2
HB4 LR123934
BOLT
M6 x 12MM, Torx 		$2.57 1
HN1 LR106277
NUT - HEX. - FLANGED
M8, Manifold To Turbocharger / To: JA757695
IN STOCK 		$2.17 3
HN1 LR106277
NUT - HEX. - FLANGED
M8, Manifold To Turbocharger / From: JA757696
IN STOCK 		$2.17 3
HN2 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.03 1
HR1 LR129336
RING - SEALING
11.2 X 1.8 		$5.16 1
HS1 LR000622
SCREW
M6 x 12MM 		$0.61 1
HS2 RYP500960
SCREW
M6 X 16MM, Torx 		$0.57 2
HS3 4408651
SCREW
M6 X 14MM 		$1.27 3
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM 		$4.44 2
6K677 LR091571
PIPE - OIL DRAIN 		$32.05 1
6K679 LR091572
PIPE - OIL FEED 		$114.57 1
6K682 LR091596
TURBOCHARGER
Primary 		$2,654.71 1
7N649 LR091600
BRACKET - TURBOCHARGER
Turbocharger 		$16.90 1
8A505 LR101173
HOSE - WATER INLET
Cooling For Turbocharger 		$75.76 1
9A397 LR091594
HEAT SHIELD - TURBOCHARGER
Turbocharger / To: JA763629 		$25.80 1
9A397 LR112228
HEAT SHIELD - TURBOCHARGER
Turbocharger / From: JA763630 		$25.18 1
6238 LR008722
CLIP - SPECIAL 		$3.87 2
9448A LR062102
GASKET - TURBOCHARGER COOLING
Cooling For Turbocharger 		$8.00 1
9448B LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger 		$62.11 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer 		$13.38 2
