Turbocharger (Rh Side - Secondary) (3.0 V6 Diesel)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary) (3.0 V6 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106126 BOLT $2.18 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR000628 BOLT $4.60 To Order
Photo Part No Description Price (each) Stock
LR105437 BOLT - HEX.HEAD $0.86 To Order
LR113014 BOLT - HEX.HEAD $0.98 To Order
Photo Part No Description Price (each) Stock
LR106170 BOLT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
LR006028 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD $61.96 To Order
Photo Part No Description Price (each) Stock
LR020589 SEAL - TURBINE SHUT OFF VALVE $59.62 To Order
Photo Part No Description Price (each) Stock
LR087351 HOSE - OIL RETURN $57.80 IN STOCK
Photo Part No Description Price (each) Stock
LR092676 TURBOCHARGER $2,053.47 To Order
LR116635 TURBOCHARGER $2,807.12 To Order
Photo Part No Description Price (each) Stock
LR091685 HOSE - VACUUM $226.15 To Order
Photo Part No Description Price (each) Stock
LR013235 GASKET - OIL RETURN HOSE $5.17 To Order
Photo Part No Description Price (each) Stock
LR092418 HOSE - COMPRESSED AIR $247.59 To Order
Photo Part No Description Price (each) Stock
LR093966 VALVE - SHUT-OFF $835.86 To Order
Photo Part No Description Price (each) Stock
LR092952 HOSE - VACUUM $56.39 To Order
Photo Part No Description Price (each) Stock
LR066430 KIT - TURBINE SHUT OFF VALVE $811.55 To Order
LR116634 KIT - TURBINE SHUT OFF VALVE $863.29 To Order
Photo Part No Description Price (each) Stock
LR093823 BRACKET - SUPPORT - SHUT OFF VALVE $20.00 To Order
Photo Part No Description Price (each) Stock
LR013485 BRACKET - TURBOCHARGER $21.50 To Order
Photo Part No Description Price (each) Stock
LR091592 HEAT SHIELD - TURBOCHARGER $181.72 To Order
Photo Part No Description Price (each) Stock
LR013602 HEAT SHIELD - TURBOCHARGER $29.60 To Order
View All

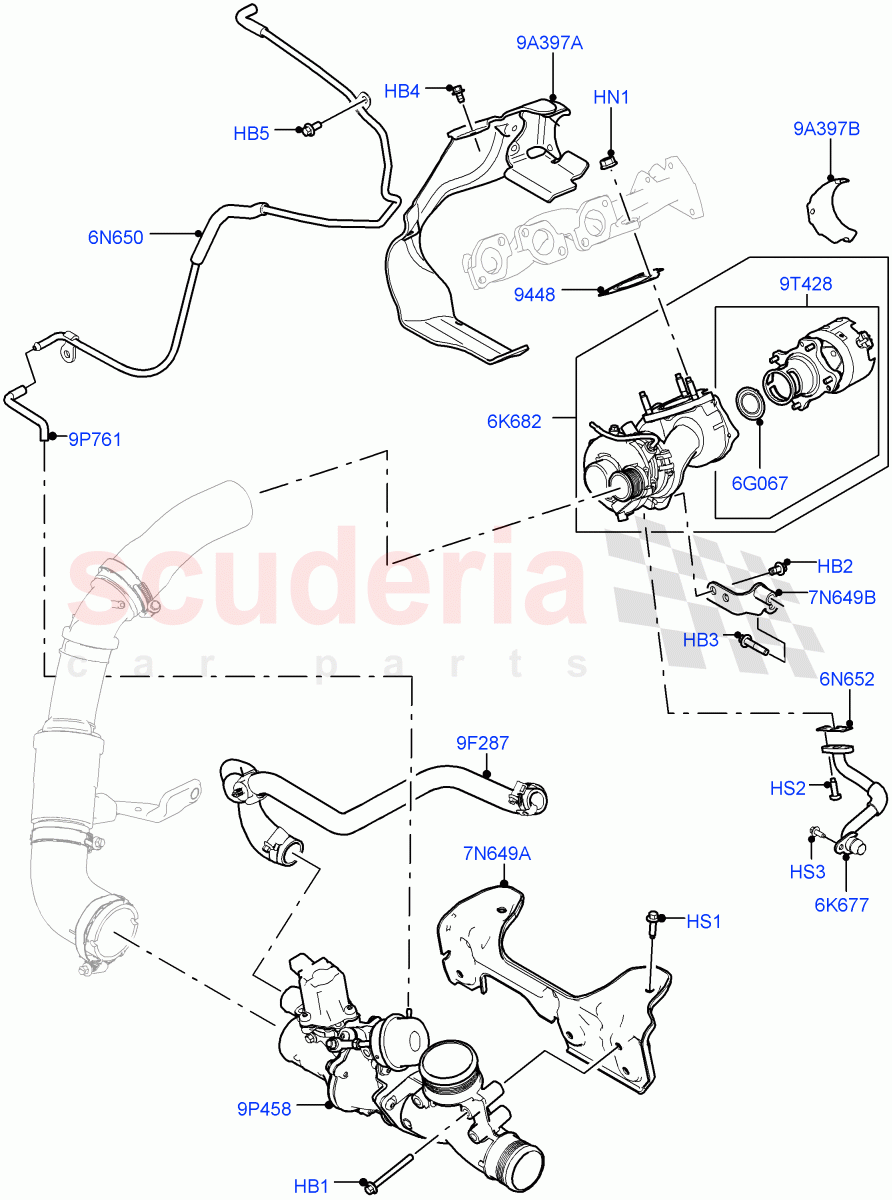

Turbocharger (RH Side - Secondary) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106126
BOLT
M6 x 60MM 		$2.18 4
HB2 1419376
BOLT
Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly 		$2.57 3
HB3 LR000628
BOLT
Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly 		$4.60 1
HB4 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / To: JA736257 		$0.86 3
HB4 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA736258 		$0.98 3
HB5 LR106170
BOLT
Hexagonal Head, M6 X 22
IN STOCK 		$1.24 2
HN1 LR106277
NUT - HEX. - FLANGED
M8, Turbocharger Inlet / To: JA757695
IN STOCK 		$2.17 3
HN1 LR106277
NUT - HEX. - FLANGED
M8, Turbocharger Inlet / From: JA757696
IN STOCK 		$2.17 3
HS1 RYG500220
SCREW
Bracket, Hexagonal Head, M6 X 20MM
IN STOCK 		$3.46 5
HS2 LR006028
SCREW
M6 X 16MM, Torx, Tube - Oil Return, Turbocharger 		$2.70 2
HS3 RYG500160
SCREW
Cylinder Block, Hexagonal Head, M6 X 14MM, Tube - Oil Return 		$0.62 1
6G067 LR020589
SEAL - TURBINE SHUT OFF VALVE
Repair Kit, Turbine Shut Off Valve 		$59.62 1
6K677 LR087351
HOSE - OIL RETURN
IN STOCK 		$57.80 1
6K682 LR092676
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / To: JA757695 		$2,053.47 1
6K682 LR116635
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: JA757696 		$2,807.12 1
6N650 LR091685
HOSE - VACUUM
Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control 		$226.15 1
6N652 LR013235
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper 		$5.17 1
7N649A LR093823
BRACKET - SUPPORT - SHUT OFF VALVE
Shut Off Valve 		$20.00 1
7N649B LR013485
BRACKET - TURBOCHARGER
Turbocharger 		$21.50 1
9A397A LR091592
HEAT SHIELD - TURBOCHARGER
RH, Manifold To Turbocharger 		$181.72 1
9A397B LR013602
HEAT SHIELD - TURBOCHARGER
RH, Turbocharger 		$29.60 1
9F287 LR092418
HOSE - COMPRESSED AIR
Compressed Air Recirculation, From Valve To Air Inlet Hose 		$247.59 1
9P458 LR093966
VALVE - SHUT-OFF
Compressed Air Recirculation, Shut Off Valve 		$835.86 1
9P761 LR092952
HOSE - VACUUM
Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control 		$56.39 1
9T428 LR066430
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / To: JA764615 		$811.55 1
9T428 LR116634
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: JA764616 		$863.29 1
9448 LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger 		$61.96 1
