Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Eu6 + Dpf Emissions, Eu6D Diesel + Dpf Emissions)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD $1.17 To Order
Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD $2.01 To Order
Photo Part No Description Price (each) Stock
WYH500060 NUT $3.88 To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.95 To Order
Photo Part No Description Price (each) Stock
LR092899 STUD $4.10 To Order
Photo Part No Description Price (each) Stock
LR092878 BRACKET - EXHAUST BRAKE SUPPORT $44.61 To Order
Photo Part No Description Price (each) Stock
LR078958 GASKET $18.55 To Order
Photo Part No Description Price (each) Stock
LR092879 PIPE - EXHAUST $306.87 To Order
Photo Part No Description Price (each) Stock
LR092890 PIPE - EXHAUST $536.95 To Order
LR105416 PIPE - EXHAUST $536.95 To Order
LR108579 PIPE - EXHAUST $536.95 To Order
Photo Part No Description Price (each) Stock
LR104929 INSULATOR - RUBBER $9.31 To Order
Photo Part No Description Price (each) Stock
LR092876 GASKET - EXHAUST PIPE $17.76 IN STOCK
Photo Part No Description Price (each) Stock
LR092867 PIPE - EXHAUST $212.49 To Order
Photo Part No Description Price (each) Stock
LR092892 CATALYST AND PARTICLE FILTER $3,002.28 To Order
LR110261 CATALYST AND PARTICLE FILTER $2,488.84 To Order
LR112142 CATALYST AND PARTICLE FILTER $2,655.75 To Order
Photo Part No Description Price (each) Stock
LR092881 CATALYTIC CONVERTER $3,896.49 To Order
LR106176 CATALYTIC CONVERTER $3,251.78 To Order
LR112140 CATALYTIC CONVERTER $2,235.59 To Order
Photo Part No Description Price (each) Stock
LR092898 FLANGE - EXHAUST PIPE $123.60 To Order
LR112857 PIPE - EXHAUST $114.43 To Order
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST $30.93 To Order
Photo Part No Description Price (each) Stock
LR094552 CLAMP - EXHAUST $41.43 To Order
Photo Part No Description Price (each) Stock
LR094554 CLAMP - EXHAUST $18.83 To Order
Photo Part No Description Price (each) Stock
LR087644 CLAMP - EXHAUST $22.60 To Order
Photo Part No Description Price (each) Stock
LR016621 GASKET - EXHAUST PIPE $20.62 To Order
Photo Part No Description Price (each) Stock
LR094550 GASKET - EXHAUST PIPE $6.66 To Order
Photo Part No Description Price (each) Stock
LR092866 BRACKET - EXHAUST PIPE MOUNTING $51.90 To Order
Photo Part No Description Price (each) Stock
LR094548 BRACKET - EXHAUST PIPE MOUNTING $48.12 To Order
Photo Part No Description Price (each) Stock
LR107071 BELLY BAND BRACKET - EXHAUST $73.08 To Order
Photo Part No Description Price (each) Stock
LR094549 TUBE - EXHAUST PRESSURE $37.43 To Order
Photo Part No Description Price (each) Stock
LR094551 TUBE - EXHAUST PRESSURE $36.78 To Order
View All

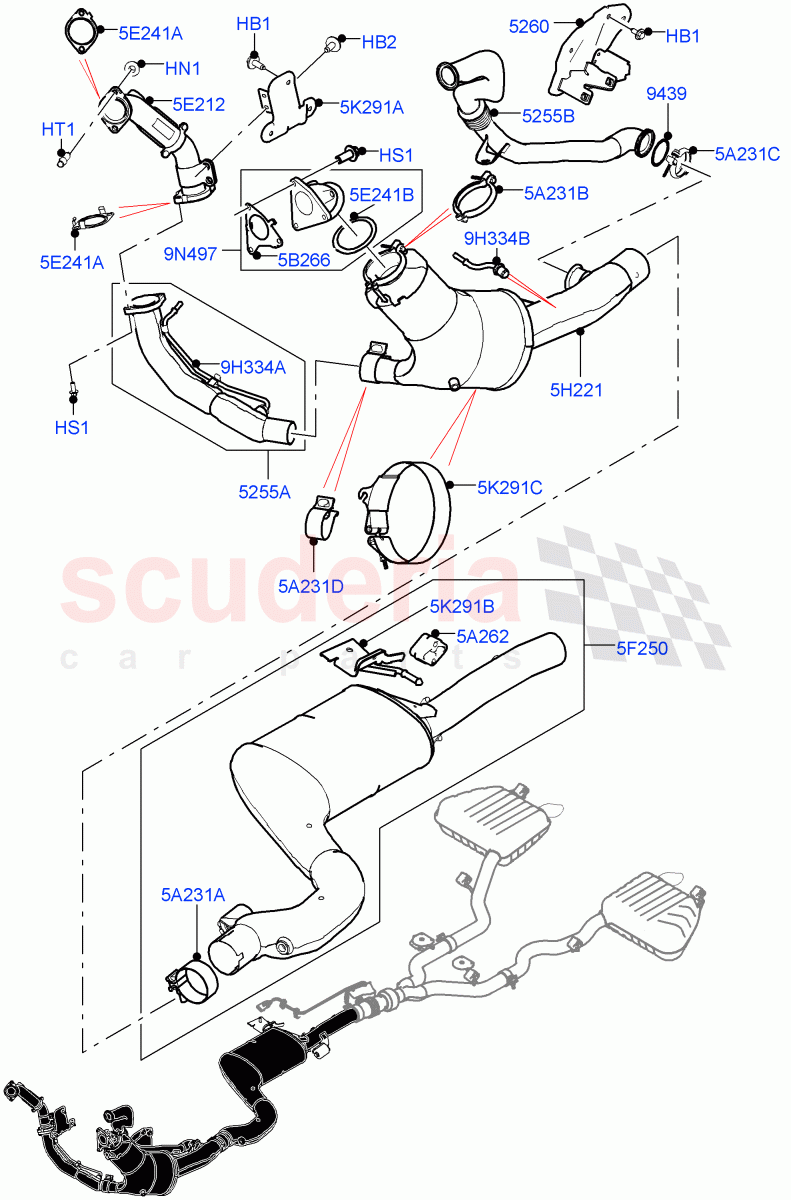

Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Bracket, Hexagonal Head, M8 X 21MM, To Transmission 		$1.17 8
HB2 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM 		$2.01 2
HN1 WYH500060
NUT
M8 		$3.88 2
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM 		$2.95 5
HT1 LR092899
STUD 		$4.10 2
5A231A LR036441
CLAMP - EXHAUST
70MM 		$30.93 1
5A231B LR094552
CLAMP - EXHAUST
Upper 		$41.43 1
5A231C LR094554
CLAMP - EXHAUST
EGR Inlet 		$18.83 1
5A231D LR087644
CLAMP - EXHAUST
45MM, RH Side 		$22.60 1
5A262 LR104929
INSULATOR - RUBBER 		$9.31 1
5B266 LR092876
GASKET - EXHAUST PIPE
Turbocharger
IN STOCK 		$17.76 1
5E212 LR092867
PIPE - EXHAUST
RH 		$212.49 1
5E241A LR016621
GASKET - EXHAUST PIPE
RH 		$20.62 2
5E241B LR094550
GASKET - EXHAUST PIPE
LH 		$6.66 1
5F250 LR092892
CATALYST AND PARTICLE FILTER
To: JA742992 		$3,002.28 1
5F250 LR110261
CATALYST AND PARTICLE FILTER
EU6 + DPF Emissions / From: JA742993 / To: JA999999 		$2,488.84 1
5F250 LR112142
CATALYST AND PARTICLE FILTER
EU6D Diesel + DPF Emissions / From: KA000001 		$2,655.75 1
5H221 LR092881
CATALYTIC CONVERTER
Before Replacement Of Part, Please Follow The Weld Process As Per TOPIx Ref 309-00C - D&T of DPF / To: JA738802 		$3,896.49 1
5H221 LR106176
CATALYTIC CONVERTER
EU6 + DPF Emissions / From: JA738803 / To: JA999999 		$3,251.78 1
5H221 LR112140
CATALYTIC CONVERTER
EU6D Diesel + DPF Emissions / From: KA000001 		$2,235.59 1
5K291A LR092866
BRACKET - EXHAUST PIPE MOUNTING
RH, To Transmission 		$51.90 1
5K291B LR094548
BRACKET - EXHAUST PIPE MOUNTING 		$48.12 1
5K291C LR107071
BELLY BAND BRACKET - EXHAUST 		$73.08 1
9H334A LR094549
TUBE - EXHAUST PRESSURE
Pre DPF 		$37.43 1
9H334B LR094551
TUBE - EXHAUST PRESSURE
Post DPF 		$36.78 1
9N497 LR092898
FLANGE - EXHAUST PIPE
EU6 + DPF Emissions / To: JA999999 		$123.60 1
9N497 LR112857
PIPE - EXHAUST
EU6D Diesel + DPF Emissions / From: KA000001 		$114.43 1
5255A LR092879
PIPE - EXHAUST
Crossover 		$306.87 1
5255B LR092890
PIPE - EXHAUST
EGR Inlet / To: JA710151 		$536.95 1
5255B LR105416
PIPE - EXHAUST
EGR Inlet / From: JA710152 / To: JA768745 		$536.95 1
5255B LR108579
PIPE - EXHAUST
EGR Inlet / From: JA768746 		$536.95 1
5260 LR092878
BRACKET - EXHAUST BRAKE SUPPORT
LH, To Transmission 		$44.61 1
9439 LR078958
GASKET
LH, EGR Inlet 		$18.55 1
