Name: Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMKA000001)
Rating: 4.2 (1 reviews)

Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V)...

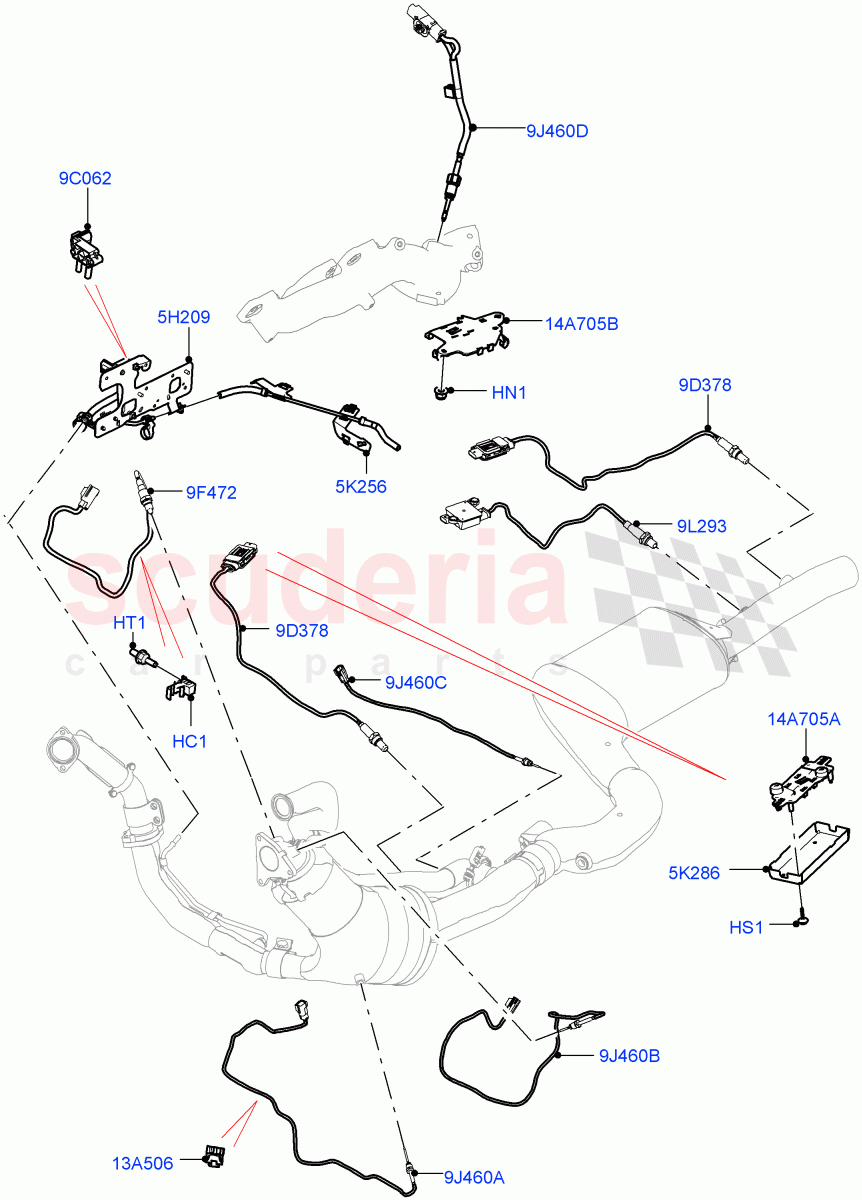

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123839	CLIP - SINGLE	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR035842	SCREW	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110225	STUD	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091874	SENSOR - DIFFERENTIAL PRESSURE	$172.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091878	PIPE - CONNECTING	$146.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113120	SHIELD - PROTECTION	$16.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	$159.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113119	SENSOR - NOX TRAP TEMPERATURE	$628.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110467	SENSOR - HEGO	$333.13	To Order
	LR137512	SENSOR - HEGO	$294.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146855	SENSOR - PARTICULATE MATTER DETECT.	$353.74	IN STOCK
	LR146855	SENSOR - PARTICULATE MATTER DETECT.	$353.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091863	SENSOR - EXHAUST GAS - TEMPERATURE	$157.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113118	SENSOR - EXHAUST GAS - TEMPERATURE	$152.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091864	SENSOR - EXHAUST GAS - TEMPERATURE	$157.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	$155.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108541	BRACKET - SENSOR MOUNTING	$13.58	To Order
	LR122715	BRACKET - SENSOR MOUNTING	$13.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108544	BRACKET - SENSOR MOUNTING	$13.47	To Order
	LR122817	BRACKET - SENSOR MOUNTING	$13.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR123839	CLIP - SINGLE	LR123839 CLIP - SINGLE From: KA000001	$1.37	1
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$0.68	5
HS1	LR035842	SCREW	LR035842 SCREW 4 X 16MM, Heatshield, NOX - Sensor, Torx / From: KA000001	$1.79	2
HT1	LR110225	STUD	LR110225 STUD From: KA000001	$2.08	1
5H209	LR091874	SENSOR - DIFFERENTIAL PRESSURE	LR091874 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure, Includes Bracket / From: KA000001	$172.42	1
5K256	LR091878	PIPE - CONNECTING	LR091878 PIPE - CONNECTING Pressure Sensor / From: KA000001	$146.79	1
5K286	LR113120	SHIELD - PROTECTION	LR113120 SHIELD - PROTECTION Front, NOX - Sensor / From: KA000001	$16.71	1
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: KA000001	$159.58	1
9D378	LR113119	SENSOR - NOX TRAP TEMPERATURE	LR113119 SENSOR - NOX TRAP TEMPERATURE From: KA000001	$628.46	2
9F472	LR110467	SENSOR - HEGO	LR110467 SENSOR - HEGO Hego Sensor / From: KA000001 / To: LA245196	$333.13	1
9F472	LR137512	SENSOR - HEGO	LR137512 SENSOR - HEGO Hego Sensor / From: LA245197	$294.37	1
9J460A	LR091863	SENSOR - EXHAUST GAS - TEMPERATURE	LR091863 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Lower / From: KA000001	$157.94	1
9J460B	LR113118	SENSOR - EXHAUST GAS - TEMPERATURE	LR113118 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Upper / From: KA000001	$152.18	1
9J460C	LR091864	SENSOR - EXHAUST GAS - TEMPERATURE	LR091864 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Rear / From: KA000001	$157.94	1
9J460D	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	LR062053 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Manifold / From: KA000001	$155.22	1
9L293	LR146855	SENSOR - PARTICULATE MATTER DETECT. IN STOCK	LR146855 SENSOR - PARTICULATE MATTER DETECT. Behind The SCR Catalyst / From: KA000001 / To: LA286970 IN STOCK	$353.74	1
9L293	LR146855	SENSOR - PARTICULATE MATTER DETECT. IN STOCK	LR146855 SENSOR - PARTICULATE MATTER DETECT. Behind The SCR Catalyst / From: LA286971 IN STOCK	$353.74	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: KA000001 IN STOCK	$0.79	6
14A705A	LR108541	BRACKET - SENSOR MOUNTING	LR108541 BRACKET - SENSOR MOUNTING Front, NOX - Sensor / From: KA000001 / To: KA793682	$13.58	1
14A705A	LR122715	BRACKET - SENSOR MOUNTING	LR122715 BRACKET - SENSOR MOUNTING Front, NOX - Sensor / From: KA793683	$13.62	1
14A705B	LR108544	BRACKET - SENSOR MOUNTING	LR108544 BRACKET - SENSOR MOUNTING Rear / From: KA000001 / To: KA786778	$13.47	1
14A705B	LR122817	BRACKET - SENSOR MOUNTING	LR122817 BRACKET - SENSOR MOUNTING Rear / From: KA786779	$13.62	1

Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, Eu6D Diesel + Dpf Emissions) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V)...
