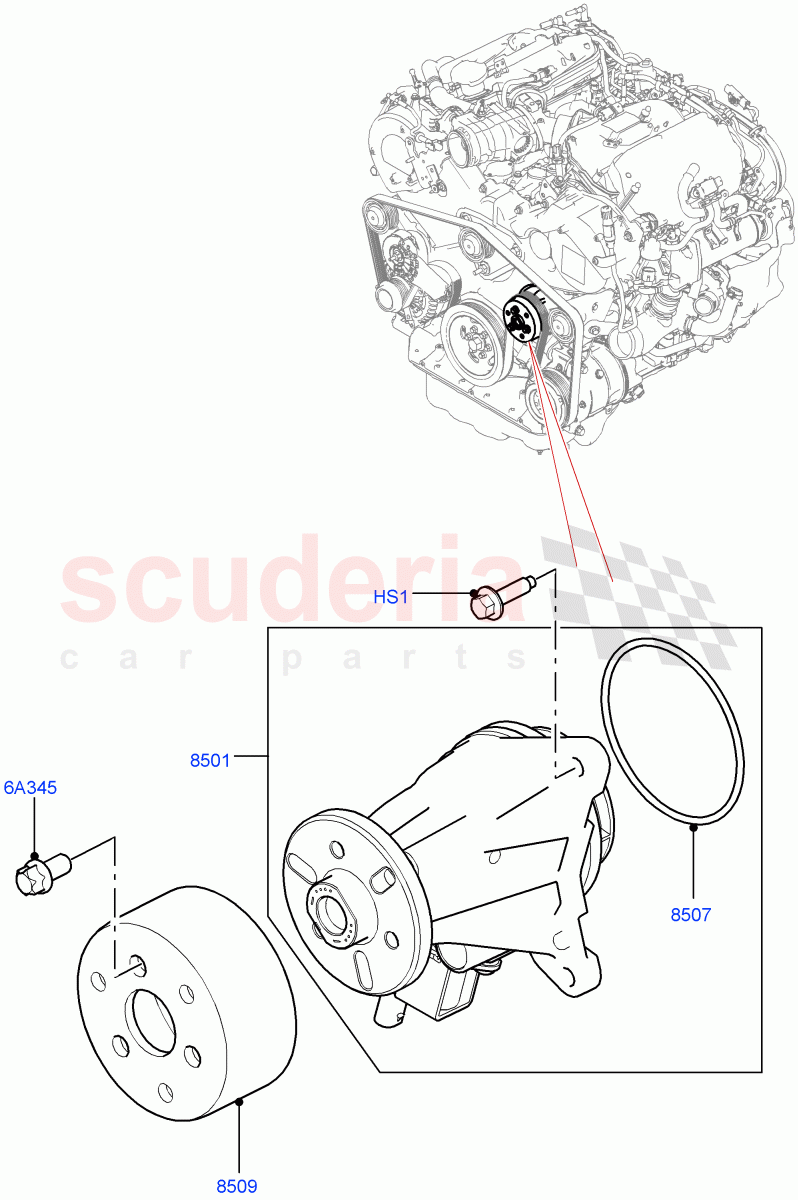

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR089625	PUMP - WATER	$432.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR079619	GASKET - WATER PUMP	$16.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071880	PULLEY - WATER PUMP	$20.17	To Order

Photo	Part No	Description	Price (each)	Stock
	1406627	BOLT - HEX.HEAD	$1.92	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$3.47	3
6A345	1406627	BOLT - HEX.HEAD IN STOCK	1406627 BOLT - HEX.HEAD M8 X 14MM, Pulley, Water Pump IN STOCK	$1.92	3
8501	LR089625	PUMP - WATER IN STOCK	LR089625 PUMP - WATER IN STOCK	$432.07	1
8507	LR079619	GASKET - WATER PUMP IN STOCK	LR079619 GASKET - WATER PUMP IN STOCK	$16.10	1
8509	LR071880	PULLEY - WATER PUMP	LR071880 PULLEY - WATER PUMP	$20.17	1
