Cooling System Pipes And Hoses (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (3.0 V6 D Gen2 Twin Turbo)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
BTR2985 CLIP $1.16 IN STOCK
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.12 To Order
Photo Part No Description Price (each) Stock
LR091624 HOSE - WATER $33.08 To Order
LR119472 HOSE - WATER $33.21 To Order
Photo Part No Description Price (each) Stock
LR091816 HOSE - WATER $195.57 To Order
Photo Part No Description Price (each) Stock
LR091831 HOSE - RADIATOR $72.11 To Order
Photo Part No Description Price (each) Stock
LR091896 HOSE - RADIATOR $126.43 To Order
Photo Part No Description Price (each) Stock
LR091781 HOSE - WATER $56.91 To Order
Photo Part No Description Price (each) Stock
LR091658 HOSE - RADIATOR $42.12 To Order
Photo Part No Description Price (each) Stock
LR091876 HOSE - WATER $61.34 To Order
LR122554 HOSE - WATER $50.45 To Order
Photo Part No Description Price (each) Stock
LR091523 HOSE - COOLING SYSTEM $41.11 To Order
Photo Part No Description Price (each) Stock
LR091832 HOSE - WATER $57.35 To Order
Photo Part No Description Price (each) Stock
LR091803 BRACKET - PUMP SUPPORT $19.08 To Order
Photo Part No Description Price (each) Stock
LR091811 HOSE - RADIATOR VENTILATION $34.01 To Order
Photo Part No Description Price (each) Stock
LR091889 HOSE - THERMOSTAT $63.84 To Order
Photo Part No Description Price (each) Stock
LR091900 HOSE - RADIATOR VENTILATION $60.95 To Order
Photo Part No Description Price (each) Stock
LR112656 BRACKET - COOLING HOSE $21.42 To Order
View All

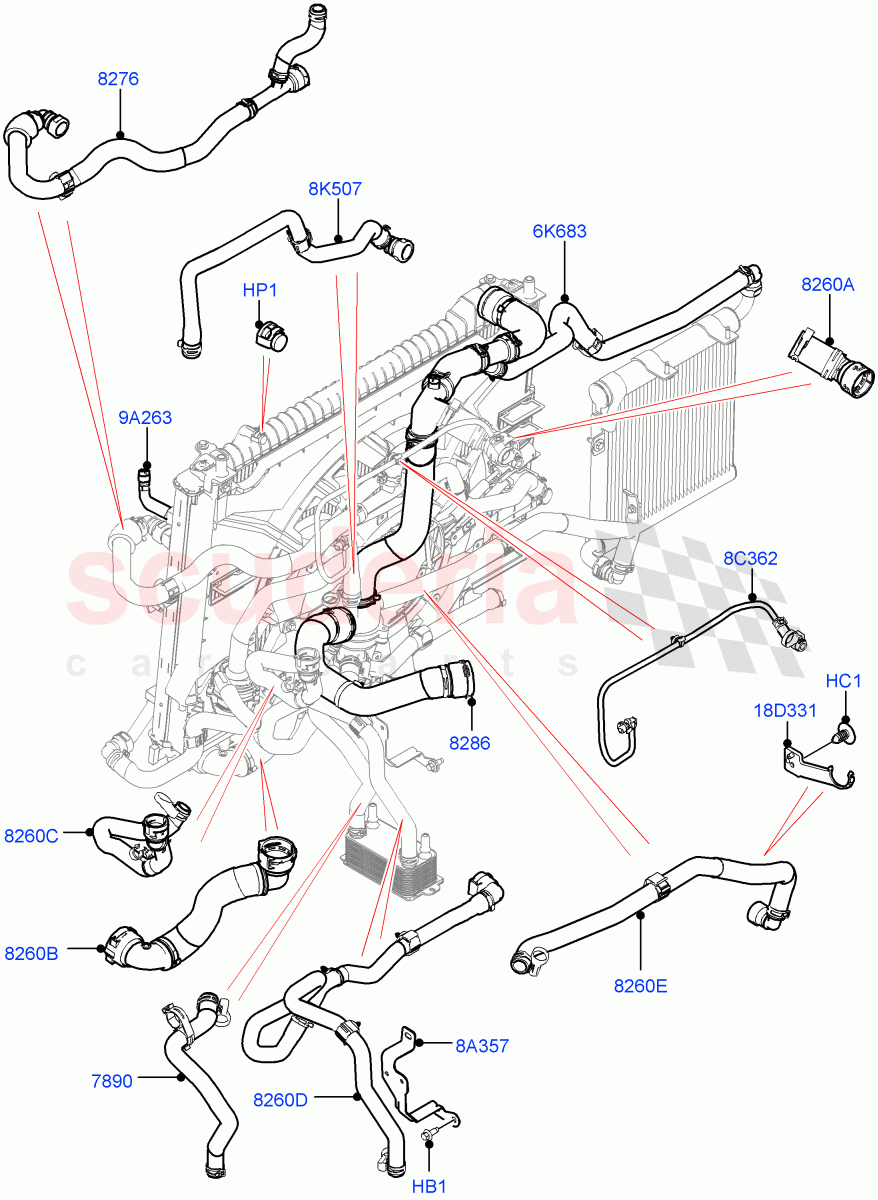

Cooling System Pipes And Hoses (3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM 		$0.67 1
HC1 BTR2985
CLIP
6.5 x 6, Push Pin
IN STOCK 		$1.16 1
HP1 LR011038
PLUG - BLANKING
Blanking 		$5.12 1
6K683 LR091896
HOSE - RADIATOR
Primary, Radiator, Upper 		$126.43 1
8A357 LR091803
BRACKET - PUMP SUPPORT 		$19.08 1
8C362 LR091811
HOSE - RADIATOR VENTILATION
To Expansion Tank 		$34.01 1
8K507 LR091889
HOSE - THERMOSTAT
With Ptc Heater / To Thermostat 		$63.84 1
9A263 LR091900
HOSE - RADIATOR VENTILATION
With Bleed Hose 		$60.95 1
18D331 LR112656
BRACKET - COOLING HOSE 		$21.42 1
7890 LR091624
HOSE - WATER
To: KA793682 		$33.08 1
7890 LR119472
HOSE - WATER
From: KA793683 		$33.21 1
8260A LR091781
HOSE - WATER
Radiator, Upper 		$56.91 1
8260B LR091658
HOSE - RADIATOR
Lower, Radiator 		$42.12 1
8260C LR091876
HOSE - WATER
Water Charge Air Cooler / To: KA797719 		$61.34 1
8260C LR122554
HOSE - WATER
Water Charge Air Cooler / From: KA797720 		$50.45 1
8260D LR091523
HOSE - COOLING SYSTEM
From Transmission Oil Cooler To Radiator 		$41.11 1
8260E LR091832
HOSE - WATER
Auxiliary Radiator 		$57.35 1
8276 LR091816
HOSE - WATER
Intercooler Outlet 		$195.57 1
8286 LR091831
HOSE - RADIATOR
Lower, Radiator, Rear 		$72.11 1
