Fuel Tank & Related Parts (2.0L Aj200P Hi Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT $3.96 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.44 To Order
Photo Part No Description Price (each) Stock
LR000893 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR148054 SPACER $7.41 To Order
Photo Part No Description Price (each) Stock
LR141301 TANK - FUEL $1,613.10 To Order
Photo Part No Description Price (each) Stock
LR138720 CAP - FUEL TANK FILLER $39.29 To Order
Photo Part No Description Price (each) Stock
LR141344 PIPE - FUEL FILLER $229.07 To Order
Photo Part No Description Price (each) Stock
LR141626 HOSE - FILLER PIPE $237.11 To Order
Photo Part No Description Price (each) Stock
LR141267 TUBE - FUEL VAPOUR $59.12 To Order
Photo Part No Description Price (each) Stock
LR141263 STRAP - FUEL TANK $60.71 To Order
Photo Part No Description Price (each) Stock
LR141264 STRAP - FUEL TANK $59.83 To Order
Photo Part No Description Price (each) Stock
LR141265 SHIELD - FUEL TANK $45.52 To Order
Photo Part No Description Price (each) Stock
LR141302 TUBE - FUEL RETURN $95.91 To Order
Photo Part No Description Price (each) Stock
LR093968 RETAINER $4.05 To Order
Photo Part No Description Price (each) Stock
LR141309 TUBE - FUEL VAPOUR $81.08 To Order
Photo Part No Description Price (each) Stock
LR141308 FOAM PAD - ENERGY ABSORBING $19.05 To Order
Photo Part No Description Price (each) Stock
LR141306 FOAM PAD - ENERGY ABSORBING $19.05 To Order
Photo Part No Description Price (each) Stock
LR141303 FOAM PAD - ENERGY ABSORBING $18.86 To Order
Photo Part No Description Price (each) Stock
LR141305 FOAM PAD - ENERGY ABSORBING $18.86 To Order
View All

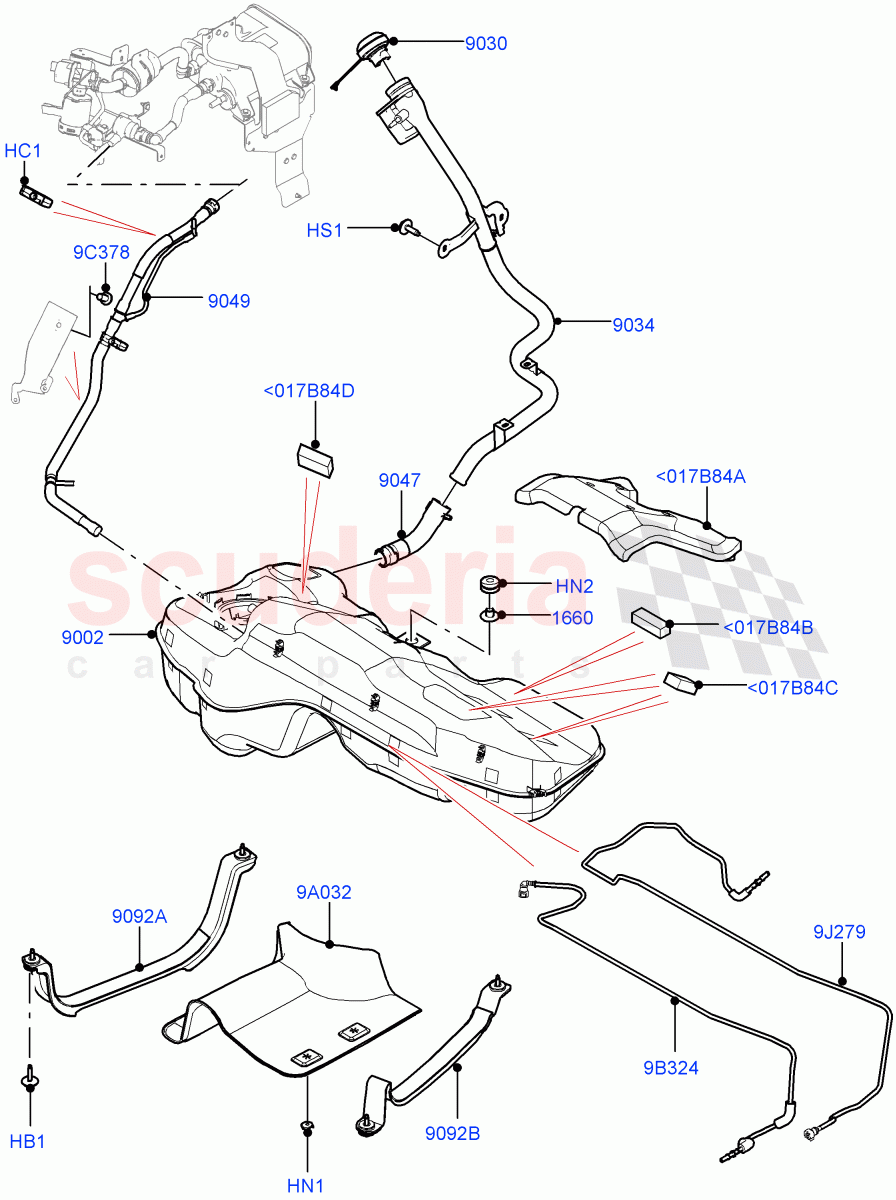

Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84A LR141308
FOAM PAD - ENERGY ABSORBING
Main / From: MA000001 		$19.05 1
<017B84B LR141306
FOAM PAD - ENERGY ABSORBING
LH Rear / From: MA000001 		$19.05 1
<017B84C LR141303
FOAM PAD - ENERGY ABSORBING
LH Front / From: MA000001 		$18.86 2
<017B84D LR141305
FOAM PAD - ENERGY ABSORBING
RH / From: MA000001 		$18.86 1
HB1 LR088949
BOLT
M6 X 40MM / From: MA000001 		$3.96 4
HC1 LR060351
CLIP - HOSE
Vapour Line / From: MA000001 		$4.44 2
HN1 LR000893
NUT
"Spring", Heat Shield / From: MA000001
IN STOCK 		$1.04 4
HN2 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: MA000001 		$0.67 1
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		$1.05 2
9A032 LR141265
SHIELD - FUEL TANK
Support / From: MA000001 		$45.52 1
9B324 LR141302
TUBE - FUEL RETURN
Feed / From: MA000001 		$95.91 1
9C378 LR093968
RETAINER
Bracket, Vapour Line / From: MA000001 		$4.05 1
9J279 LR141309
TUBE - FUEL VAPOUR
Ventilation Tube / From: MA000001 		$81.08 1
1660 LR148054
SPACER
From: MA000001 		$7.41 1
9002 LR141301
TANK - FUEL
From: MA000001 		$1,613.10 1
9030 LR138720
CAP - FUEL TANK FILLER
From: MA000001 		$39.29 1
9034 LR141344
PIPE - FUEL FILLER
From: MA000001 		$229.07 1
9047 LR141626
HOSE - FILLER PIPE
Connects To Fuel Tank / From: MA000001 		$237.11 1
9049 LR141267
TUBE - FUEL VAPOUR
Fuel Vapor Hose / From: MA000001 		$59.12 1
9092A LR141263
STRAP - FUEL TANK
RH / From: MA000001 		$60.71 1
9092B LR141264
STRAP - FUEL TANK
LH / From: MA000001 		$59.83 1
