Fuel Tank & Related Parts (2.0L I4 High Dohc Aj200 Petrol, Pet Tank W/O Leak Det - Std Filter, 2.0L...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Pet Tank W/O Leak Det - Std Filter, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.54 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.43 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.95 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.70 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
LR000893 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR092901 TANK - FUEL $1,097.92 To Order
Photo Part No Description Price (each) Stock
LR053665 CAP - FUEL TANK FILLER $34.82 To Order
Photo Part No Description Price (each) Stock
LR093115 PIPE - FUEL FILLER $241.00 To Order
Photo Part No Description Price (each) Stock
LR093121 HOSE - FILLER PIPE $49.86 To Order
Photo Part No Description Price (each) Stock
LR095379 STRAP - FUEL TANK $59.69 To Order
Photo Part No Description Price (each) Stock
LR092966 SHIELD - FUEL TANK $66.31 To Order
Photo Part No Description Price (each) Stock
LR092962 TUBE - FUEL RETURN $40.70 To Order
Photo Part No Description Price (each) Stock
LR093968 RETAINER $4.05 To Order
Photo Part No Description Price (each) Stock
LR092999 TUBE - VENTILATION $52.20 To Order
Photo Part No Description Price (each) Stock
LR092974 TUBE - FUEL VAPOUR $98.22 To Order
Photo Part No Description Price (each) Stock
LR125431 FOAM PAD - ENERGY ABSORBING $15.98 To Order
Photo Part No Description Price (each) Stock
LR133219 FOAM PAD - ENERGY ABSORBING $9.41 To Order
View All

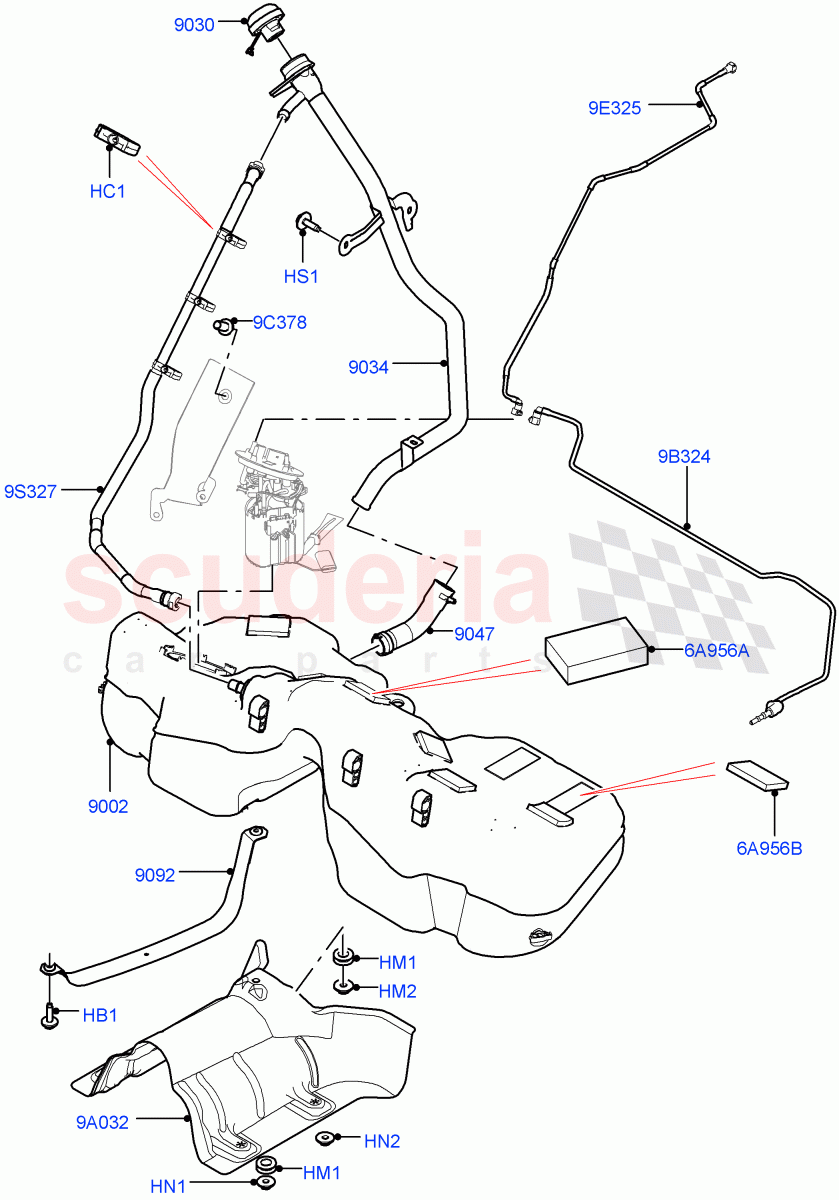

Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Pet Tank W/O Leak Det - Std Filter, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) TOJA999999) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR078393
BOLT AND WASHER - HEX.HEAD
M8 x 40MM, To Body 		$1.54 4
HC1 LR060351
CLIP - HOSE
Vapour Line 		$4.43 5
HM1 WYD000020
GROMMET 		$3.95 1
HM2 WYF000020
SPACER 		$3.70 1
HN1 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer 		$0.67 1
HN2 LR000893
NUT
"Spring", Heat Shield
IN STOCK 		$1.04 4
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM 		$1.05 2
6A956A LR125431
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 20mm 		$15.98 4
6A956B LR133219
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 35mm 		$9.41 6
9A032 LR092966
SHIELD - FUEL TANK 		$66.31 1
9B324 LR092962
TUBE - FUEL RETURN 		$40.70 1
9C378 LR093968
RETAINER
Bracket, Vapour Line 		$4.05 1
9E325 LR092999
TUBE - VENTILATION
Charcoal Cannister 		$52.20 1
9S327 LR092974
TUBE - FUEL VAPOUR 		$98.22 1
9002 LR092901
TANK - FUEL 		$1,097.92 1
9030 LR053665
CAP - FUEL TANK FILLER 		$34.82 1
9034 LR093115
PIPE - FUEL FILLER 		$241.00 1
9047 LR093121
HOSE - FILLER PIPE
Lower 		$49.86 1
9092 LR095379
STRAP - FUEL TANK 		$59.69 2
