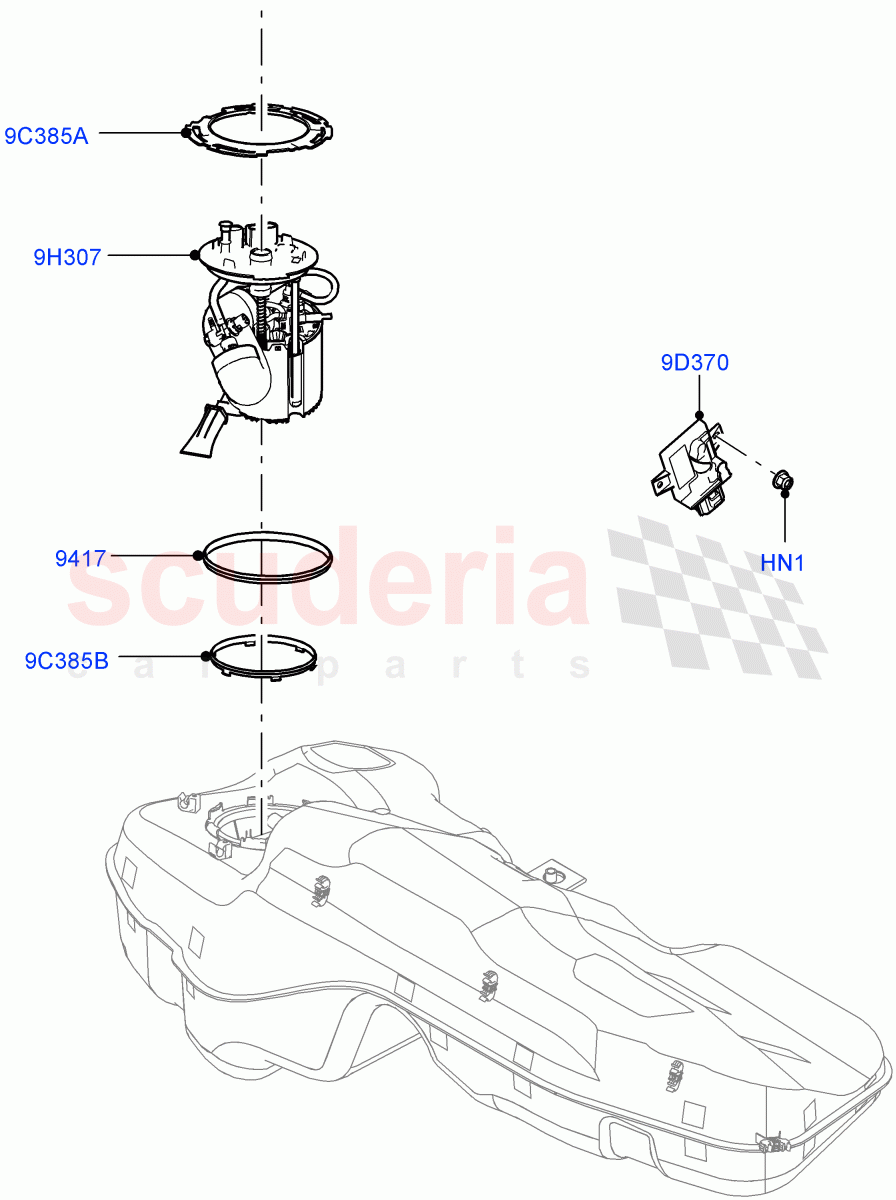

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR153984	CONTROL - FUEL PUMP DRIVE	$224.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141311	SENDER AND PUMP	$510.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139225	RING - RETAINING	$28.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135215	RING - RETAINING	$12.46	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001 IN STOCK	$0.68	2
9C385A	LR139225	RING - RETAINING	LR139225 RING - RETAINING Upper / From: MA000001	$28.64	1
9C385B	LR135215	RING - RETAINING	LR135215 RING - RETAINING Lower / From: MA000001	$12.46	1
9D370	LR153984	CONTROL - FUEL PUMP DRIVE	LR153984 CONTROL - FUEL PUMP DRIVE From: MA000001	$224.11	1
9H307	LR141311	SENDER AND PUMP	LR141311 SENDER AND PUMP From: MA000001	$510.40	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: MA000001 IN STOCK	$10.53	1
