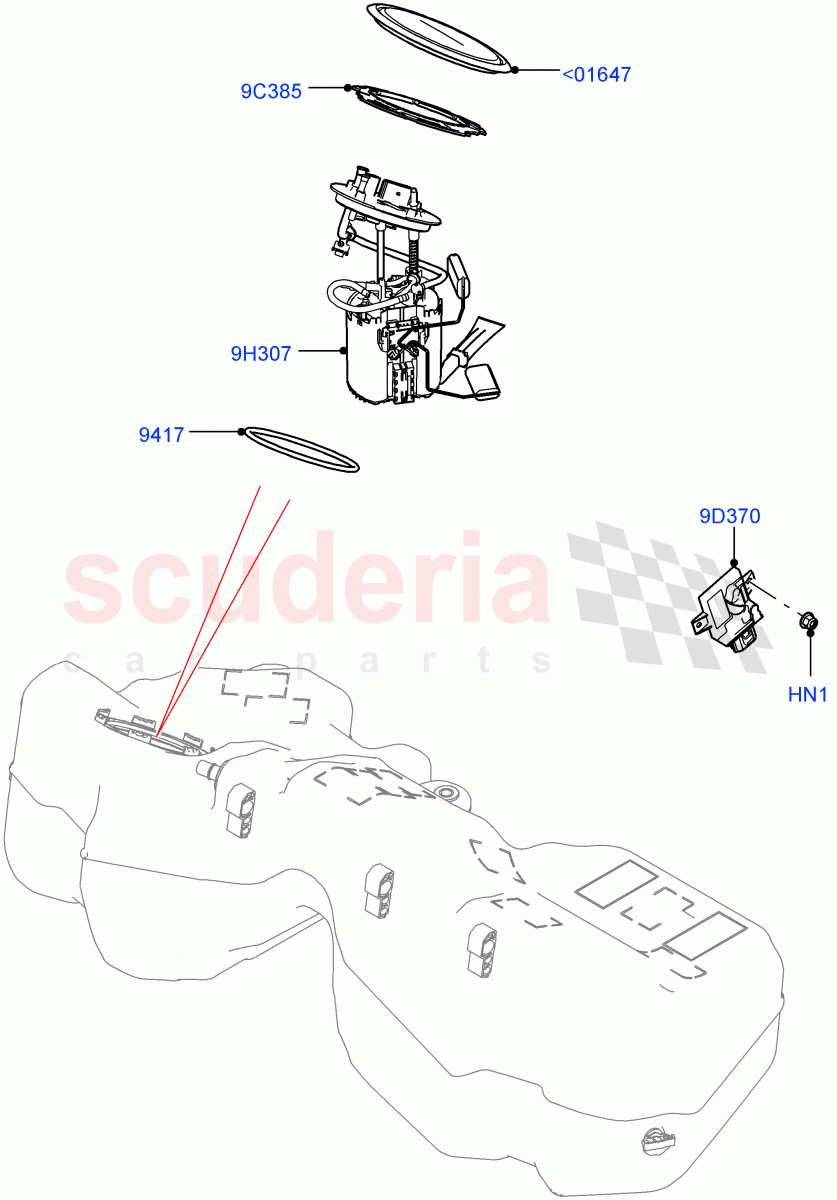

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	$26.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061062	PLUG - FLOOR PAN	$14.91	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01647	LR061062	PLUG - FLOOR PAN	LR061062 PLUG - FLOOR PAN Cover, Plug / From: KA000001	$14.91	1
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$0.68	2
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING From: KA000001	$26.99	1
9D370	LR172880	CONTROL - FUEL PUMP DRIVE	LR172880 CONTROL - FUEL PUMP DRIVE From: KA000001 / To: LA999999	$232.08	1
9D370	LR153984	CONTROL - FUEL PUMP DRIVE	LR153984 CONTROL - FUEL PUMP DRIVE From: MA000001	$224.23	1
9H307	LR117840	SENDER AND PUMP	LR117840 SENDER AND PUMP Fuel Tank-Petrol W/O Leak Detection / From: KA000001	$531.88	1
9H307	LR117839	SENDER AND PUMP	LR117839 SENDER AND PUMP Petrol Tank With Leak Detection / From: KA000001	$443.37	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: KA000001 IN STOCK	$10.54	1
