Fuel Tank & Related Parts (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.40 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.93 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.68 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.66 To Order
Photo Part No Description Price (each) Stock
LR000893 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR141756 STUD $1.88 To Order
Photo Part No Description Price (each) Stock
LR162741 TANK - FUEL $1,010.38 To Order
Photo Part No Description Price (each) Stock
LR138719 CAP - FUEL TANK FILLER $39.00 To Order
LR138861 CAP - FUEL TANK FILLER $39.00 To Order
Photo Part No Description Price (each) Stock
LR141343 PIPE - FUEL FILLER $234.14 To Order
LR141342 PIPE - FUEL FILLER $235.32 To Order
Photo Part No Description Price (each) Stock
LR093122 HOSE - FILLER PIPE $55.50 To Order
Photo Part No Description Price (each) Stock
LR141728 STRAP - FUEL TANK $62.17 To Order
Photo Part No Description Price (each) Stock
LR092966 SHIELD - FUEL TANK $65.90 To Order
Photo Part No Description Price (each) Stock
LR092958 TUBE - FUEL RETURN $61.96 To Order
Photo Part No Description Price (each) Stock
LR092962 TUBE - FUEL RETURN $40.45 To Order
Photo Part No Description Price (each) Stock
LR093968 RETAINER $4.02 To Order
Photo Part No Description Price (each) Stock
LR092974 TUBE - FUEL VAPOUR $97.62 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.23 To Order
Photo Part No Description Price (each) Stock
LR125431 FOAM PAD - ENERGY ABSORBING $15.89 To Order
Photo Part No Description Price (each) Stock
LR133219 FOAM PAD - ENERGY ABSORBING $9.35 To Order
View All

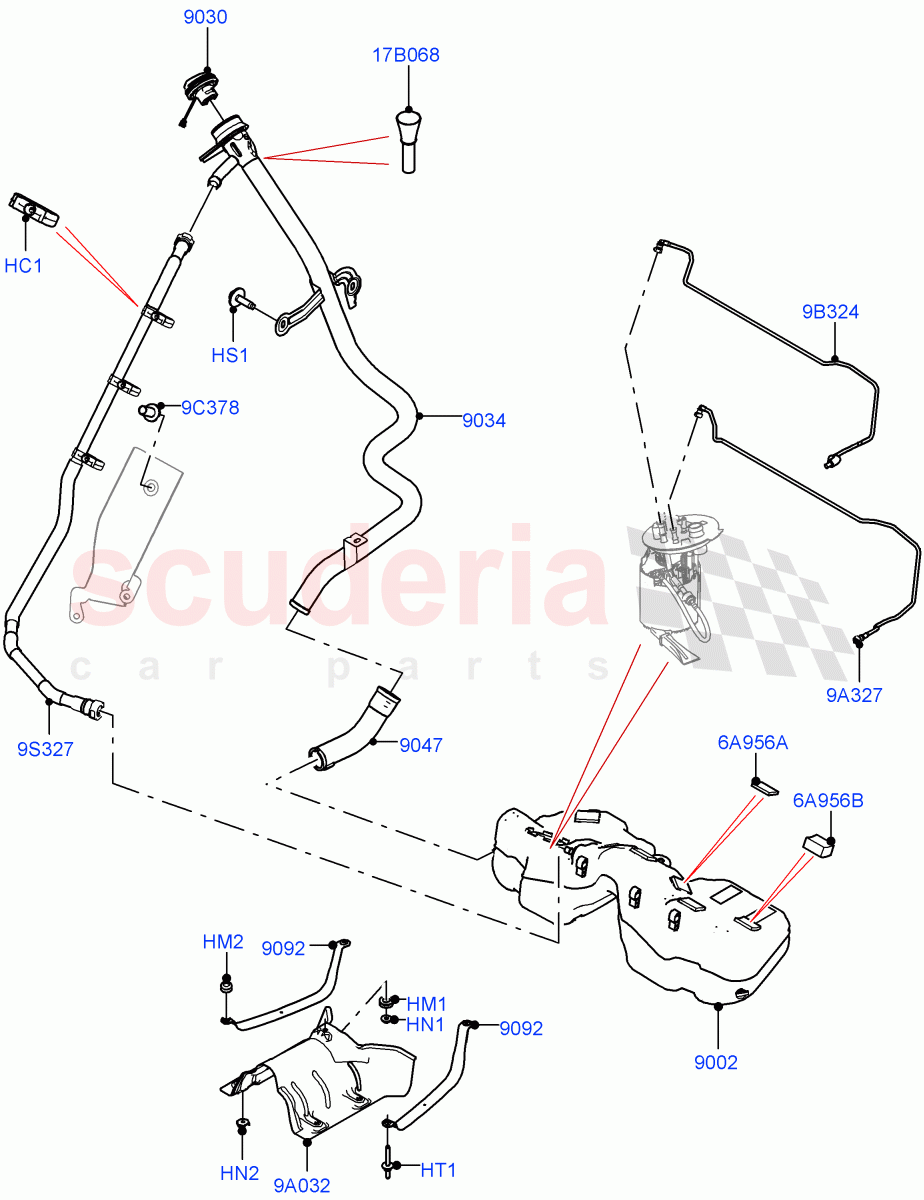

Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR060351
CLIP - HOSE
Vapour Line / From: MA000001 		$4.40 3
HM1 WYD000020
GROMMET
Insulator / From: MA000001 		$3.93 1
HM2 WYF000020
SPACER
Spacer / From: MA000001 		$3.68 4
HN1 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: MA000001 		$0.66 1
HN2 LR000893
NUT
"Spring", Heat Shield / From: MA000001
IN STOCK 		$1.03 4
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		$1.04 2
HT1 LR141756
STUD
Fuel Tank Strap / From: MA000001 		$1.88 4
6A956A LR125431
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 20mm / From: MA000001 		$15.89 4
6A956B LR133219
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 35mm / From: MA000001 		$9.35 6
9A032 LR092966
SHIELD - FUEL TANK
From: MA000001 		$65.90 1
9A327 LR092958
TUBE - FUEL RETURN
From: MA000001 		$61.96 1
9B324 LR092962
TUBE - FUEL RETURN
Return / From: MA000001 		$40.45 1
9C378 LR093968
RETAINER
Bracket, Vapour Line / From: MA000001 		$4.02 1
9S327 LR092974
TUBE - FUEL VAPOUR
From: MA000001 		$97.62 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: MA000001 		$6.23 1
9002 LR162741
TANK - FUEL
From: MA000001 		$1,010.38 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MA000001 		$39.00 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - All Nozzles / From: MA000001 		$39.00 1
9034 LR141343
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: MA000001 		$234.14 1
9034 LR141342
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: MA000001 		$235.32 1
9047 LR093122
HOSE - FILLER PIPE
Connects To Fuel Tank / From: MA000001 		$55.50 1
9092 LR141728
STRAP - FUEL TANK
RH/LH / From: MA000001 		$62.17 2
