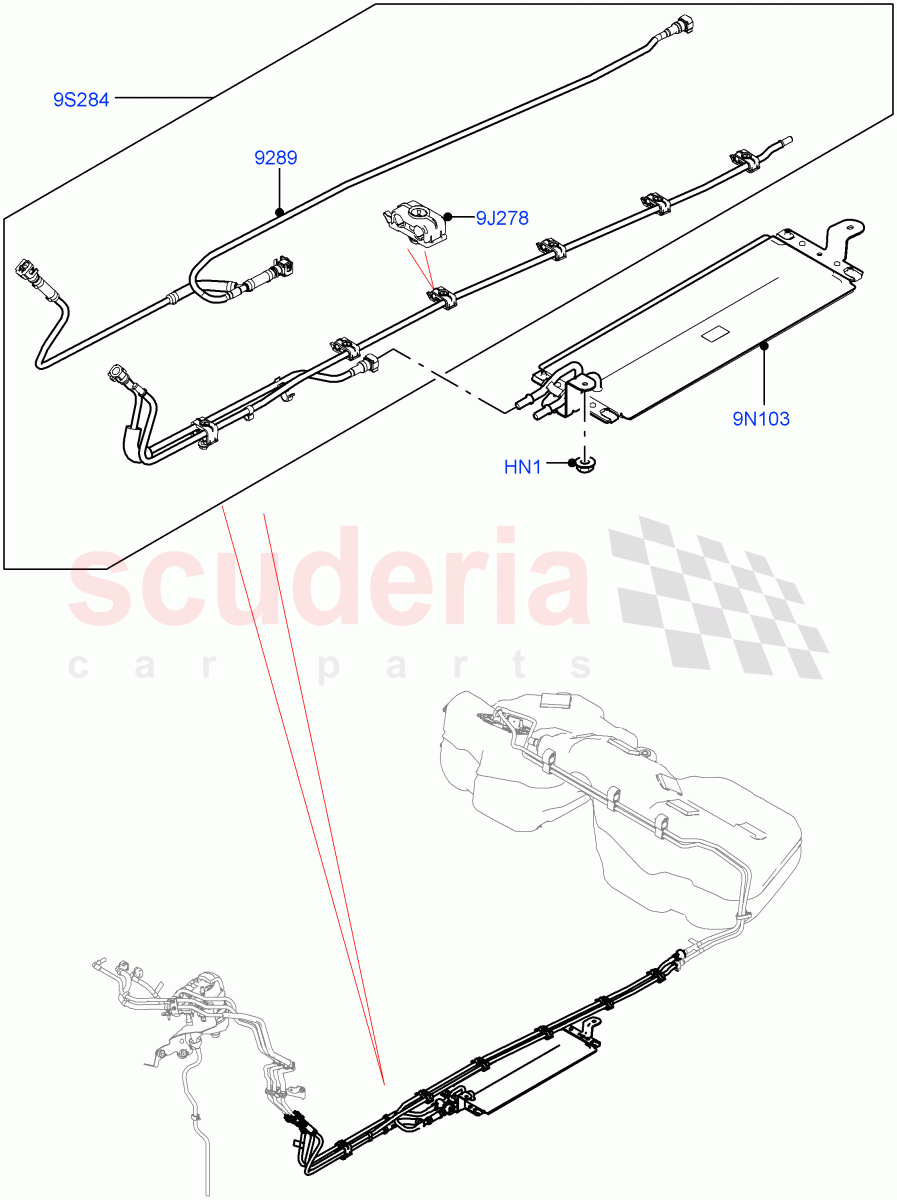

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR093040	TUBE - FUEL	$121.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105364	RETAINER - TUBE	$19.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134446	COOLER - FUEL	$715.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093106	TUBE - FUEL SUPPLY	$152.50	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001 IN STOCK	$1.47	2
9J278	LR105364	RETAINER - TUBE	LR105364 RETAINER - TUBE From: MA000001	$19.44	5
9N103	LR134446	COOLER - FUEL	LR134446 COOLER - FUEL From: MA000001	$715.90	1
9S284	LR093106	TUBE - FUEL SUPPLY	LR093106 TUBE - FUEL SUPPLY From: MA000001	$152.50	1
9289	LR093040	TUBE - FUEL	LR093040 TUBE - FUEL From: MA000001	$121.98	1
