Name: Front Exhaust System (2.0L AJ21D4 Diesel Mid, EU6D - Final (Diesel) Emission) ((V) FROMMA000001)
Rating: 4.7 (1 reviews)

Front Exhaust System (2.0L AJ21D4 Diesel Mid, EU6D - Final (Diesel) Emission) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Exhaust System (2.0L AJ21D4 Diesel Mid, EU6D - Final (Diesel) Emission) ((V) FROMMA000001)

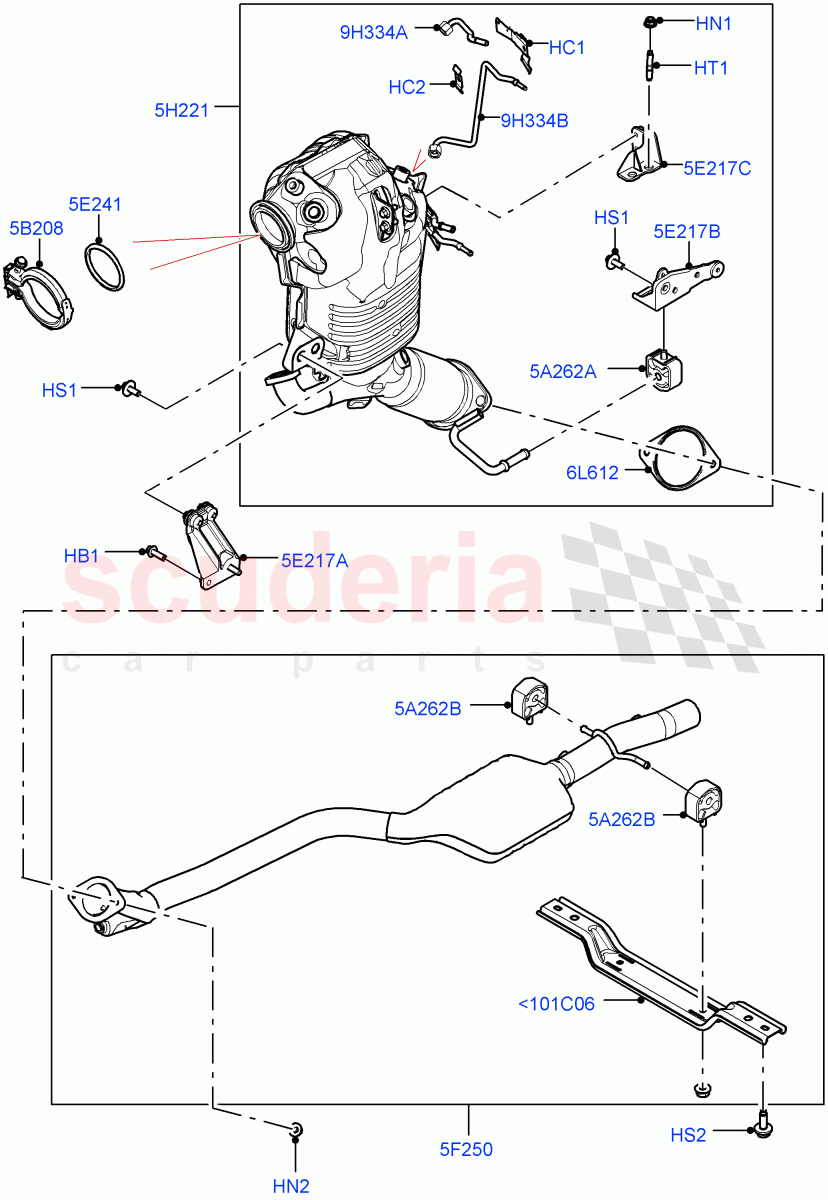

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR157887	CLIP - SPECIAL	$131.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157888	CLIP - SPECIAL	$123.16	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149652	SCREW AND WASHER	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141497	CLAMP - EXHAUST	$31.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$30.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141510	CATALYST AND PARTICLE FILTER	$1,918.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141517	CATALYTIC CONVERTER	$3,178.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157889	GASKET	$62.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134608	INSULATOR - RUBBER	$21.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$32.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141527	BRACKET - TURBOCHARGER	$96.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157882	BRACKET - EXHAUST	$98.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157884	BRACKET - EXHAUST	$98.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157885	TUBE - EXHAUST PRESSURE	$133.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157886	TUBE - EXHAUST PRESSURE	$128.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148149	REINFORCEMENT - REAR FLOOR PAN	$118.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<101C06	LR148149	REINFORCEMENT - REAR FLOOR PAN	LR148149 REINFORCEMENT - REAR FLOOR PAN From: MA000001	$118.46	1
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM, Turbocharger Bracket / From: MA000001 IN STOCK	$3.57	2
HC1	LR157887	CLIP - SPECIAL	LR157887 CLIP - SPECIAL From: MA000001	$131.16	1
HC2	LR157888	CLIP - SPECIAL	LR157888 CLIP - SPECIAL With Weld Nut / From: MA000001	$123.16	1
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8, Upper Bracket / From: MA000001 IN STOCK	$0.40	2
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8, Outlet / From: MA000001	$0.52	2
HS1	LR149652	SCREW AND WASHER	LR149652 SCREW AND WASHER Lower Bracket, M8 X 22MM / From: MA000001	$1.77	4
HS2	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM, To Body / From: MA000001	$1.39	4
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Upper Bracket / From: MA000001	$3.58	2
5A262A	LR134608	INSULATOR - RUBBER	LR134608 INSULATOR - RUBBER Front / From: MA000001	$21.75	1
5A262B	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER RH/LH / From: MA000001	$32.02	2
5B208	LR141497	CLAMP - EXHAUST	LR141497 CLAMP - EXHAUST Turbocharger Outlet / From: MA000001	$31.78	1
5E217A	LR141527	BRACKET - TURBOCHARGER	LR141527 BRACKET - TURBOCHARGER Turbocharger / From: MA000001	$96.09	1
5E217B	LR157882	BRACKET - EXHAUST	LR157882 BRACKET - EXHAUST To Transmission / From: MA000001	$98.70	1
5E217C	LR157884	BRACKET - EXHAUST	LR157884 BRACKET - EXHAUST Side / From: MA000001	$98.70	1
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: MA000001	$30.10	1
5F250	LR141510	CATALYST AND PARTICLE FILTER	LR141510 CATALYST AND PARTICLE FILTER From: MA000001	$1,918.67	1
5H221	LR141517	CATALYTIC CONVERTER	LR141517 CATALYTIC CONVERTER From: MA000001	$3,178.82	1
6L612	LR157889	GASKET	LR157889 GASKET Exhaust pipe / From: MA000001	$62.66	1
9H334A	LR157885	TUBE - EXHAUST PRESSURE	LR157885 TUBE - EXHAUST PRESSURE Front / From: MA000001	$133.53	1
9H334B	LR157886	TUBE - EXHAUST PRESSURE	LR157886 TUBE - EXHAUST PRESSURE Rear / From: MA000001	$128.11	1
