Front Exhaust System (2.0L Aj21D4 Diesel Mid, Stage V Plus Dpf) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Exhaust System (2.0L AJ21D4 Diesel Mid, Stage V Plus DPF) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.56 IN STOCK
Photo Part No Description Price (each) Stock
LR157887 CLIP - SPECIAL $130.96 To Order
Photo Part No Description Price (each) Stock
LR157888 CLIP - SPECIAL $122.97 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
RYH500350 NUT - SPECIAL $0.52 To Order
Photo Part No Description Price (each) Stock
LR149652 SCREW AND WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
LR092114 STUD $3.58 To Order
Photo Part No Description Price (each) Stock
LR137705 DAMPER - EXHAUST SYSTEM $45.50 To Order
Photo Part No Description Price (each) Stock
LR141497 CLAMP - EXHAUST $31.73 To Order
Photo Part No Description Price (each) Stock
LR125286 GASKET - EXHAUST PIPE $30.05 To Order
Photo Part No Description Price (each) Stock
LR141549 PIPE - EXHAUST $1,692.14 To Order
Photo Part No Description Price (each) Stock
LR141519 CATALYTIC CONVERTER $3,460.93 To Order
Photo Part No Description Price (each) Stock
LR157889 GASKET $62.56 To Order
Photo Part No Description Price (each) Stock
LR134608 INSULATOR - RUBBER $21.71 To Order
Photo Part No Description Price (each) Stock
LR125106 INSULATOR - RUBBER $31.96 To Order
Photo Part No Description Price (each) Stock
LR141527 BRACKET - TURBOCHARGER $95.93 To Order
Photo Part No Description Price (each) Stock
LR157882 BRACKET - EXHAUST $98.54 To Order
Photo Part No Description Price (each) Stock
LR157884 BRACKET - EXHAUST $98.54 To Order
Photo Part No Description Price (each) Stock
LR157885 TUBE - EXHAUST PRESSURE $133.32 To Order
Photo Part No Description Price (each) Stock
LR157886 TUBE - EXHAUST PRESSURE $127.91 To Order
Photo Part No Description Price (each) Stock
LR148149 REINFORCEMENT - REAR FLOOR PAN $118.27 To Order
View All

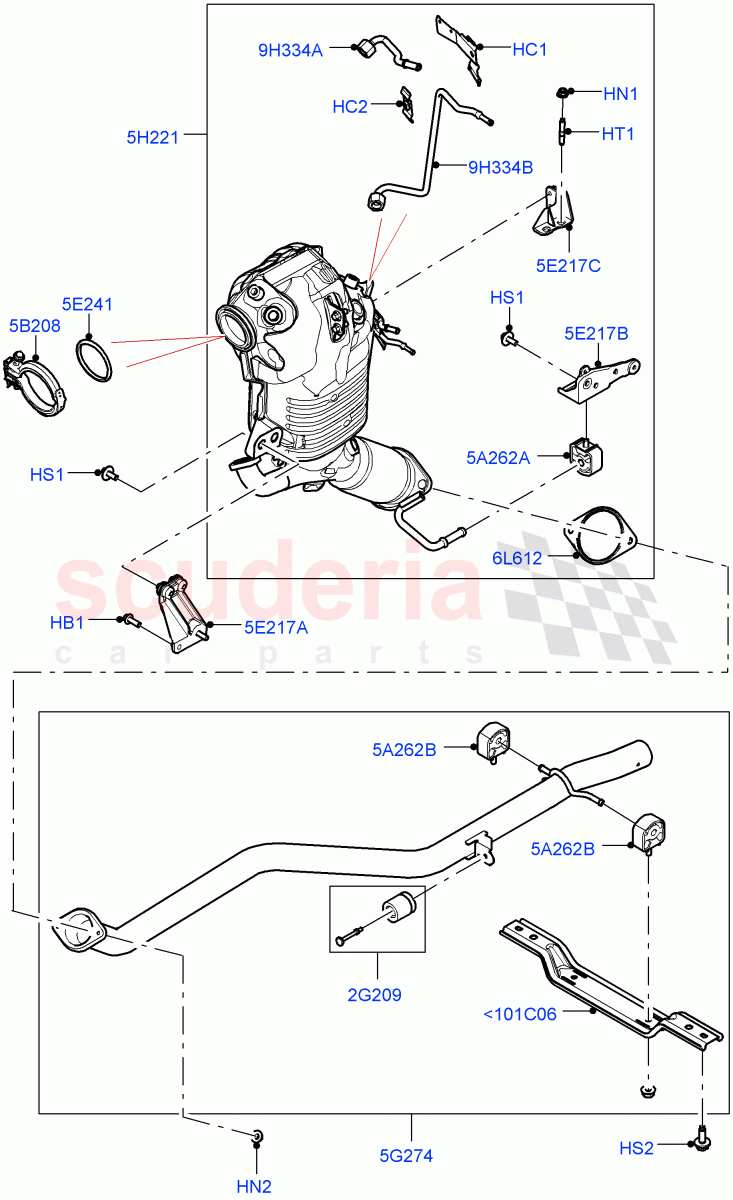

Front Exhaust System (2.0L AJ21D4 Diesel Mid, Stage V Plus DPF) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<101C06 LR148149
REINFORCEMENT - REAR FLOOR PAN
From: MA000001 		$118.27 1
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM, Turbocharger Bracket / From: MA000001
IN STOCK 		$3.56 2
HC1 LR157887
CLIP - SPECIAL
From: MA000001 		$130.96 1
HC2 LR157888
CLIP - SPECIAL
With Weld Nut / From: MA000001 		$122.97 1
HN1 FX108046
NUT - LOCKING
M8, Upper Bracket / From: MA000001
IN STOCK 		$0.40 2
HN2 RYH500350
NUT - SPECIAL
M8, Outlet / From: MA000001 		$0.52 2
HS1 LR149652
SCREW AND WASHER
Lower Bracket, M8 X 22MM / From: MA000001 		$1.77 4
HS2 RYG500980
SCREW AND WASHER
M8 x 24MM, To Body / From: MA000001 		$1.38 4
HT1 LR092114
STUD
M8 X 17.5 + M8 X 20, Upper Bracket / From: MA000001 		$3.58 2
2G209 LR137705
DAMPER - EXHAUST SYSTEM
Kit / From: MA000001 		$45.50 1
5A262A LR134608
INSULATOR - RUBBER
Front / From: MA000001 		$21.71 1
5A262B LR125106
INSULATOR - RUBBER
RH/LH / From: MA000001 		$31.96 2
5B208 LR141497
CLAMP - EXHAUST
Turbocharger Outlet / From: MA000001 		$31.73 1
5E217A LR141527
BRACKET - TURBOCHARGER
Turbocharger / From: MA000001 		$95.93 1
5E217B LR157882
BRACKET - EXHAUST
To Transmission / From: MA000001 		$98.54 1
5E217C LR157884
BRACKET - EXHAUST
Side / From: MA000001 		$98.54 1
5E241 LR125286
GASKET - EXHAUST PIPE
Turbocharger Outlet / From: MA000001 		$30.05 1
5G274 LR141549
PIPE - EXHAUST
From: MA000001 		$1,692.14 1
5H221 LR141519
CATALYTIC CONVERTER
From: MA000001 		$3,460.93 1
6L612 LR157889
GASKET
Exhaust pipe / From: MA000001 		$62.56 1
9H334A LR157885
TUBE - EXHAUST PRESSURE
Front / From: MA000001 		$133.32 1
9H334B LR157886
TUBE - EXHAUST PRESSURE
Rear / From: MA000001 		$127.91 1
