Inlet Manifold (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Inlet Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR130401 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER $13.42 To Order
Photo Part No Description Price (each) Stock
LR141359 MANIFOLD - INLET $616.37 To Order
Photo Part No Description Price (each) Stock
LR139769 GASKET - INTAKE MANIFOLD $11.34 To Order
Photo Part No Description Price (each) Stock
LR141299 COVER - ENGINE TOP $256.22 To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL $5.05 To Order
Photo Part No Description Price (each) Stock
LR139766 GASKET - THROTTLE $14.43 To Order
Photo Part No Description Price (each) Stock
LR144572 SENSOR - AIR TEMPERATURE & PRESSURE $98.93 To Order
Photo Part No Description Price (each) Stock
LR090553 STUD - SPECIAL $6.90 To Order
Photo Part No Description Price (each) Stock
LR038978 STUD - BALL $3.81 To Order
Photo Part No Description Price (each) Stock
LR142049 BRACKET - MANIFOLD $24.95 To Order
Photo Part No Description Price (each) Stock
LR139685 BRACKET - MANIFOLD $72.38 To Order
View All

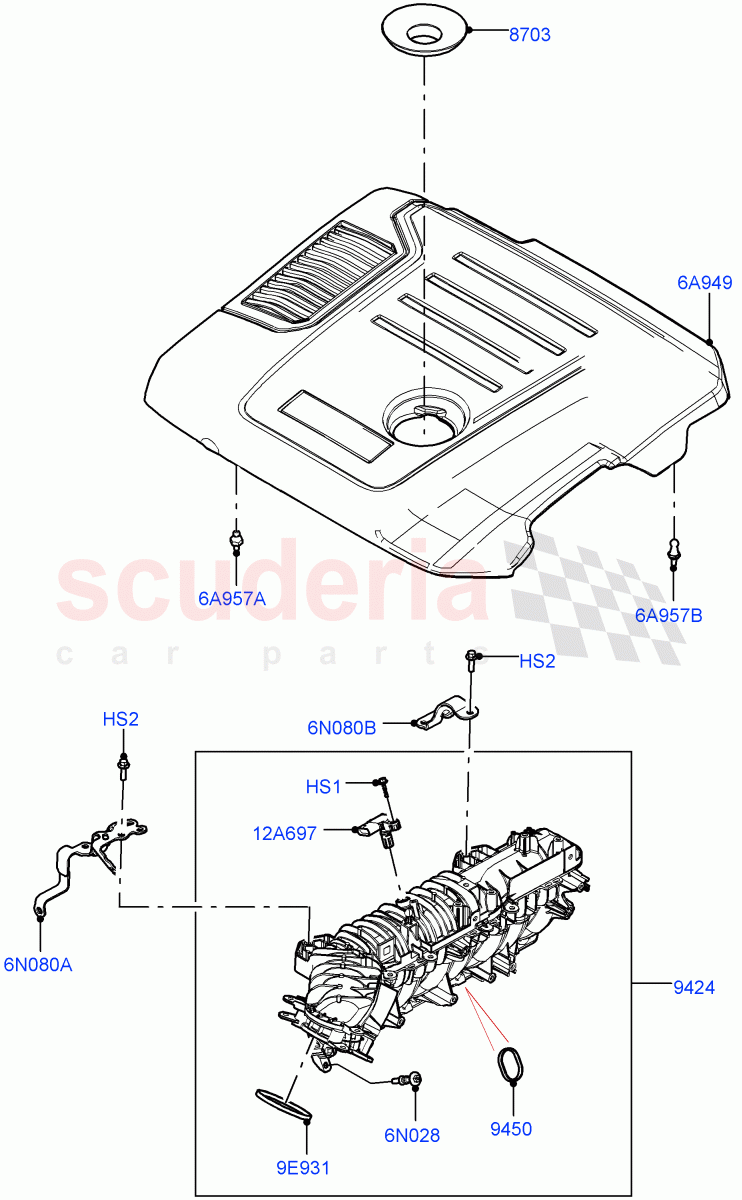

Inlet Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR130401
SCREW
Hexagonal Head, M5 x 20MM, Sensor / From: MA000001 		$0.76 1
HS2 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.60 4
6A949 LR141299
COVER - ENGINE TOP
Engine / From: MA000001 		$256.22 1
6A957A LR090553
STUD - SPECIAL
Engine Cover, Front RH / From: MA000001 		$6.90 1
6A957B LR038978
STUD - BALL
Engine Cover, Rear / From: MA000001 		$3.81 2
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: MA000001 		$5.05 9
6N080A LR142049
BRACKET - MANIFOLD
Front / From: MA000001 		$24.95 1
6N080B LR139685
BRACKET - MANIFOLD
Rear / From: MA000001 		$72.38 1
9E931 LR139766
GASKET - THROTTLE
Throttle Body To Intake / From: MA000001 		$14.43 1
12A697 LR144572
SENSOR - AIR TEMPERATURE & PRESSURE
From: MA000001 		$98.93 1
8703 LR074074
OIL SPILL GAITER
Oil Spill / From: MA000001 		$13.42 1
9424 LR141359
MANIFOLD - INLET
From: MA000001 		$616.37 1
9450 LR139769
GASKET - INTAKE MANIFOLD
Inlet Manifold / From: MA000001 		$11.34 8
