Exhaust Manifold (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR091557 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
LR078918 BOLT - HEX. HEAD - FLANGED $0.94 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
LR141347 MANIFOLD - EXHAUST $562.47 To Order
Photo Part No Description Price (each) Stock
LR073663 BOLT - SPECIAL $3.71 To Order
Photo Part No Description Price (each) Stock
LR139688 CLAMP - EXHAUST $33.35 To Order
Photo Part No Description Price (each) Stock
LR122973 HEAT SHIELD - SENSOR $20.66 To Order
Photo Part No Description Price (each) Stock
LR141348 GASKET - EXHAUST MANIFOLD $30.65 To Order
Photo Part No Description Price (each) Stock
LR139689 GASKET - TURBOCHARGER $41.90 To Order
Photo Part No Description Price (each) Stock
LR141393 SENSOR - EXHAUST GAS - TEMPERATURE $143.39 To Order
LR163159 SENSOR - EXHAUST GAS - TEMPERATURE $164.72 To Order
Photo Part No Description Price (each) Stock
LR141394 SENSOR - EXHAUST GAS PRESSURE $151.47 To Order
Photo Part No Description Price (each) Stock
LR124570 BRACKET - CABLE SUPPORT $14.27 To Order
Photo Part No Description Price (each) Stock
LR141338 SHIELD - EXHAUST MANIFOLD HEAT $128.50 To Order
Photo Part No Description Price (each) Stock
LR141339 SHIELD - EXHAUST MANIFOLD HEAT $42.72 To Order
View All

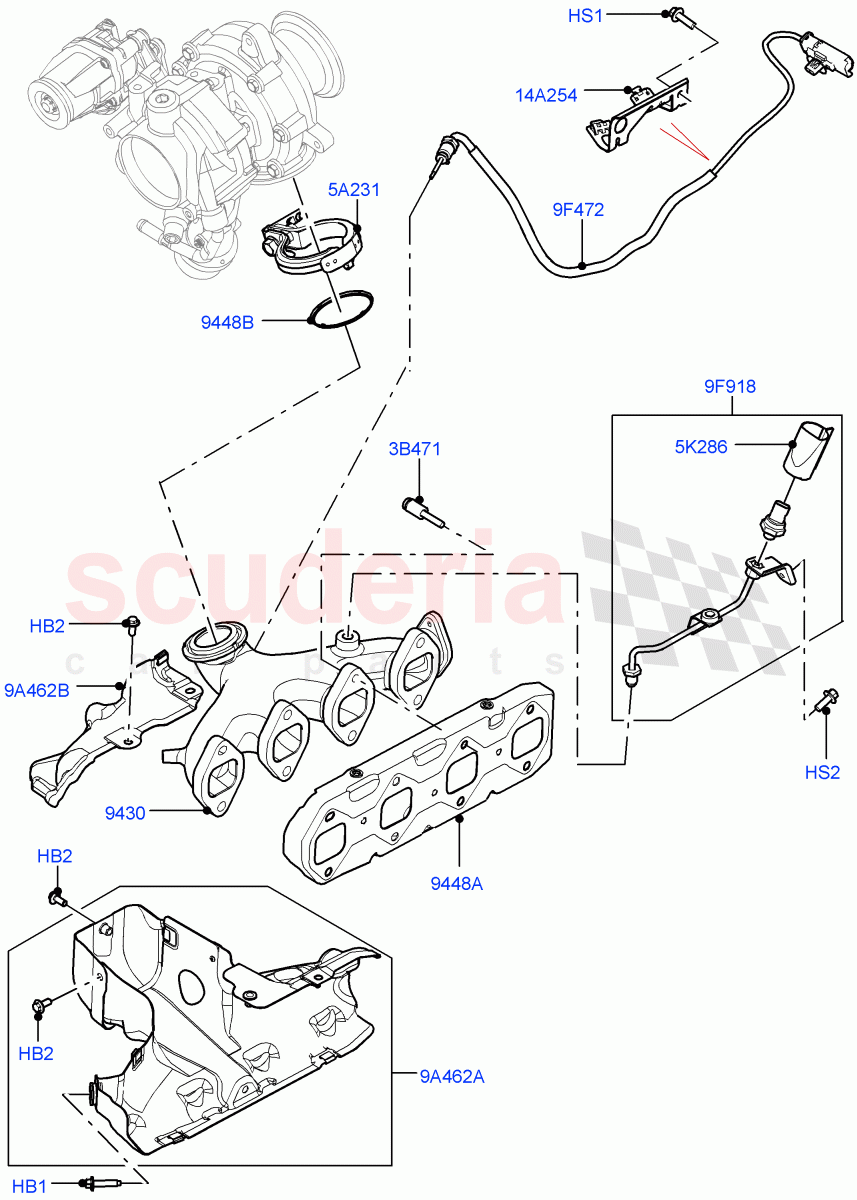

Exhaust Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR091557
BOLT
M6 X 25MM / From: MA000001 		$3.01 1
HB2 LR078918
BOLT - HEX. HEAD - FLANGED
Heat Shield, M6 X 14MM / From: MA000001 		$0.94 5
HS1 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.60 1
HS2 LR073686
SCREW
M6 X 16MM, Pressure Sensor / From: MA000001 		$2.49 1
3B471 LR073663
BOLT - SPECIAL
Exhaust Manifold Fixing / From: MA000001 		$3.71 8
5A231 LR139688
CLAMP - EXHAUST
Manifold To Turbocharger / From: MA000001 		$33.35 1
5K286 LR122973
HEAT SHIELD - SENSOR
Pressure Sensor / From: MA000001 		$20.66 1
9A462A LR141338
SHIELD - EXHAUST MANIFOLD HEAT
Bottom / From: MA000001 		$128.50 1
9A462B LR141339
SHIELD - EXHAUST MANIFOLD HEAT
Upper Front / From: MA000001 		$42.72 1
9F472 LR141393
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: MA000001 / To: MA323360 		$143.39 1
9F472 LR163159
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: MA323361 		$164.72 1
9F918 LR141394
SENSOR - EXHAUST GAS PRESSURE
From: MA000001 		$151.47 1
14A254 LR124570
BRACKET - CABLE SUPPORT
Sensor Cable / From: MA000001 		$14.27 1
9430 LR141347
MANIFOLD - EXHAUST
From: MA000001 		$562.47 1
9448A LR141348
GASKET - EXHAUST MANIFOLD
Manifold To Cylinder Head / From: MA000001 		$30.65 1
9448B LR139689
GASKET - TURBOCHARGER
Turbocharger / From: MA000001 		$41.90 1
