Name: Front Door Trim Installation ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Front Door Trim Installation ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Front Door Trim Installation ((V) FROMAA000001)

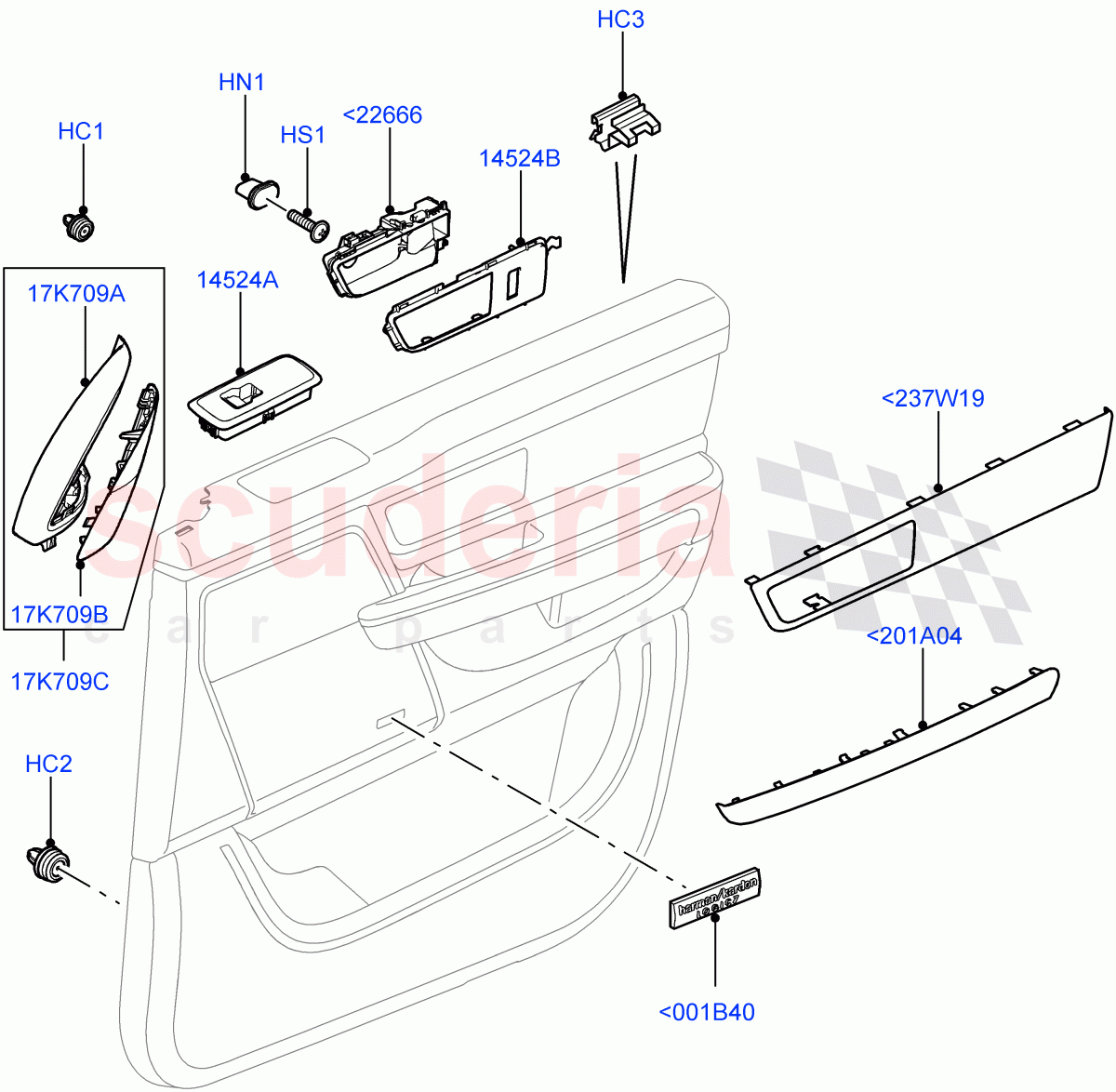

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	$1.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	$1.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	EYC106670	CLIP - DOOR CLADDING	$0.80	To Order
	LR031948	CLIP - DOOR CLADDING	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR1737	NUT	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	DA608064	Screw	$0.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013918	HANDLE - DOOR - INNER	$64.79	To Order
	LR013921	HANDLE - DOOR - INNER	$62.88	To Order
	LR020244	HANDLE - DOOR - INNER	$64.79	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013515	BEZEL - DOOR SWITCH	$65.22	To Order
	LR013516	BEZEL - DOOR SWITCH	$62.87	To Order
	LR013517	BEZEL - DOOR SWITCH	$65.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017043	BEZEL - DOOR SWITCH	$32.44	To Order
	LR017044	BEZEL - DOOR SWITCH	$32.44	To Order
	LR017045	BEZEL - DOOR INSIDE HANDLE	$27.49	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DAM500310	NAME PLATE - PLASTIC	$28.32	To Order
	DAM500320	NAME PLATE - PLASTIC	$24.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014920	ESCUTCHEON - DOOR INSIDE HANDLE	$90.69	To Order
	LR014924	ESCUTCHEON - DOOR INSIDE HANDLE	$93.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014640	INSERT - DOOR TRIM	$130.70	To Order
	LR014641	INSERT - DOOR TRIM	$128.12	To Order
	LR014642	INSERT - DOOR TRIM	$350.55	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DDN500142PVJ	COVER	$22.57	To Order
	DDN500152PVJ	COVER	$22.57	To Order

Photo	Part No	Description	Price (each)	Stock
	EJN500072PVJ	COVER	$22.92	To Order
	EJN500092PVJ	COVER	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021421	COVER - MIRROR HOUSING	$131.41	To Order
	LR021422	COVER - MIRROR HOUSING	$140.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<001B40	DAM500310	NAME PLATE - PLASTIC	DAM500310 NAME PLATE - PLASTIC Hi ICE Branded / Nameplate - Speaker Grille / From: AA000001	$28.32	2
<001B40	DAM500320	NAME PLATE - PLASTIC	DAM500320 NAME PLATE - PLASTIC With Premium Sound System / Nameplate - Speaker Grille / From: AA000001	$24.88	2
<201A04	LR014920	ESCUTCHEON - DOOR INSIDE HANDLE	LR014920 ESCUTCHEON - DOOR INSIDE HANDLE RH, Noble / From: AA000001	$90.69	1
<201A04	LR014924	ESCUTCHEON - DOOR INSIDE HANDLE	LR014924 ESCUTCHEON - DOOR INSIDE HANDLE LH, Noble / From: AA000001	$93.89	1
<237W19	LR014640	INSERT - DOOR TRIM	LR014640 INSERT - DOOR TRIM Interior Satin Blk Wlnt Veneer / RH / From: AA000001	$130.70	1
<237W19	LR014641	INSERT - DOOR TRIM	LR014641 INSERT - DOOR TRIM Interior Dark Brown Anigre Pack / RH / From: AA000001	$128.12	1
<237W19	LR014642	INSERT - DOOR TRIM	LR014642 INSERT - DOOR TRIM Interior Piano Black Veneer / RH / From: AA000001	$350.55	1
<237W19	LR014644	INSERT - DOOR TRIM	LR014644 INSERT - DOOR TRIM Interior Dark Brown Anigre Pack / LH / From: AA000001	$343.70	1
<237W19	LR014643	INSERT - DOOR TRIM	LR014643 INSERT - DOOR TRIM Interior Satin Blk Wlnt Veneer / LH / From: AA000001	$275.38	1
<237W19	LR014645	INSERT - DOOR TRIM	LR014645 INSERT - DOOR TRIM Interior Piano Black Veneer / LH / From: AA000001	$164.33	1
<237W19	LR021016	INSERT - DOOR TRIM	LR021016 INSERT - DOOR TRIM Interior Ebony Pack / RH / From: BA000001	$243.06	1
<237W19	LR021017	INSERT - DOOR TRIM	LR021017 INSERT - DOOR TRIM Interior Ebony Pack / LH / From: BA000001	$243.06	1
<22666	LR013918	HANDLE - DOOR - INNER	LR013918 HANDLE - DOOR - INNER RH / From: AA000001 / To: AA223377	$64.79	1
<22666	LR013921	HANDLE - DOOR - INNER	LR013921 HANDLE - DOOR - INNER LH / From: AA000001 / To: AA223377	$62.88	1
<22666	LR020244	HANDLE - DOOR - INNER	LR020244 HANDLE - DOOR - INNER RH / From: AA223378 / To: BA715989	$64.79	1
<22666	LR020246	HANDLE - DOOR - INNER	LR020246 HANDLE - DOOR - INNER LH / From: AA223378 / To: BA715989	$62.51	1
<22666	LR031884	HANDLE - DOOR - INNER	LR031884 HANDLE - DOOR - INNER RH / From: BA715990	$64.79	1
<22666	LR031885	HANDLE - DOOR - INNER	LR031885 HANDLE - DOOR - INNER LH / From: BA715990	$64.79	1
HC1	LR013135	CLIP - TRIM IN STOCK	LR013135 CLIP - TRIM Cheater, Cover / From: AA000001 IN STOCK	$1.76	2
HC2	LR013135	CLIP - TRIM IN STOCK	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Retainer / From: AA000001 IN STOCK	$1.76	26
HC3	EYC106670	CLIP - DOOR CLADDING	EYC106670 CLIP - DOOR CLADDING Door Cladding / From: AA000001 / To: BA705593	$0.80	10
HC3	LR031948	CLIP - DOOR CLADDING	LR031948 CLIP - DOOR CLADDING Door Cladding / From: BA705594	$0.73	2
HN1	BTR1737	NUT	BTR1737 NUT 4.20MM, Handle, Plastic Nut / From: AA000001	$1.62	2
HS1	DA608064	Screw	DA608064 Screw Handle, No.8 X 19, Self Tapping / From: AA000001	$0.13	2
17K709A	DDN500142PVJ	COVER	DDN500142PVJ COVER RH, Ebony Black, Outer / From: AA000001 / To: AA235074	$22.57	1
17K709A	DDN500152PVJ	COVER	DDN500152PVJ COVER LH, Ebony Black, Outer / From: AA000001 / To: AA235074	$22.57	1
17K709B	EJN500072PVJ	COVER	EJN500072PVJ COVER LH, Ebony Black, Inner / From: AA000001 / To: AA235074	$22.92	1
17K709B	EJN500092PVJ	COVER	EJN500092PVJ COVER RH, Ebony Black, Inner / From: AA000001 / To: AA235074	$22.92	1
17K709C	LR021421	COVER - MIRROR HOUSING	LR021421 COVER - MIRROR HOUSING RH, Less Mirror Switch Aperture / From: AA235075	$131.41	1
17K709C	LR021422	COVER - MIRROR HOUSING	LR021422 COVER - MIRROR HOUSING LH, Less Mirror Switch Aperture / From: AA215749	$140.66	1
14524A	LR013515	BEZEL - DOOR SWITCH	LR013515 BEZEL - DOOR SWITCH Less Powerfold Mirror, With Memory Mirror / Black, Driver / From: AA000001	$65.22	1
14524A	LR013516	BEZEL - DOOR SWITCH	LR013516 BEZEL - DOOR SWITCH With Memory Mirror, With Powerfold Mirror / Black, Driver / From: AA000001	$62.87	1
14524A	LR013517	BEZEL - DOOR SWITCH	LR013517 BEZEL - DOOR SWITCH Less Headphones/Sockets - Rear / Black, Passenger / From: AA000001	$65.42	1
14524B	LR017043	BEZEL - DOOR SWITCH	LR017043 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, RHD / RH, Noble / From: AA000001 / To: AA224391	$32.44	1
14524B	LR017044	BEZEL - DOOR SWITCH	LR017044 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, LHD / LH, Noble / From: AA000001 / To: AA224391	$32.44	1
14524B	LR017045	BEZEL - DOOR INSIDE HANDLE	LR017045 BEZEL - DOOR INSIDE HANDLE Drv/Pass Electric Front Seat Adjust / RH, Noble / From: AA000001 / To: AA224293	$27.49	1
14524B	LR017046	BEZEL - DOOR INSIDE HANDLE	LR017046 BEZEL - DOOR INSIDE HANDLE Drv/Pass Electric Front Seat Adjust / LH, Noble / From: AA000001 / To: AA224293	$32.44	1
14524B	LR020476	BEZEL - DOOR SWITCH	LR020476 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, RHD / RH, Noble / From: AA224392 / To: BA713270	$32.44	1
14524B	LR020478	BEZEL - DOOR SWITCH	LR020478 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, LHD / LH, Noble / From: AA224392 / To: BA713270	$32.44	1
14524B	LR020481	BEZEL - DOOR INSIDE HANDLE	LR020481 BEZEL - DOOR INSIDE HANDLE Electric Front Seat Adj Drv Memory, LHD / RH, Noble / From: AA224294 / To: BA713270	$27.49	1
14524B	LR020482	BEZEL - DOOR INSIDE HANDLE	LR020482 BEZEL - DOOR INSIDE HANDLE Drv/Pass Electric Front Seat Adjust / LH, Noble / From: AA224294 / To: BA713270	$32.44	1
14524B	LR031890	BEZEL - DOOR SWITCH	LR031890 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, RHD / RH, Noble / From: BA713271	$158.71	1
14524B	LR031891	BEZEL - DOOR SWITCH	LR031891 BEZEL - DOOR SWITCH Electric Front Seat Adj Drv Memory, LHD / LH, Noble / From: BA713271	$125.81	1
14524B	LR031888	BEZEL - DOOR INSIDE HANDLE	LR031888 BEZEL - DOOR INSIDE HANDLE Drv/Pass Electric Front Seat Adjust / RH, Noble / From: BA713271	$136.94	1
14524B	LR031889	BEZEL - DOOR INSIDE HANDLE	LR031889 BEZEL - DOOR INSIDE HANDLE Electric Front Seat Adj Drv Memory, RHD / LH, Noble / From: BA713271	$136.94	1
