Name: Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)

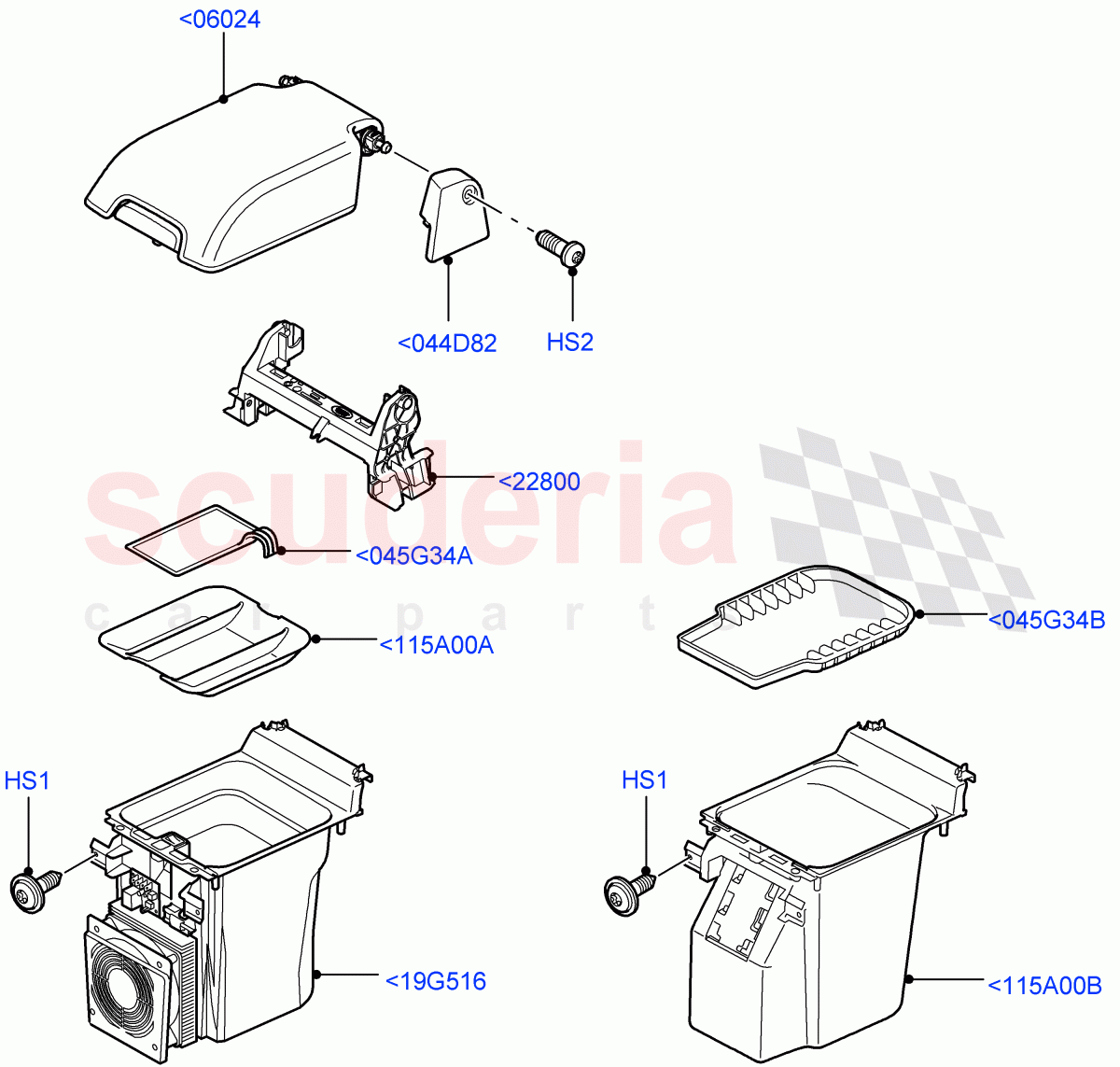

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066957	SCREW AND WASHER	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500270	SCREW	$7.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015009	LID - STORAGE COMPARTMENT	$231.61	To Order
	LR013441	LID - STORAGE COMPARTMENT	$128.73	To Order
	LR013442	LID - STORAGE COMPARTMENT	$137.45	To Order

...and 51 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR056265	HINGE - STOWAGE BOX	$42.66	To Order

Photo	Part No	Description	Price (each)	Stock
	FJV501080MVM	COVER - CONSOLE HINGE	$19.54	To Order
	FJV501090MVM	COVER - CONSOLE HINGE	$19.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018342	COOL BOX - CONSOLE	$532.98	To Order
	LR021376	COOL BOX	$518.81	To Order
	LR021370	COOL BOX - CONSOLE	$567.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019744	MAT	$33.36	To Order
	LR021373	MAT	$35.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FIF500042PVJ	MAT	$18.22	To Order

Photo	Part No	Description	Price (each)	Stock
	FHY500030PVJ	COMPARTMENT - STOWAGE	$42.43	To Order
	LR047448	COMPARTMENT - STOWAGE	$66.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018341	BOX - STOWAGE	$41.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<19G516	LR018342	COOL BOX - CONSOLE	LR018342 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler / Ebony Black, With USB / From: AA000001 / To: AA224293	$532.98	1
<19G516	LR021376	COOL BOX	LR021376 COOL BOX Centre Console - Double Lid/Cooler, Less Poratable Audio Connection-FIA / Less USB / From: AA000001	$518.81	1
<19G516	LR021370	COOL BOX - CONSOLE	LR021370 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler, Poratable Audio Connection - FIA / With USB / From: AA224294	$567.01	1
<044D82	FJV501080MVM	COVER - CONSOLE HINGE	FJV501080MVM COVER - CONSOLE HINGE RH, Noble / From: AA000001	$19.54	1
<044D82	FJV501090MVM	COVER - CONSOLE HINGE	FJV501090MVM COVER - CONSOLE HINGE LH, Noble / From: AA000001	$19.54	1
<045G34A	LR019744	MAT	LR019744 MAT For iPod Stowage / From: AA000001 / To: AA224293	$33.36	1
<045G34A	LR021373	MAT	LR021373 MAT From: AA224294	$35.51	1
<045G34B	FIF500042PVJ	MAT	FIF500042PVJ MAT Ebony Black / From: AA000001	$18.22	1
<115A00A	FHY500030PVJ	COMPARTMENT - STOWAGE	FHY500030PVJ COMPARTMENT - STOWAGE With Personal Telephone Integration / Ebony Black / From: AA000001 / To: DA791602	$42.43	1
<115A00A	LR047448	COMPARTMENT - STOWAGE	LR047448 COMPARTMENT - STOWAGE Poratable Audio Connection - FIA / Ebony Black / From: DA791603	$66.50	1
<115A00B	LR018341	BOX - STOWAGE	LR018341 BOX - STOWAGE Console - With Closed Bin / Ebony Black / From: AA000001	$41.53	1
<06024	LR015009	LID - STORAGE COMPARTMENT	LR015009 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Contrast - Ocean/Ivory / From: AA000001 / To: AA239849	$231.61	1
<06024	LR013441	LID - STORAGE COMPARTMENT	LR013441 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Contrast - Ebony/Tan / From: AA000001 / To: AA239849	$128.73	1
<06024	LR013442	LID - STORAGE COMPARTMENT	LR013442 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Contrast-Arabica/Almond / From: AA000001 / To: AA239849	$137.45	1
<06024	LR015011	LID - STORAGE COMPARTMENT	LR015011 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Contrast - Ebony/Ivory, Ivory / From: AA000001 / To: BA262641	$231.61	1
<06024	LR015012	LID - STORAGE COMPARTMENT	LR015012 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Contrast - Ebony/Tan / From: AA000001 / To: BA262641	$231.61	1
<06024	LR013439	LID - STORAGE COMPARTMENT	LR013439 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Contrast - Ebony Black, With Lunar Contrast Stitching / From: AA000001 / To: BA262641	$231.61	1
<06024	LR013440	LID - STORAGE COMPARTMENT	LR013440 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Cntr-Ebony Black/Almond / From: AA000001 / To: BA262641	$242.88	1
<06024	LR018683	LID - STORAGE COMPARTMENT	LR018683 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Contrast - Ebony Black, With Ivory Contrast Stitching / From: AA000001 / To: BA262641	$231.61	1
<06024	LR015010	LID - STORAGE COMPARTMENT	LR015010 LID - STORAGE COMPARTMENT Almond/Arabica, Console Top Plate - Leather, I/P Facia Contrast-Arabica/Almond / From: AA000001 / To: BA262641	$231.61	1
<06024	LR013437	LID - STORAGE COMPARTMENT	LR013437 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Less Poratable Audio Connection-FIA / Less USB / From: AA000001 / To: BA268033	$144.97	1
<06024	LR018946	LID - STORAGE COMPARTMENT	LR018946 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Pimento / With USB / From: BA262642 / To: BA268033	$231.61	1
<06024	LR018947	LID - STORAGE COMPARTMENT	LR018947 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Ocean / From: BA262642 / To: BA268033	$231.61	1
<06024	LR015009	LID - STORAGE COMPARTMENT	LR015009 LID - STORAGE COMPARTMENT Console Top Plate - Ivory, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA262642 / To: BA268033	$231.61	1
<06024	LR015009	LID - STORAGE COMPARTMENT	LR015009 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Contrast - Ebony/Ivory, Poratable Audio Connection - FIA / With USB / From: AA239850 / To: AA262641	$231.61	1
<06024	LR013441	LID - STORAGE COMPARTMENT	LR013441 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Contrast - Ebony Black, Poratable Audio Connection - FIA / With USB / From: AA239850 / To: AA262641	$128.73	1
<06024	LR013441	LID - STORAGE COMPARTMENT	LR013441 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA262642 / To: BA268033	$128.73	1
<06024	LR013442	LID - STORAGE COMPARTMENT	LR013442 LID - STORAGE COMPARTMENT Console Top Plate - PVC, I/P Facia Cntr-Ebony Black/Almond, Poratable Audio Connection - FIA / With USB / From: AA239850 / To: AA262641	$137.45	1
<06024	LR013442	LID - STORAGE COMPARTMENT	LR013442 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA262642 / To: BA268033	$137.45	1
<06024	LR015010	LID - STORAGE COMPARTMENT	LR015010 LID - STORAGE COMPARTMENT Console Top Plate - Arabica, Console Top Plate - Leather / From: BA262642 / To: BA268033	$231.61	1
<06024	LR015011	LID - STORAGE COMPARTMENT	LR015011 LID - STORAGE COMPARTMENT Console Top Plate - Ivory, Console Top Plate - Leather / From: BA262642 / To: BA268033	$231.61	1
<06024	LR018683	LID - STORAGE COMPARTMENT	LR018683 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - Leather, With Ivory Contrast Stitching / From: BA262642 / To: BA268033	$231.61	1
<06024	LR018683	LID - STORAGE COMPARTMENT	LR018683 LID - STORAGE COMPARTMENT Console Top Plate - Leather, I/P Facia Contrast - Ebony/Ivory, Ivory/Ebony / From: AA000001 / To: AA262641	$231.61	1
<06024	LR015012	LID - STORAGE COMPARTMENT	LR015012 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Tan / From: BA262642 / To: BA268033	$231.61	1
<06024	LR013439	LID - STORAGE COMPARTMENT	LR013439 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - Leather, With Lunar Contrast Stitching / From: BA262642 / To: BA268033	$231.61	1
<06024	LR013440	LID - STORAGE COMPARTMENT	LR013440 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate - Leather / From: BA262642 / To: BA268033	$242.88	1
<06024	LR025800	LID - STORAGE COMPARTMENT	LR025800 LID - STORAGE COMPARTMENT Console Top Plate - Ivory, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA268034 / To: DA784673	$242.88	1
<06024	LR025801	LID - STORAGE COMPARTMENT	LR025801 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA268034 / To: DA784673	$150.63	1
<06024	LR025802	LID - STORAGE COMPARTMENT	LR025802 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: BA268034 / To: DA784673	$131.79	1
<06024	LR025945	LID - STORAGE COMPARTMENT	LR025945 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Pimento / From: BA268034 / To: DA784673	$231.61	1
<06024	LR025804	LID - STORAGE COMPARTMENT	LR025804 LID - STORAGE COMPARTMENT Console Top Plate - Arabica, Console Top Plate - Leather / From: BA268034 / To: DA784673	$254.09	1
<06024	LR025805	LID - STORAGE COMPARTMENT	LR025805 LID - STORAGE COMPARTMENT Console Top Plate - Ivory, Console Top Plate - Leather / From: BA268034	$242.88	1
<06024	LR025806	LID - STORAGE COMPARTMENT	LR025806 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - Leather, With Ivory Contrast Stitching / From: BA268034 / To: DA784673	$254.09	1
<06024	LR025807	LID - STORAGE COMPARTMENT	LR025807 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Tan / From: BA268034 / To: DA784673	$231.61	1
<06024	LR025809	LID - STORAGE COMPARTMENT	LR025809 LID - STORAGE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - Leather, With Lunar Contrast Stitching / With USB / From: BA268034 / To: DA784673	$242.31	1
<06024	LR025810	LID - STORAGE COMPARTMENT	LR025810 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate - Leather / With USB / From: BA268034	$231.61	1
<06024	LR025811	LID - STORAGE COMPARTMENT	LR025811 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Less Poratable Audio Connection-FIA / Less USB / From: BA268034 / To: DA784673	$150.63	1
<06024	LR025944	LID - STORAGE COMPARTMENT	LR025944 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Ocean / From: BA268034	$231.61	1
<06024	LR032973	LID - STORAGE COMPARTMENT	LR032973 LID - STORAGE COMPARTMENT Console Top Plate - Ivory, Console Top Plate-Leather Stained / With USB / From: BA000001 / To: DA784673	$174.53	1
<06024	LR032975	LID - STORAGE COMPARTMENT	LR032975 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate-Leather Stained / With USB / From: BA000001 / To: DA784673	$165.26	1
<06024	LR044201	DOOR - GLOVE COMPARTMENT	LR044201 DOOR - GLOVE COMPARTMENT Console Top Plate - Ivory, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: DA784674	$162.09	1
<06024	LR044202	DOOR - GLOVE COMPARTMENT	LR044202 DOOR - GLOVE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: DA784674	$209.60	1
<06024	LR044043	DOOR - GLOVE COMPARTMENT	LR044043 DOOR - GLOVE COMPARTMENT Console Top Plate - Almond, Console Top Plate - PVC, Poratable Audio Connection - FIA / With USB / From: DA784674	$209.60	1
<06024	LR030736	DOOR - GLOVE COMPARTMENT	LR030736 DOOR - GLOVE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Pimento / With USB / From: DA784674	$426.73	1
<06024	LR029505	DOOR - GLOVE COMPARTMENT	LR029505 DOOR - GLOVE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Lunar / With USB / From: DA784674	$469.83	1
<06024	LR029506	DOOR - GLOVE COMPARTMENT	LR029506 DOOR - GLOVE COMPARTMENT Console Top Plate - Cirrus, Console Top Plate - Leather / With USB / From: DA784674	$469.83	1
<06024	LR044203	DOOR - GLOVE COMPARTMENT	LR044203 DOOR - GLOVE COMPARTMENT Console Top Plate - PVC, Less Poratable Audio Connection-FIA / Less USB / From: DA784674	$203.90	1
<06024	LR044204	LID - STORAGE COMPARTMENT	LR044204 LID - STORAGE COMPARTMENT Console Top Plate - Almond, Console Top Plate-Leather Stained / With USB / From: DA784674	$426.73	1
<06024	LR044345	DOOR - GLOVE COMPARTMENT	LR044345 DOOR - GLOVE COMPARTMENT Console Top Plate - Ivory, Console Top Plate-Leather Stained / With USB / From: DA784674	$208.78	1
<06024	LR032981	LID - STORAGE COMPARTMENT	LR032981 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Console Top Plate - Lunar / From: CA000001 / To: DA784673	$445.02	1
<06024	LR032982	LID - STORAGE COMPARTMENT	LR032982 LID - STORAGE COMPARTMENT Console Top Plate - Cirrus, Console Top Plate - Leather / From: CA000001 / To: DA784673	$445.02	1
<06024	LR030631	DOOR - GLOVE COMPARTMENT	LR030631 DOOR - GLOVE COMPARTMENT Console Top Plate - Arabica, Console Top Plate - Leather, Less Inter Badging - Headrest / From: DA784674	$208.74	1
<06024	LR030633	DOOR - GLOVE COMPARTMENT	LR030633 DOOR - GLOVE COMPARTMENT Console Top Plate - Ebony, Console Top Plate - Leather, With Ivory Contrast Stitching / From: DA784674	$426.73	1
<06024	LR030732	DOOR - STOWAGE BOX	LR030732 DOOR - STOWAGE BOX Console Top Plate - Leather, Console Top Plate - Tan / From: DA784674	$426.73	1
<06024	LR030704	DOOR - STOWAGE BOX	LR030704 DOOR - STOWAGE BOX Console Top Plate - Ebony, Console Top Plate - Leather, With Lunar Contrast Stitching / With USB / From: DA784674	$426.80	1
<22800	LR056265	HINGE - STOWAGE BOX	LR056265 HINGE - STOWAGE BOX Door Hinge, Stowage Box / From: AA000001	$42.66	1
HS1	LR066957	SCREW AND WASHER	LR066957 SCREW AND WASHER 4.2 x 16MM, Stowage Box / From: AA000001	$4.43	2
HS2	FYP500270	SCREW	FYP500270 SCREW Hinge, M8 X 23MM, Torx / From: AA000001	$7.18	1

Console - Floor (For Stowage Boxes And Lids) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)
