Fuel Pump And Sender Unit (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Fuel Pump And Sender Unit (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR038099 FILTER - FUEL $60.92 To Order
Photo Part No Description Price (each) Stock
LR050538 CONNECTOR - CABLE $2.24 IN STOCK
Photo Part No Description Price (each) Stock
LR015377 FLOAT $153.64 To Order
LR043384 FLOAT $173.55 To Order
Photo Part No Description Price (each) Stock
LR021911 FLOAT $146.36 To Order
LR015000 FLOAT $126.07 To Order
LR042716 SENDER - FUEL TANK $154.79 To Order
Photo Part No Description Price (each) Stock
LR015376 BRACKET - FUEL TANK $114.44 To Order
LR042710 BRACKET - FUEL TANK $120.80 To Order
Photo Part No Description Price (each) Stock
WQM500020 CONTROL - FUEL PUMP DRIVE $266.02 To Order
Photo Part No Description Price (each) Stock
LR043385 SENDER AND PUMP $519.74 To Order
LR043385 SENDER AND PUMP $519.74 To Order
View All

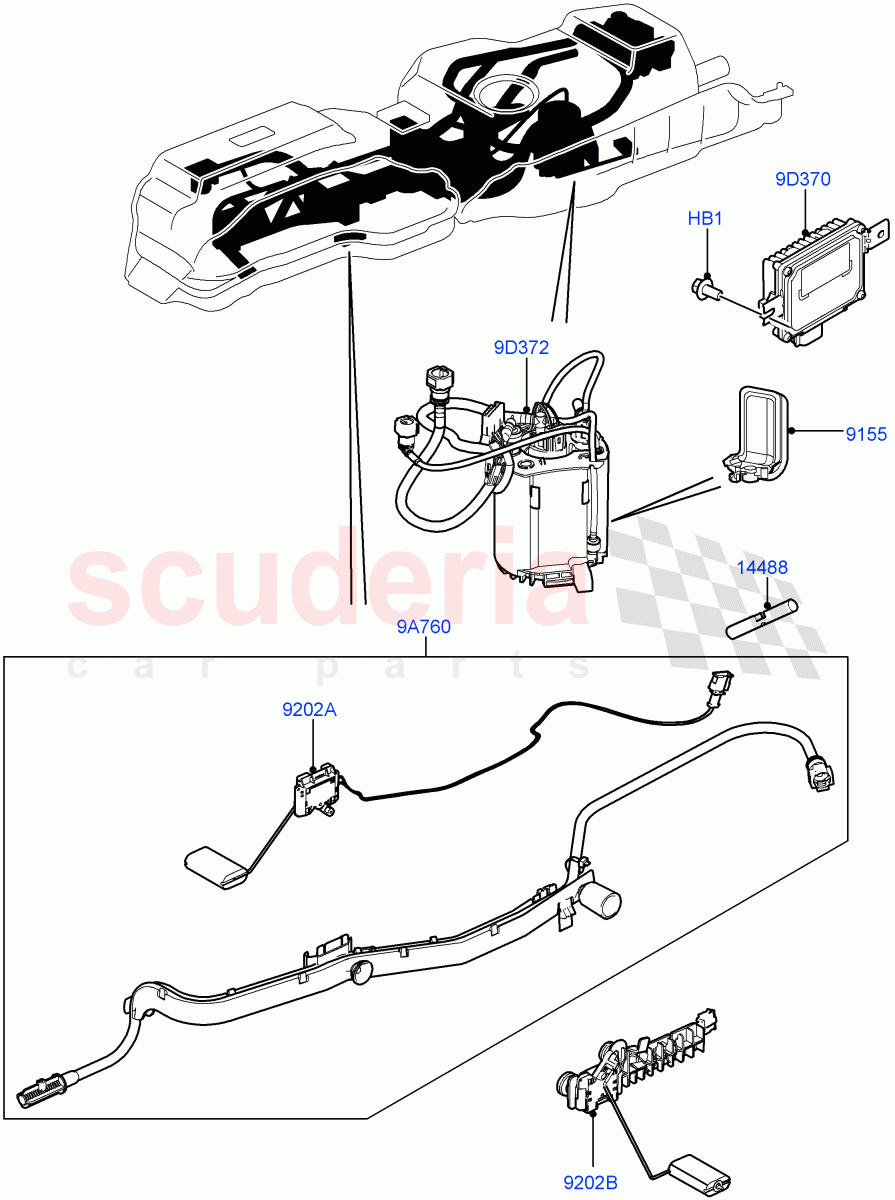

Fuel Pump And Sender Unit (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 2
9A760 LR015376
BRACKET - FUEL TANK
With Fuel Sender / From: AA000001 / To: CA750958 		$114.44 1
9A760 LR042710
BRACKET - FUEL TANK
With Fuel Sender / From: CA750959 		$120.80 1
9D370 WQM500020
CONTROL - FUEL PUMP DRIVE
For Fuel Pump / From: AA000001 		$266.02 1
9D372 LR043385
SENDER AND PUMP
From: AA000001 / To: CA750958 		$519.74 1
9D372 LR043385
SENDER AND PUMP
From: CA750959 		$519.74 1
9155 LR038099
FILTER - FUEL
(+)"CHN" / From: AA000001 		$60.92 1
9202A LR015377
FLOAT
Front / From: AA000001 / To: CA750958 		$153.64 1
9202A LR043384
FLOAT
Front / From: CA750959 		$173.55 1
9202B LR021911
FLOAT
Rear / From: AA247657 / To: CA750958 		$146.36 1
9202B LR015000
FLOAT
Rear / From: AA000001 / To: AA247656 		$126.07 1
9202B LR042716
SENDER - FUEL TANK
Rear / From: CA750959 		$154.79 1
14488 LR050538
CONNECTOR - CABLE
Fuel Level Sender Harness Connector Repair Kit / From: AA212145 / To: BA712004
IN STOCK 		$2.24 6
