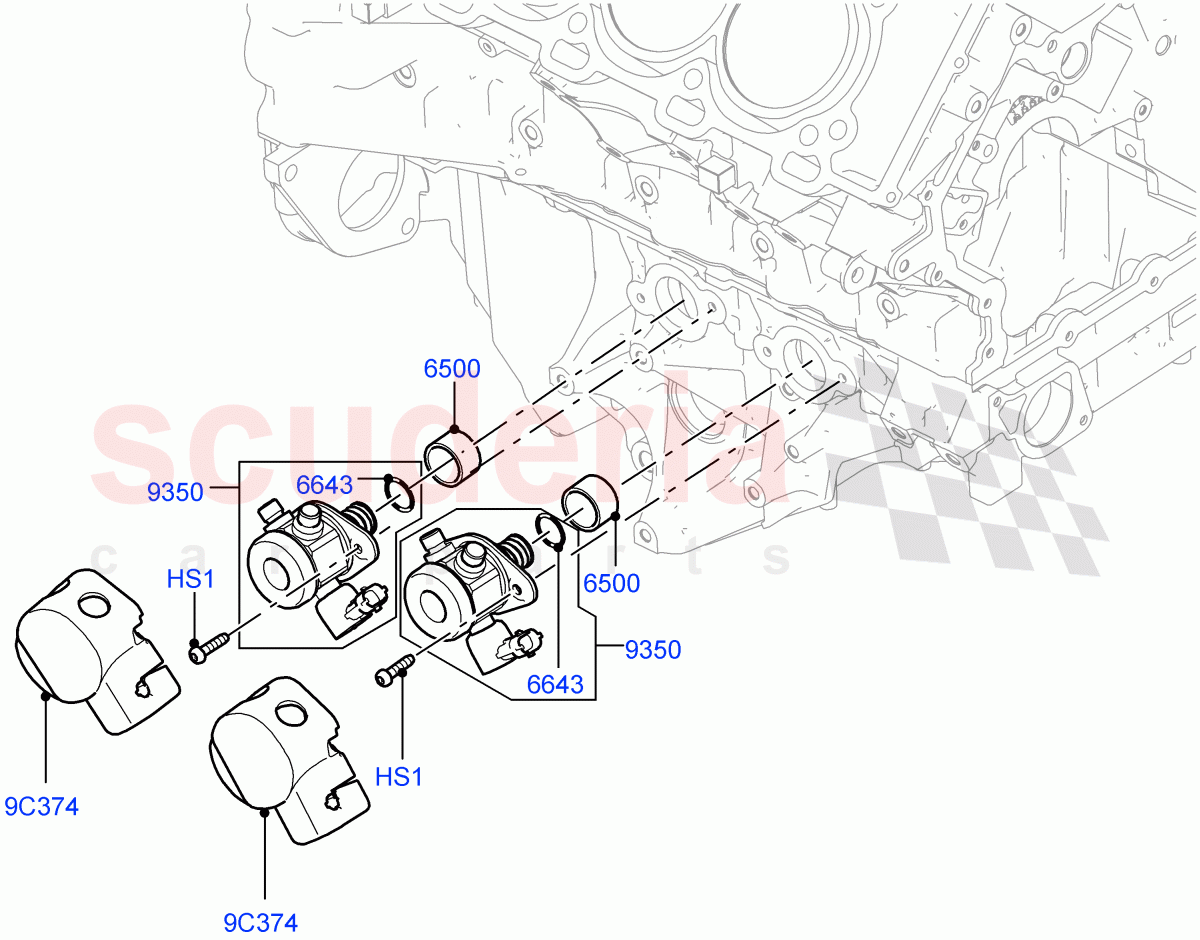

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011208	TAPPET - FUEL PUMP	$56.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010861	O-RING	$11.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011570	ACOUSTIC COVER - FUEL PUMP	$110.12	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW	LR011270 SCREW For Fuel Pump, M6 x 25MM, Torx / From: AA000001	$1.24	4
9C374	LR011570	ACOUSTIC COVER - FUEL PUMP	LR011570 ACOUSTIC COVER - FUEL PUMP From: AA000001	$110.12	2
6500	LR011208	TAPPET - FUEL PUMP	LR011208 TAPPET - FUEL PUMP For Fuel Pump / From: AA000001	$56.94	2
6643	LR010861	O-RING IN STOCK	LR010861 O-RING 31MM X 2MM, For Fuel Pump / From: AA000001 IN STOCK	$11.67	2
9350	LR011308	PUMP - FUEL	LR011308 PUMP - FUEL From: AA000001 / To: BA700740	$515.64	2
9350	LR032174	PUMP - FUEL	LR032174 PUMP - FUEL From: BA700741 / To: BA999999	$530.23	2
9350	LR035527	PUMP - FUEL	LR035527 PUMP - FUEL From: CA000001	$448.52	2
