Name: Luggage Compt/Tailgte Lock Controls ((V) FROMAA000001, (V) TOBA999999)
Rating: 5.0 (1 reviews)

View All

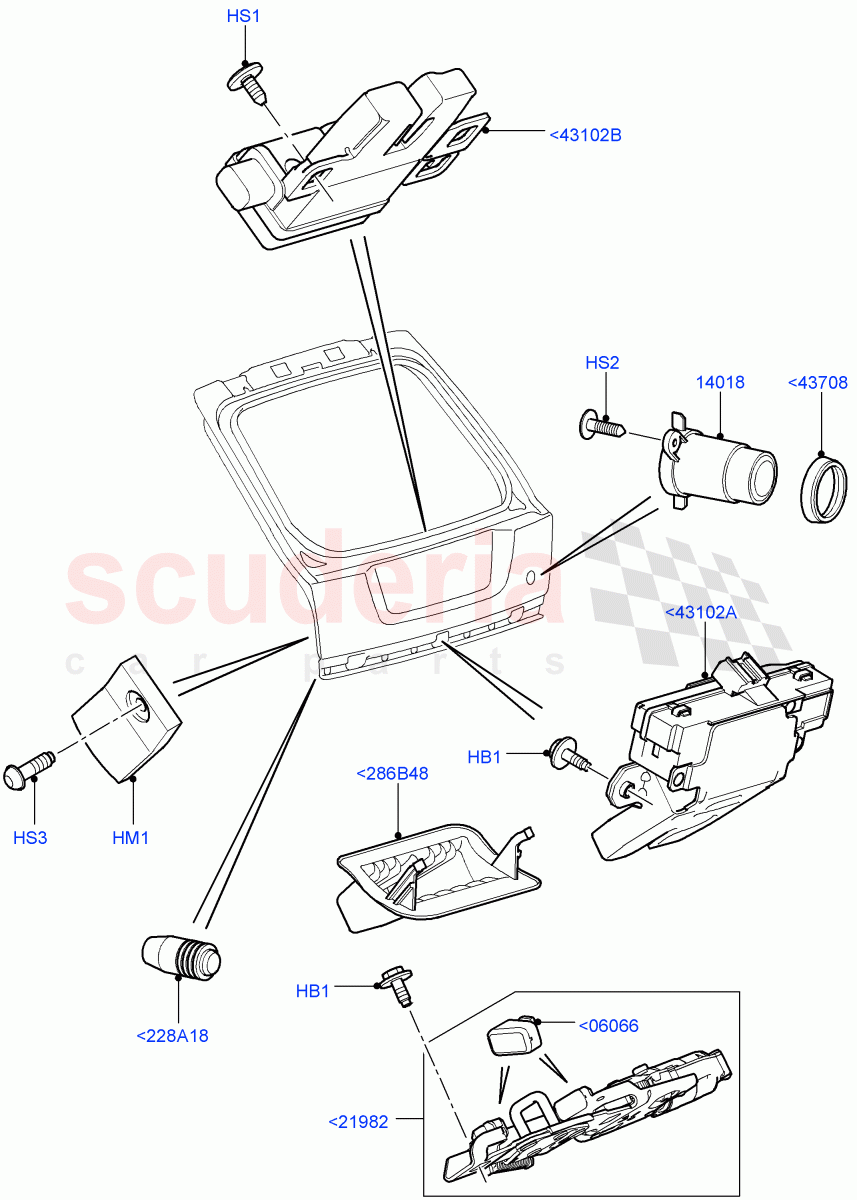

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CKM000010	BUMP STOP	$59.15	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP106392	SCREW	$2.18	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000120	SCREW - SELF-TAPPING	$4.85	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP101410	SCREW	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	FQY500020	SWITCH	$108.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036130	BUMP STOP - TAILGATE	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	FQQ500090	STRIKER	$250.91	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR5252	SEAL	$10.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CKM500011	BUMP STOP - TAILGATE	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FQW500032PVJ	COVER	$9.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016678	LATCH - TAILGATE	$191.87	To Order

Photo	Part No	Description	Price (each)	Stock
	FQR500170	LATCH - TAILGATE	$176.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<228A18	CKM500011	BUMP STOP - TAILGATE	CKM500011 BUMP STOP - TAILGATE From: AA000001	$2.77	2
<286B48	FQW500032PVJ	COVER	FQW500032PVJ COVER Latch / From: AA000001	$9.89	1
<06066	LR036130	BUMP STOP - TAILGATE	LR036130 BUMP STOP - TAILGATE From: AA000001	$3.06	2
<21982	FQQ500090	STRIKER	FQQ500090 STRIKER Electrically Operated / From: AA000001	$250.91	1
<43102A	LR016678	LATCH - TAILGATE	LR016678 LATCH - TAILGATE Door Lower / From: AA000001	$191.87	1
<43102B	FQR500170	LATCH - TAILGATE	FQR500170 LATCH - TAILGATE Tailgate Glass / From: AA000001	$176.10	1
<43708	ALR5252	SEAL IN STOCK	ALR5252 SEAL Switch Assy / From: AA000001 IN STOCK	$10.18	1
HB1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD M6 X 16MM, Striker / From: AA000001 IN STOCK	$0.36	2
HB1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Latch, M6 X 16MM / From: AA000001 IN STOCK	$0.36	3
HM1	CKM000010	BUMP STOP	CKM000010 BUMP STOP Buffer, Lower Tailgate / From: AA000001	$59.15	2
HS1	FYP106392	SCREW	FYP106392 SCREW Latch Tailgate Glass, M6 / From: AA000001	$2.18	2
HS2	DYP000120	SCREW - SELF-TAPPING	DYP000120 SCREW - SELF-TAPPING Self Tapping, Switch Assy / From: AA000001	$4.85	2
HS3	DYP101410	SCREW	DYP101410 SCREW Buffer, M8 X 25MM / From: AA000001	$2.96	2
14018	FQY500020	SWITCH	FQY500020 SWITCH Door Release Control / From: AA000001	$108.02	1

Luggage Compt/Tailgte Lock Controls ((V) Fromaa000001, (V) Toba999999)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]
