Front Door Lock Controls ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Front Door Lock Controls ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003446 CLIP $1.14 To Order
Photo Part No Description Price (each) Stock
DBP5118 PLUG $10.11 To Order
Photo Part No Description Price (each) Stock
FYP500020 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
FYP500010 SCREW $2.29 IN STOCK
Photo Part No Description Price (each) Stock
RYP500020 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
ABS780160 SPACER - HANDLE ASSIST $0.43 To Order
Photo Part No Description Price (each) Stock
LR014101 LATCH - FRONT DOOR $241.96 To Order
LR013801 LATCH - FRONT DOOR $227.44 To Order
LR014100 LATCH - FRONT DOOR $236.01 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FQB500041PMA STRIKER - DOOR LOCKING MECHANISM $43.80 To Order
LR031915 STRIKER - DOOR LOCKING MECHANISM $8.15 To Order
Photo Part No Description Price (each) Stock
LR019308 HANDLE - DOOR - OUTER $48.33 To Order
LR019764 HANDLE - DOOR - OUTER $221.92 To Order
LR020928 HANDLE - DOOR - OUTER $168.72 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003456 INSERT - BEZEL $1.91 To Order
Photo Part No Description Price (each) Stock
LR003440 SHIELD - DOOR LOCK $145.58 To Order
Photo Part No Description Price (each) Stock
FQZ000205 ROD $8.44 To Order
Photo Part No Description Price (each) Stock
FQW500022PMA COVER - DOOR INSIDE HANDLE $7.86 To Order
Photo Part No Description Price (each) Stock
LR018253 CAP - HANDLE $19.45 To Order
LR018254 CAP - HANDLE $22.56 To Order
LR030193 CAP - HANDLE $20.60 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CXE500050 GASKET - DOOR HANDLE $19.89 To Order
Photo Part No Description Price (each) Stock
CXE500040 GASKET - DOOR HANDLE $18.91 To Order
Photo Part No Description Price (each) Stock
LR018297 REINFORCEMENT - DOOR HANDLE $107.44 To Order
LR018296 REINFORCEMENT - DOOR HANDLE $128.75 To Order
Photo Part No Description Price (each) Stock
LR013916 CABLE $18.83 To Order
Photo Part No Description Price (each) Stock
FQZ500073 CABLE $19.04 To Order
View All

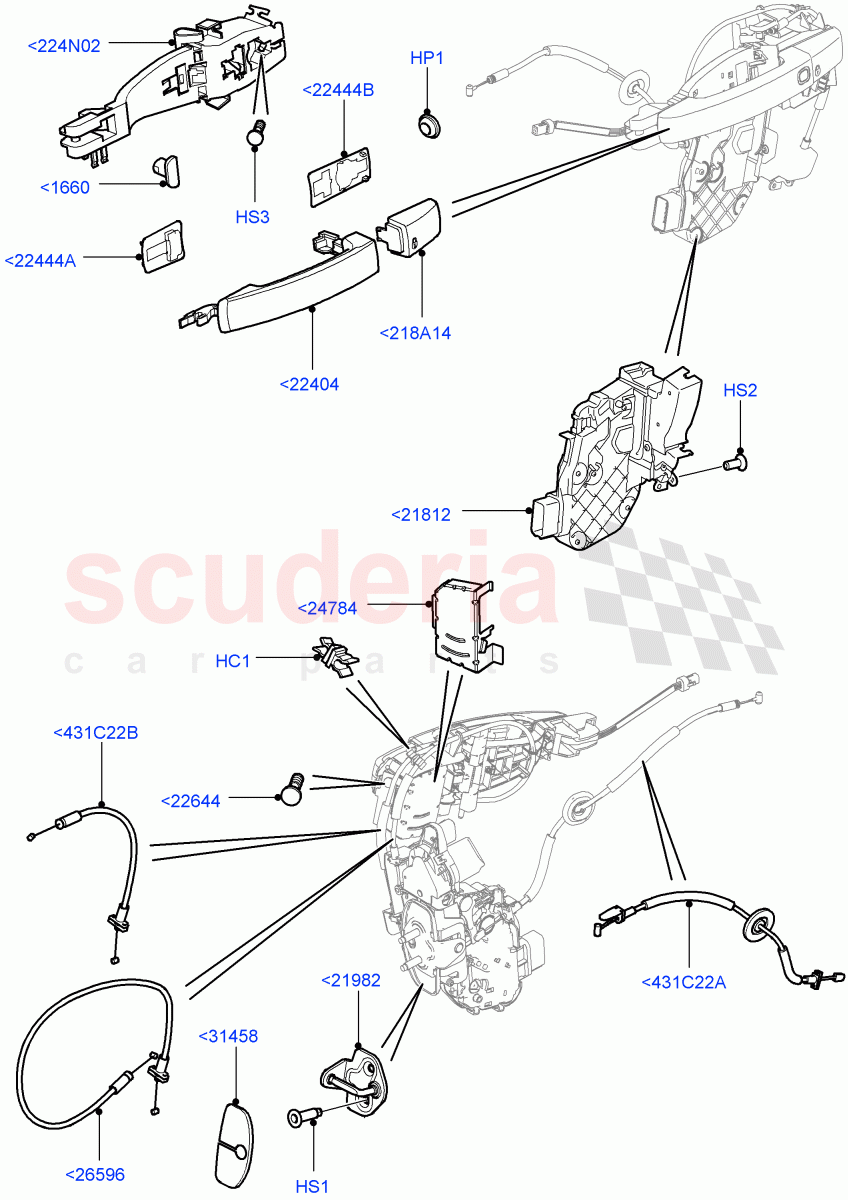

Front Door Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<218A14 LR018253
CAP - HANDLE
LH, Oberon, With Lock Barrel Aperture / From: AA000001 / To: BA999999 		$19.45 1
<218A14 LR018254
CAP - HANDLE
RH, Less Lock Barrel Aperture, Oberon / From: AA000001 / To: BA999999 		$22.56 1
<218A14 LR030193
CAP - HANDLE
LH, Primed, With Lock Barrel Aperture / From: CA000001 		$20.60 1
<218A14 LR030194
CAP - HANDLE
RH, Less Lock Barrel Aperture, Primed, RH/LH / From: CA000001 		$16.95 1
<224N02 LR018297
REINFORCEMENT - DOOR HANDLE
RH, Handle / From: AA000001 		$107.44 1
<224N02 LR018296
REINFORCEMENT - DOOR HANDLE
LH, Handle / From: AA000001 		$128.75 1
<431C22A LR013916
CABLE
Door Release Control, Internal / From: AA000001 		$18.83 2
<431C22B FQZ500073
CABLE
Door Release Control, External / From: AA000001 		$19.04 2
<1660 ABS780160
SPACER - HANDLE ASSIST
From: AA000001 		$0.43 2
<21812 LR014101
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / LH / From: AA000001 / To: BA999999 		$241.96 1
<21812 LR013801
LATCH - FRONT DOOR
Keyless Entry/Strt-Pass-Jap Script / LH / From: AA000001 		$227.44 1
<21812 LR014100
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / RH / From: AA000001 / To: DA999999 		$236.01 1
<21812 LR013800
LATCH - FRONT DOOR
Keyless Entry/Strt-Pass-Jap Script / RH / From: AA000001 		$277.05 1
<21812 LR011277
FRONT DOOR
With Keyless Start / LH / From: AA000001 / To: BA999999 		$178.82 1
<21812 LR011275
LATCH - FRONT DOOR
With Keyless Start / RH / From: AA000001 		$178.82 1
<21812 LR011278
LATCH - FRONT DOOR
Keyless Start - Japanese Script / RH / From: AA000001 		$211.31 1
<21812 LR011280
LATCH - FRONT DOOR
Keyless Start - Japanese Script / LH / From: AA000001 		$188.72 1
<21812 LR071636
LATCH - FRONT DOOR
With Keyless Start / LH / From: CA000001 		$235.75 1
<21812 LR071637
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / LH / From: CA000001 / To: CA999999 		$254.39 1
<21812 LR072420
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / RH / From: EA000001 / To: GA999999 		$268.35 1
<21812 LR091525
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / RH / From: HA000001 		$244.31 1
<21812 LR091526
LATCH - FRONT DOOR
Keyless Entry/Start - Passive / LH / From: DA000001 		$244.31 1
<21982 FQB500041PMA
STRIKER - DOOR LOCKING MECHANISM
From: AA000001 / To: BA709599 		$43.80 2
<21982 LR031915
STRIKER - DOOR LOCKING MECHANISM
From: BA709600 		$8.15 2
<22404 LR019308
HANDLE - DOOR - OUTER
With Keyless Start / Oberon, RH/LH / From: AA000001 / To: AA224293 		$48.33 2
<22404 LR019764
HANDLE - DOOR - OUTER
With Keyless Entry/Start - Passive / Oberon, RH/LH / From: AA000001 / To: BA888887 		$221.92 2
<22404 LR020928
HANDLE - DOOR - OUTER
With Keyless Start / Oberon, RH/LH / From: AA224294 / To: BA999999 		$168.72 2
<22404 LR020810
HANDLE - DOOR - OUTER
With Keyless Entry/Start - Passive / Oberon, RH/LH / From: BA888888 / To: BA999999 		$592.49 2
<22404 LR030195
HANDLE - DOOR - OUTER
With Keyless Entry/Start - Passive / Primed, RH/LH / From: CA000001 		$583.06 2
<22404 LR030196
HANDLE - DOOR - OUTER
With Keyless Start / Primed, RH/LH / From: CA000001 		$89.90 2
<22444A CXE500050
GASKET - DOOR HANDLE
Front, Handle / From: AA000001 		$19.89 2
<22444B CXE500040
GASKET - DOOR HANDLE
Handle, Rear / From: AA000001 		$18.91 2
<22644 LR003456
INSERT - BEZEL
LH Side Only, With Lock Barrel Aperture / From: AA000001 		$1.91 1
<24784 LR003440
SHIELD - DOOR LOCK
Door Lock Shields / LH Side Only / From: AA000001 		$145.58 1
<26596 FQZ000205
ROD
LH Side Only, Lock Barrel / From: AA000001 		$8.44 1
<31458 FQW500022PMA
COVER - DOOR INSIDE HANDLE
Striker / From: AA000001 		$7.86 2
HC1 LR003446
CLIP
Cable Tie / From: AA000001 		$1.14 2
HP1 DBP5118
PLUG
Door, LH Side Only / From: AA000001 		$10.11 1
HS1 FYP500020
SCREW
M8 X 25MM, Striker / From: AA000001 		$0.52 4
HS2 FYP500010
SCREW
Latch, M6 x 12MM / From: AA000001
IN STOCK 		$2.29 6
HS3 RYP500020
SCREW
M5 X 12MM, Reinforcement, RH Side Only / From: AA000001 		$0.52 1
