Name: Rear Brake Discs And Calipers (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Rear Brake Discs And Calipers (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Rear Brake Discs And Calipers (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

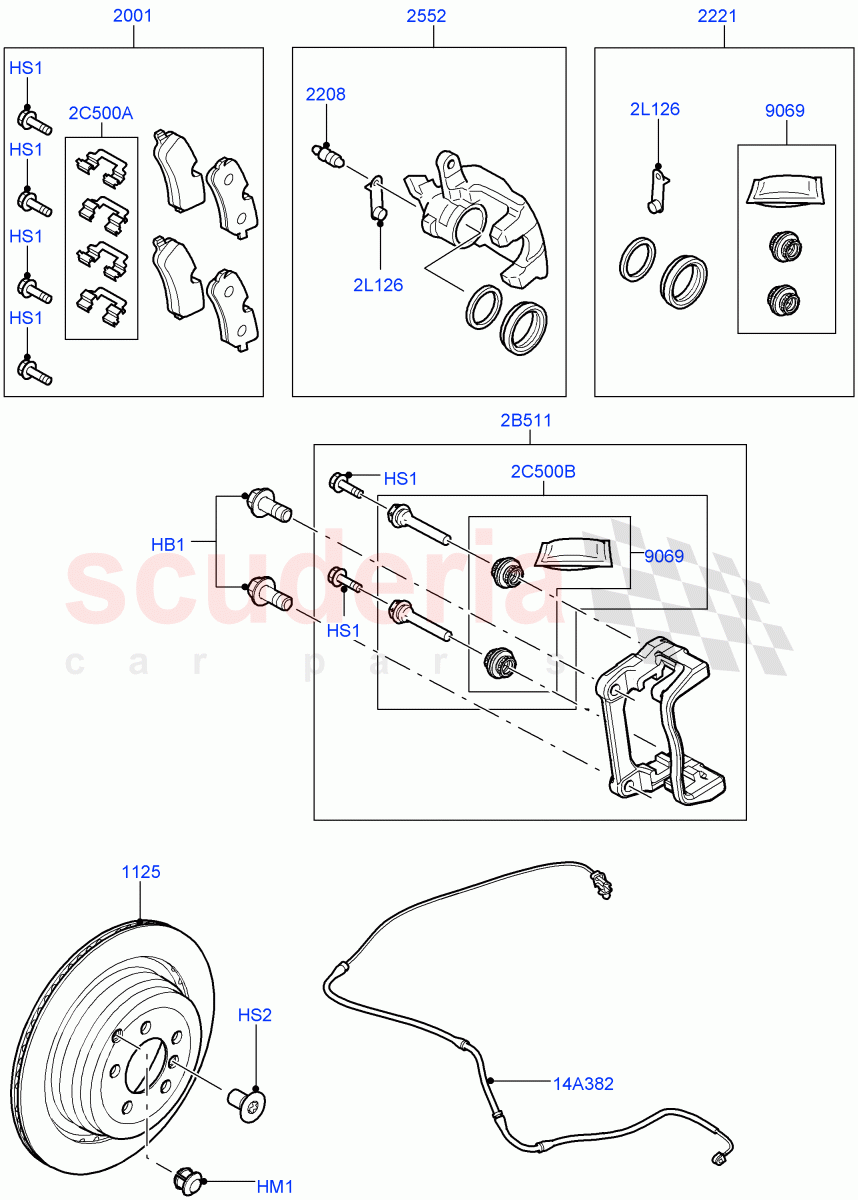

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	$3.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SOD000010	GROMMET	$2.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	$2.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SYP100241	SCREW	$3.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR189042	DISC - BRAKE	$224.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015577	BRAKE PADS - WITH SPRINGS	$152.47	To Order
	LR025739	KIT - BRAKE LINING	$125.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015520	KIT - CALIPER SEAL	$28.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015581	HOUSING	$683.97	To Order
	LR015583	HOUSING	$683.97	To Order
	LR042735	CALIPER - BRAKE - LESS PADS	$309.57	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016813	BRACKET	$162.43	To Order
	LR016813	BRACKET	$162.43	To Order
	LR020487	BRACKET	$145.98	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	$1.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SOE000025	WIRE - BRAKE PAD WEAR WARNING	$33.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025740	KIT - BRAKE PAD ATTACHMENT	$44.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017032	KIT - LOCATING PIN BOLTS	$22.76	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	SYG000013	BOLT IN STOCK	SYG000013 BOLT External Torx Head, Knuckle To Calliper, M12 X 35MM / From: AA000001 IN STOCK	$3.52	4
HM1	SOD000010	GROMMET IN STOCK	SOD000010 GROMMET Plug / From: AA000001 IN STOCK	$2.85	2
HS1	SMV500010	SCREW IN STOCK	SMV500010 SCREW Pin - Slide / From: AA000001 IN STOCK	$2.75	4
HS2	SYP100241	SCREW IN STOCK	SYP100241 SCREW Disc - Brake, M10 X 1.5 / From: AA000001 IN STOCK	$3.11	2
2B511	LR016813	BRACKET	LR016813 BRACKET From: AA000001 / To: AA222221	$162.43	2
2B511	LR016813	BRACKET	LR016813 BRACKET RH / From: AA222222 / To: CA999999	$162.43	1
2B511	LR020487	BRACKET	LR020487 BRACKET LH / From: AA222222 / To: CA999999	$145.98	1
2B511	LR042723	BRACKET - BRAKE CALIPER	LR042723 BRACKET - BRAKE CALIPER Brake Calipers - Red / RH / From: DA000001	$210.62	1
2B511	LR042738	BRACKET - BRAKE CALIPER	LR042738 BRACKET - BRAKE CALIPER Brake Calipers - Red / LH / From: DA000001	$208.16	1
2B511	LR020487	BRACKET	LR020487 BRACKET Standard Duty FRT/RR Calp & Pads / LH / From: DA000001	$145.98	1
2B511	LR016813	BRACKET	LR016813 BRACKET Standard Duty FRT/RR Calp & Pads / RH / From: DA000001	$162.43	1
2C500A	LR025740	KIT - BRAKE PAD ATTACHMENT	LR025740 KIT - BRAKE PAD ATTACHMENT Includes Clips / From: BA716140	$44.25	1
2C500B	LR017032	KIT - LOCATING PIN BOLTS	LR017032 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: AA000001	$22.76	2
2L126	SEE500100	CAP - BLEED SCREW IN STOCK	SEE500100 CAP - BLEED SCREW From: AA000001 IN STOCK	$1.94	2
14A382	SOE000025	WIRE - BRAKE PAD WEAR WARNING IN STOCK	SOE000025 WIRE - BRAKE PAD WEAR WARNING From: AA000001 IN STOCK	$33.00	1
1125	LR189042	DISC - BRAKE	LR189042 DISC - BRAKE From: AA000001	$224.22	2
2001	LR015577	BRAKE PADS - WITH SPRINGS	LR015577 BRAKE PADS - WITH SPRINGS Axle Set / From: AA000001 / To: BA716139	$152.47	1
2001	LR025739	KIT - BRAKE LINING	LR025739 KIT - BRAKE LINING Axle Set / From: BA716140	$125.01	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: AA000001 IN STOCK	$6.74	2
2221	LR015520	KIT - CALIPER SEAL	LR015520 KIT - CALIPER SEAL Caliper Set, To Caliper / From: AA000001	$28.32	2
2552	LR015581	HOUSING	LR015581 HOUSING RH / From: AA000001 / To: CA999999	$683.97	1
2552	LR015583	HOUSING	LR015583 HOUSING LH / From: AA000001 / To: CA999999	$683.97	1
2552	LR042735	CALIPER - BRAKE - LESS PADS	LR042735 CALIPER - BRAKE - LESS PADS Brake Calipers - Red / RH / From: DA000001	$309.57	1
2552	LR042739	CALIPER - BRAKE - LESS PADS	LR042739 CALIPER - BRAKE - LESS PADS Brake Calipers - Red / LH / From: DA000001	$309.57	1
2552	LR015581	HOUSING	LR015581 HOUSING Standard Duty FRT/RR Calp & Pads / RH / From: DA000001	$683.97	1
2552	LR015583	HOUSING	LR015583 HOUSING Standard Duty FRT/RR Calp & Pads / LH / From: DA000001	$683.97	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot, Caliper Set / From: AA000001	$24.72	2

Rear Brake Discs And Calipers (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Rear Brake Discs And Calipers (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
