Parking Brake (Brake Shoes) ((V) Fromaa000001, (V) Toba701291)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA701291)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYP500020 SCREW $2.06 IN STOCK
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR016366 BRAKE - REAR $270.43 To Order
LR031947 KIT - BRAKE LINING $124.58 To Order
LR031947 KIT - BRAKE LINING $124.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SXS500011 SCREW - ADJUSTING $19.72 To Order
Photo Part No Description Price (each) Stock
SMN500020 KIT - PARKING BRAKE SPRING REPAIR $41.92 To Order
Photo Part No Description Price (each) Stock
SFS500012 BRAKE SHOE $101.00 To Order
LR025151 KIT - BRAKE LINING $126.45 To Order
Photo Part No Description Price (each) Stock
LR013690 PLATE - BRAKE BACK $121.23 To Order
LR015246 PLATE - BRAKE BACK $124.34 To Order
LR013692 PLATE - BRAKE BACK $111.07 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SXR500010 ROD - PARKING PAWL ACTUATING $16.14 To Order
Photo Part No Description Price (each) Stock
SMN500012 KIT $17.46 To Order
View All

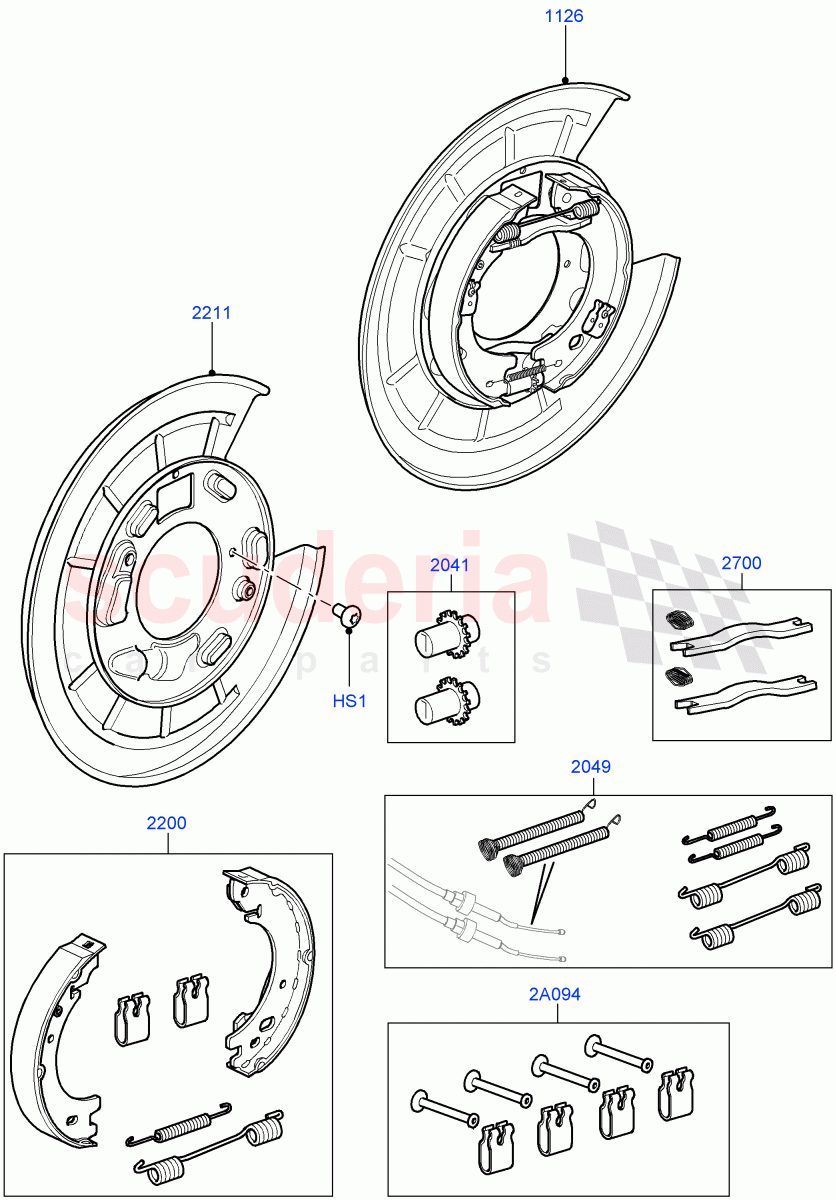

Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA701291) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 SYP500020
SCREW
M6 X 10MM, Shield, Torx / From: AA000001 / To: AA222239
IN STOCK 		$2.06 6
HS1 LR018509
SCREW
M6 X 10MM, Shield, Torx / From: AA222240
IN STOCK 		$1.24 6
2A094 SMN500012
KIT
From: AA000001 		$17.46 1
1126 LR016366
BRAKE - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Complete Assembly / From: AA000001 		$270.43 1
1126 LR031947
KIT - BRAKE LINING
3.6L V8 32V DOHC EFi Diesel Lion / LH, Complete Assembly / From: AA000001 		$124.58 1
1126 LR031947
KIT - BRAKE LINING
3.6L V8 32V DOHC EFi Diesel Lion / RH, Complete Assembly / From: AA000001 		$124.58 1
1126 LR016365
BRAKE - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH, Complete Assembly / From: AA000001 		$226.52 1
2041 SXS500011
SCREW - ADJUSTING
From: AA000001 		$19.72 1
2049 SMN500020
KIT - PARKING BRAKE SPRING REPAIR
From: AA000001 		$41.92 1
2200 SFS500012
BRAKE SHOE
From: AA000001 / To: AA256675 		$101.00 2
2200 LR025151
KIT - BRAKE LINING
From: AA256676 		$126.45 2
2211 LR013690
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: AA000001 / To: AA245590 		$121.23 1
2211 LR015246
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA000001 / To: AA245590 		$124.34 1
2211 LR013692
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / LH / From: AA000001 / To: AA245590 		$111.07 1
2211 LR015247
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA000001 / To: AA245590 		$108.03 1
2211 LR020490
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: AA245591 / To: AA256675 		$112.28 1
2211 LR020492
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / LH / From: AA245591 / To: AA256675 		$102.87 1
2211 LR020491
Plate - Brake Back
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA245591 / To: AA256675 		- 1 Enquire
2211 LR020493
Plate - Brake Back
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA245591 / To: AA256675 		- 1 Enquire
2211 LR025152
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: AA256676 / To: DA796535 		$115.47 1
2211 LR025154
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / LH / From: AA256676 / To: BA999999 		$105.81 1
2211 LR025153
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA256676 		$114.00 1
2211 LR025155
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA256676 		$106.92 1
2211 LR048810
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: DA796536 		$120.35 1
2211 LR048812
PLATE - BRAKE BACK
3.6L V8 32V DOHC EFi Diesel Lion / LH / From: CA000001 		$120.35 1
2700 SXR500010
ROD - PARKING PAWL ACTUATING
From: AA000001 		$16.14 1
