Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Fuel Tank & Related Parts (Vehicles Fitted With 10MY Fuel Tank, With 2 Vent Pipes, This Section...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
WYP500100 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
CN100509 CLIP $1.60 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.86 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
WJ110006 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.64 To Order
Photo Part No Description Price (each) Stock
LR013746 TANK - FUEL $1,194.88 To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER $36.15 To Order
Photo Part No Description Price (each) Stock
WMJ500181 PIPE - FUEL FILLER $365.34 To Order
Photo Part No Description Price (each) Stock
LR013751 COVER - DUST $89.63 To Order
Photo Part No Description Price (each) Stock
LR010620 HOSE - FILLER PIPE $18.22 To Order
Photo Part No Description Price (each) Stock
LR019275 PLUG $8.53 To Order
Photo Part No Description Price (each) Stock
WFN000014 FUEL TANK $307.20 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.56 IN STOCK
Photo Part No Description Price (each) Stock
WFU500020 BRACKET $3.31 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.36 To Order
Photo Part No Description Price (each) Stock
LR015385 HOSE $596.07 To Order
Photo Part No Description Price (each) Stock
LR015384 HOSE $157.33 To Order
Photo Part No Description Price (each) Stock
LR021822 CAP - FILLER $40.16 To Order
Photo Part No Description Price (each) Stock
LR013771 RING - RETAINING $31.16 To Order
Photo Part No Description Price (each) Stock
LR013917 TUBE - FUEL FEED $54.13 To Order
Photo Part No Description Price (each) Stock
LR016261 TUBE - BREATHER $54.74 To Order
Photo Part No Description Price (each) Stock
LR020971 JUMPER WIRING $100.35 To Order
Photo Part No Description Price (each) Stock
SPV500020 CLIP $1.09 To Order
Photo Part No Description Price (each) Stock
LR014156 CLIP - PARKING BRAKE CABLE $1.92 To Order
Photo Part No Description Price (each) Stock
WFZ500034 SHIELD $34.20 To Order
Photo Part No Description Price (each) Stock
WFZ500130 SHIELD $71.05 To Order
View All

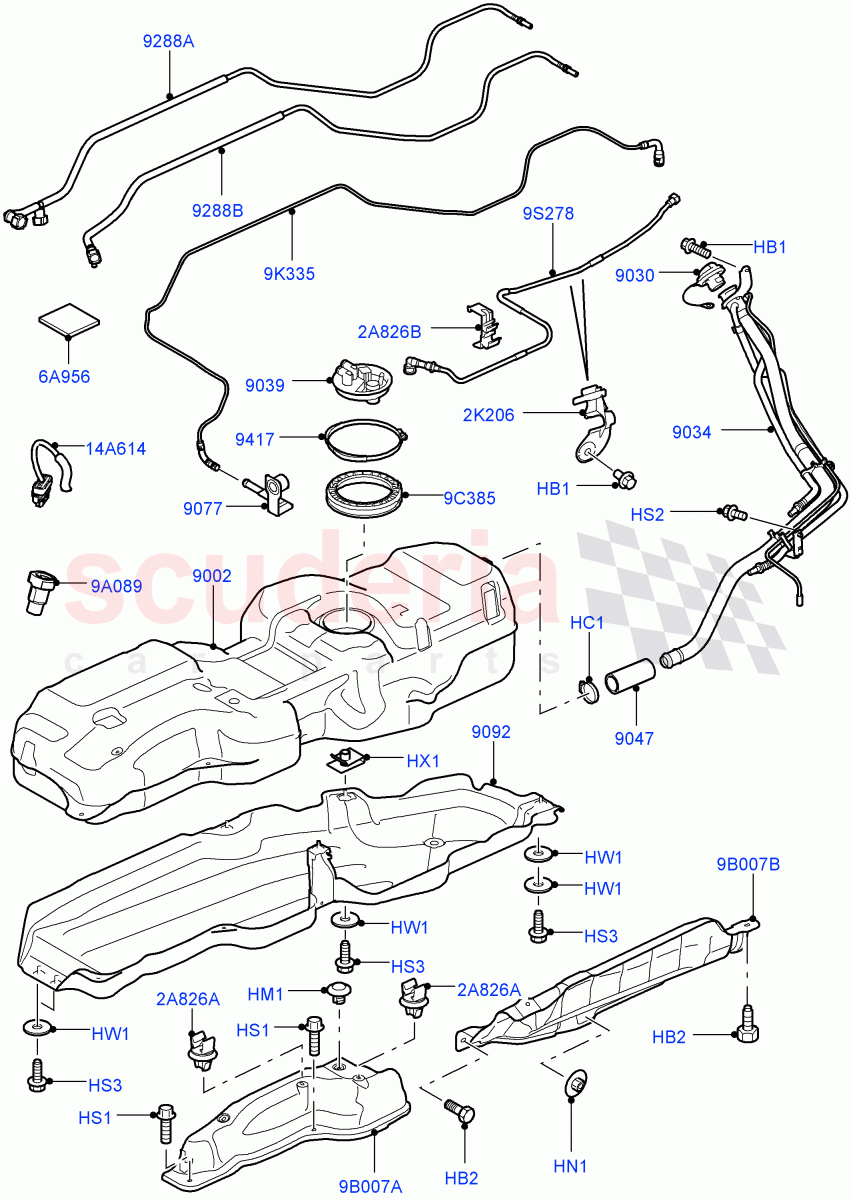

Fuel Tank & Related Parts (Vehicles Fitted With 10MY Fuel Tank, With 2 Vent Pipes, This Section Refers To TSB LTB00280) (3.6L V8 32V DOHC EFi Diesel Lion) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SN106127L
BOLT
M6 / From: 7A000001 		$0.65 4
HB2 WYP500100
SCREW
Hexagonal Head, M6 / From: 7A000001 		$0.79 6
HC1 CN100509
CLIP
Hose Clamp / From: 7A000001 		$1.60 1
HM1 WYQ000010
RIVET - PLASTIC
Plastic, Rivet Type / From: 7A000001
IN STOCK 		$5.86 2
HN1 WYH500050
NUT - LOCKING
M5 / From: 7A000001
IN STOCK 		$2.68 2
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: 7A000001
IN STOCK 		$0.96 2
HS2 FS108126
SCREW
M8 x 12MM / From: 7A000001
IN STOCK 		$1.36 4
HS3 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: 7A000001 		$2.83 6
HW1 WJ110006
WASHER
10 MM / From: 7A000001 		$1.41 7
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring / From: 7A000001 		$1.64 2
2A826A SPV500020
CLIP
For 		$1.09 2
2A826B LR014156
CLIP - PARKING BRAKE CABLE
From: 7A000001 		$1.92 3
2K206 WFU500020
BRACKET
From: 7A000001 		$3.31 1
6A956 LR025789
FOAM PAD - ENERGY ABSORBING
From: 7A000001 		$23.36 1
9A089 LR021822
CAP - FILLER
Less Fuel Fired Heater / From: 7A000001 		$40.16 1
9B007A WFZ500034
SHIELD
From: 7A000001 		$34.20 1
9B007B WFZ500130
SHIELD
From: 7A000001 		$71.05 1
9C385 LR013771
RING - RETAINING
From: 7A000001 		$31.16 1
9K335 LR013917
TUBE - FUEL FEED
Fuel Tank To Fuel Burning Heater / From: 7A000001 		$54.13 1
9S278 LR016261
TUBE - BREATHER
Breather Pipe, Vapour Line / From: 7A000001 		$54.74 1
14A614 LR020971
JUMPER WIRING
From: 7A000001 		$100.35 1
9002 LR013746
TANK - FUEL
From: 7A000001 		$1,194.88 1
9030 LR021560
CAP - FUEL TANK FILLER
From: 7A000001 		$36.15 1
9034 WMJ500181
PIPE - FUEL FILLER
From: 7A000001 		$365.34 1
9039 LR013751
COVER - DUST
From: 7A000001 		$89.63 1
9047 LR010620
HOSE - FILLER PIPE
From: 7A000001 		$18.22 1
9077 LR019275
PLUG
With Fresh Air Heater / From: 7A000001 		$8.53 1
9092 WFN000014
FUEL TANK
From: 7A000001 		$307.20 1
9288A LR015385
HOSE
Fuel Filter Outlet To Fuel Tank, Return / From: 7A000001 		$596.07 1
9288B LR015384
HOSE
Feed, From Fuel Tank To Under Floor Pipes / From: 7A000001 		$157.33 1
9417 LR117476
GASKET
O-Ring / From: 7A000001
IN STOCK 		$10.56 1
