Fuel Lines (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Fuel Lines (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC500240 CLIP $3.03 To Order
Photo Part No Description Price (each) Stock
WYC500280 CLIP $3.01 To Order
Photo Part No Description Price (each) Stock
WYC500270 CLIP $5.74 IN STOCK
Photo Part No Description Price (each) Stock
WYC100880 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
FA106127 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
WJP502450 PIPE - FUEL $120.32 To Order
Photo Part No Description Price (each) Stock
WKU500150 SHIELD - FUEL TUBES $7.29 To Order
Photo Part No Description Price (each) Stock
LR015417 SHIELD $74.63 To Order
LR031389 Shield - Fuel Tubes Enquire To Order
LR031785 SHIELD - FUEL TUBES $66.09 To Order
Photo Part No Description Price (each) Stock
JEX500020 PUMP - FUEL $377.55 To Order
Photo Part No Description Price (each) Stock
WJU500410 BRACKET $35.01 To Order
Photo Part No Description Price (each) Stock
WJP502230 TUBE $60.35 To Order
Photo Part No Description Price (each) Stock
WJC500230 CLIP $5.47 To Order
Photo Part No Description Price (each) Stock
WJC500240 CLIP $1.94 To Order
Photo Part No Description Price (each) Stock
LR016986 PIPE - FUEL $335.14 To Order
Photo Part No Description Price (each) Stock
WJP502470 PIPE - FUEL $100.62 To Order
Photo Part No Description Price (each) Stock
WJP502390 TUBE - FUEL FEED $91.44 To Order
LR028028 PIPE - FUEL $194.31 To Order
Photo Part No Description Price (each) Stock
WJP501042 TUBE - FUEL FEED $86.96 To Order
View All

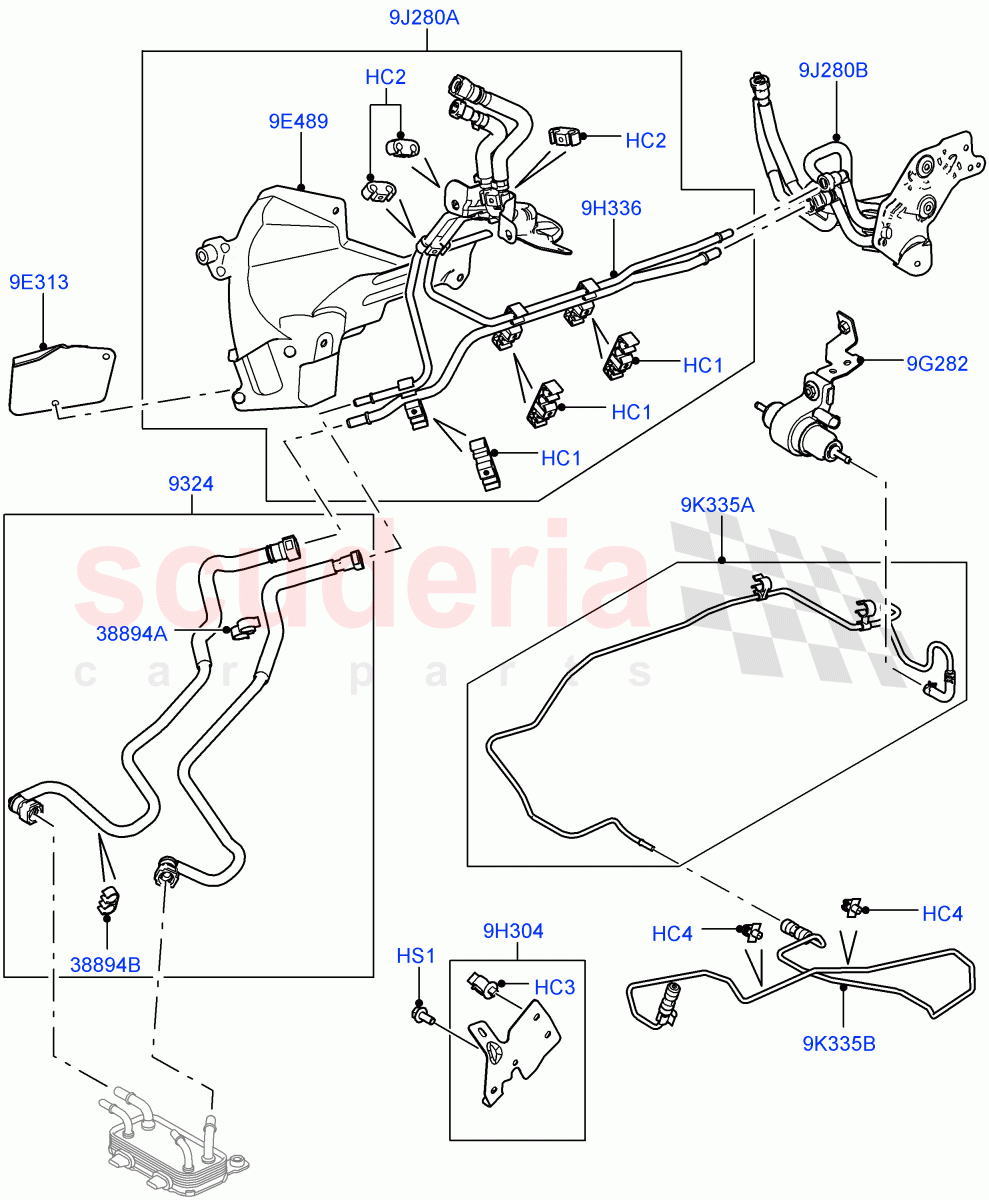

Fuel Lines (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC500240
CLIP
4 Way, Tube Support / From: AA000001 		$3.03 3
HC2 WYC500280
CLIP
Double, 		$3.01 3
HC3 WYC500270
CLIP
For
IN STOCK 		$5.74 3
HC4 WYC100880
CLIP
With Fuel Fired Heater / Tube Support / From: AA000001 		$1.36 2
HS1 FA106127
SCREW
M6 x 12MM / From: AA000001 		$0.47 1
9E313 WKU500150
SHIELD - FUEL TUBES
From: AA000001 		$7.29 1
9E489 LR015417
SHIELD
Under Floor / From: AA000001 / To: BA291912 		$74.63 1
9E489 LR031389
Shield - Fuel Tubes
Under Floor / From: BA291913 / To: BA298062 		- 1 Enquire
9E489 LR031785
SHIELD - FUEL TUBES
Under Floor / From: BA298063 / To: BA999999 		$66.09 1
9G282 JEX500020
PUMP - FUEL
With Fuel Fired Heater / From: AA000001 		$377.55 1
9H304 WJU500410
BRACKET
3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 / To: AA999999 		$35.01 1
9H336 WJP502230
TUBE
To Engine, Under Floor / From: AA000001 		$60.35 1
9J280A LR016986
PIPE - FUEL
To Engine, Under Floor / From: AA000001 		$335.14 1
9J280B WJP502470
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Return / From: AA000001 		$100.62 1
9K335A WJP502390
TUBE - FUEL FEED
With Fuel Fired Heater / Supply / From: AA000001 / To: AA237069 		$91.44 1
9K335A LR028028
PIPE - FUEL
With Fuel Fired Heater / Supply / From: AA237070 		$194.31 1
9K335B WJP501042
TUBE - FUEL FEED
With Fuel Fired Heater / Feed, To Fuel Fired Heater / From: AA000001 		$86.96 1
9324 WJP502450
PIPE - FUEL
For Fuel Cooler / From: AA000001 		$120.32 1
38894A WJC500230
CLIP
From: AA000001 		$5.47 1
38894B WJC500240
CLIP
From: AA000001 		$1.94 1
