Name: Cylinder Head (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Cylinder Head (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

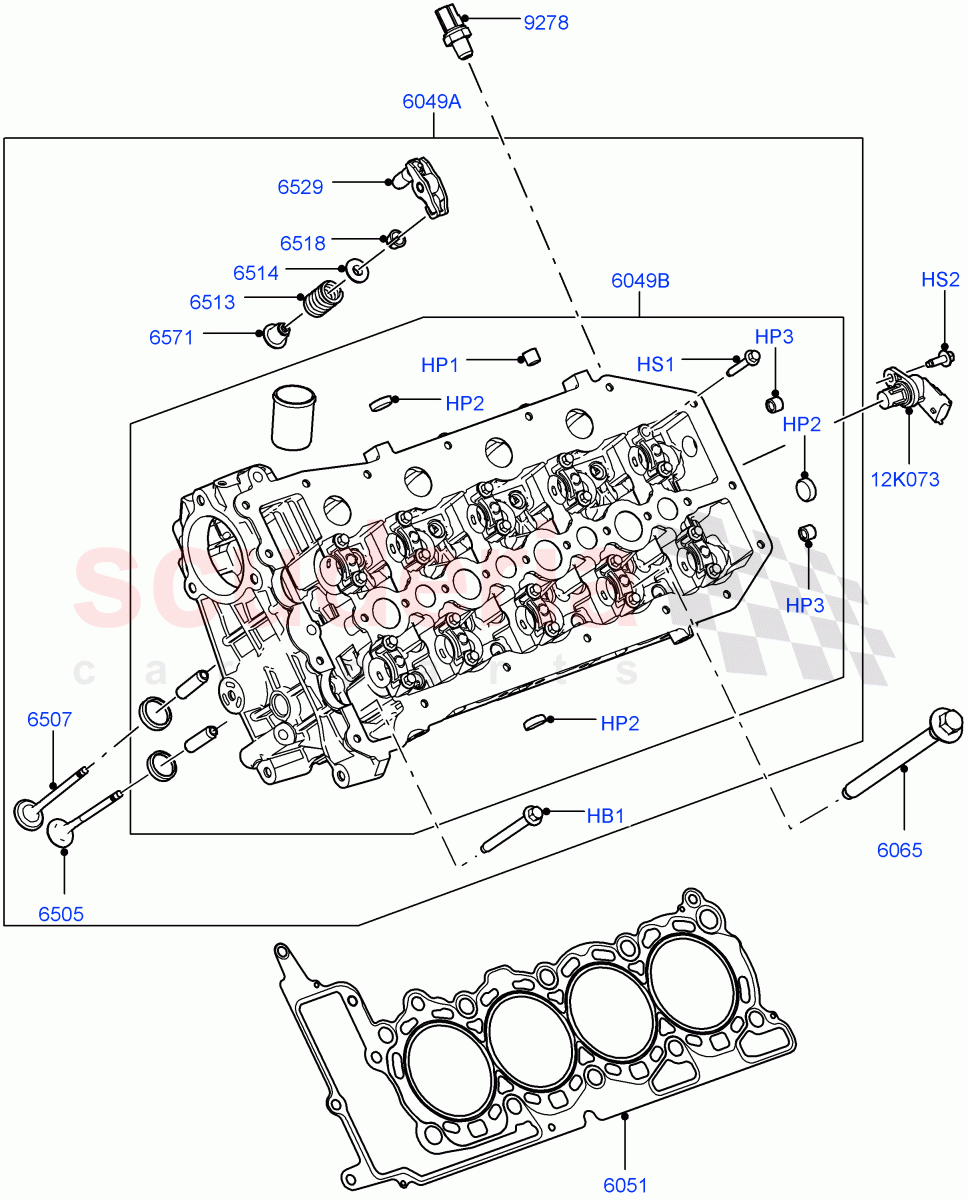

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	$4.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000780	PLUG - ENGINE	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	1418990	GASKET - CYLINDER HEAD	$112.66	To Order
	1418991	GASKET - CYLINDER HEAD	$112.66	To Order
	1418992	GASKET - CYLINDER HEAD	$112.66	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	$32.51	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	$21.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006720	SPRING - VALVE	$7.46	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	1041831	COLLET - VALVE SPRING RETAINER	$7.26	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	$33.71	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	$14.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000633	SWITCH - OIL PRESSURE	$15.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002436	CYLINDER HEAD	$3,332.47	To Order

Photo	Part No	Description	Price (each)	Stock
	1418997	CYLINDER HEAD	$2,053.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000634	SENSOR - CAMSHAFT POSITION	$40.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1419374	BOLT	1419374 BOLT M8 X 75MM / From: AA000001	$4.14	3
HP1	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND	$1.24	3
HP2	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM / From: AA000001	$6.56	3
HP3	LR000780	PLUG - ENGINE	LR000780 PLUG - ENGINE 10 MM / From: AA000001	$1.13	2
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM / From: AA000001	$3.32	22
HS2	4364422	SCREW	4364422 SCREW M6 X 16MM / From: AA000001	$1.36	1
12K073	LR000634	SENSOR - CAMSHAFT POSITION	LR000634 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: AA000001	$40.15	1
6049A	LR002436	CYLINDER HEAD	LR002436 CYLINDER HEAD LH, With Valves / From: AA000001	$3,332.47	1
6049B	1418997	CYLINDER HEAD	1418997 CYLINDER HEAD LH, Less Valves / From: AA000001	$2,053.59	1
6051	1418990	GASKET - CYLINDER HEAD	1418990 GASKET - CYLINDER HEAD LH, Grade 1 / From: AA000001	$112.66	-
6051	1418991	GASKET - CYLINDER HEAD	1418991 GASKET - CYLINDER HEAD LH, Grade 2 / From: AA000001	$112.66	-
6051	1418992	GASKET - CYLINDER HEAD	1418992 GASKET - CYLINDER HEAD LH, Grade 3 / From: AA000001	$112.66	-
6051	1418993	GASKET - CYLINDER HEAD	1418993 GASKET - CYLINDER HEAD LH, Grade 4 / From: AA000001	$112.66	-
6051	1418996	GASKET - CYLINDER HEAD	1418996 GASKET - CYLINDER HEAD LH, Grade 5 / From: AA000001	$112.66	-
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155 / From: AA000001	$4.48	10
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: AA000001	$32.51	8
6507	1311281	VALVE - INLET	1311281 VALVE - INLET From: AA000001	$21.65	8
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: AA000001	$7.46	16
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING From: AA000001	$3.89	16
6518	1041831	COLLET - VALVE SPRING RETAINER	1041831 COLLET - VALVE SPRING RETAINER From: AA000001	$7.26	32
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER From: AA000001	$33.71	16
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM From: AA000001	$14.00	16
9278	LR000633	SWITCH - OIL PRESSURE IN STOCK	LR000633 SWITCH - OIL PRESSURE From: AA000001 IN STOCK	$15.27	1

Cylinder Head (Lh) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
