Cylinder Block And Plugs (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Block And Plugs (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3026220 PIN $6.28 To Order
LR023119 DOWEL - PIN $1.21 To Order
Photo Part No Description Price (each) Stock
LR003996 PLUG $29.38 To Order
Photo Part No Description Price (each) Stock
LR003517 PLUG - ENGINE $8.37 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR022136 COVER - ACCESS HOLE $3.71 To Order
Photo Part No Description Price (each) Stock
4603182 DOWEL $28.86 To Order
Photo Part No Description Price (each) Stock
LR009793 SENSOR - CRANKSHAFT POSITION - CPS $183.91 To Order
Photo Part No Description Price (each) Stock
LR005539 RETAINER AND SEAL - CRANKSHAFT $249.66 To Order
View All

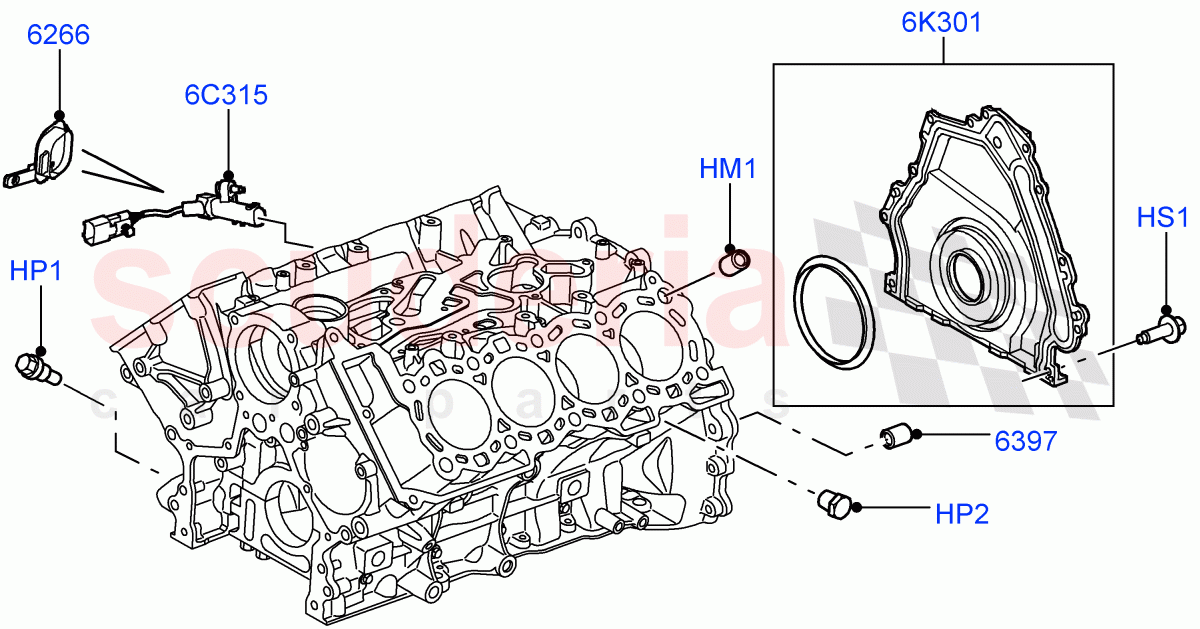

Cylinder Block And Plugs (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 3026220
PIN
4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel / From: AA000001 / To: AA254017 		$6.28 4
HM1 LR023119
DOWEL - PIN
4 Per Package, Hollow Type, M16 x 19MM, Pin - Dowell, Straight Dowel / From: AA254018 		$1.21 4
HP1 LR003996
PLUG
M12 / From: AA000001 		$29.38 1
HP2 LR003517
PLUG - ENGINE
1/4" x 18 NPSF / From: AA000001 		$8.37 1
HS1 4364422
SCREW
Engine Cover Rear, M6 X 16MM / From: AA000001 		$1.36 9
6C315 LR009793
SENSOR - CRANKSHAFT POSITION - CPS
From: AA000001 		$183.91 1
6K301 LR005539
RETAINER AND SEAL - CRANKSHAFT
Engine Cover Rear / From: AA000001 		$249.66 1
6266 LR022136
COVER - ACCESS HOLE
Access Hole Cover, Sensor - Crankshaft Position - CPS / From: AA000001 		$3.71 1
6397 4603182
DOWEL
15.7MM, Pin - Dowell / From: AA000001 		$28.86 2
