Electrical Wiring - Body And Rear (Bumper) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Electrical Wiring - Body And Rear (Bumper) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YPY500040 CLIP - WIRING $0.79 To Order
Photo Part No Description Price (each) Stock
LR015976 WIRE - JUMPER $59.78 To Order
LR015977 WIRE - JUMPER $78.45 To Order
LR015978 WIRE - JUMPER $519.89 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016237 WIRE - JUMPER $59.41 To Order
View All

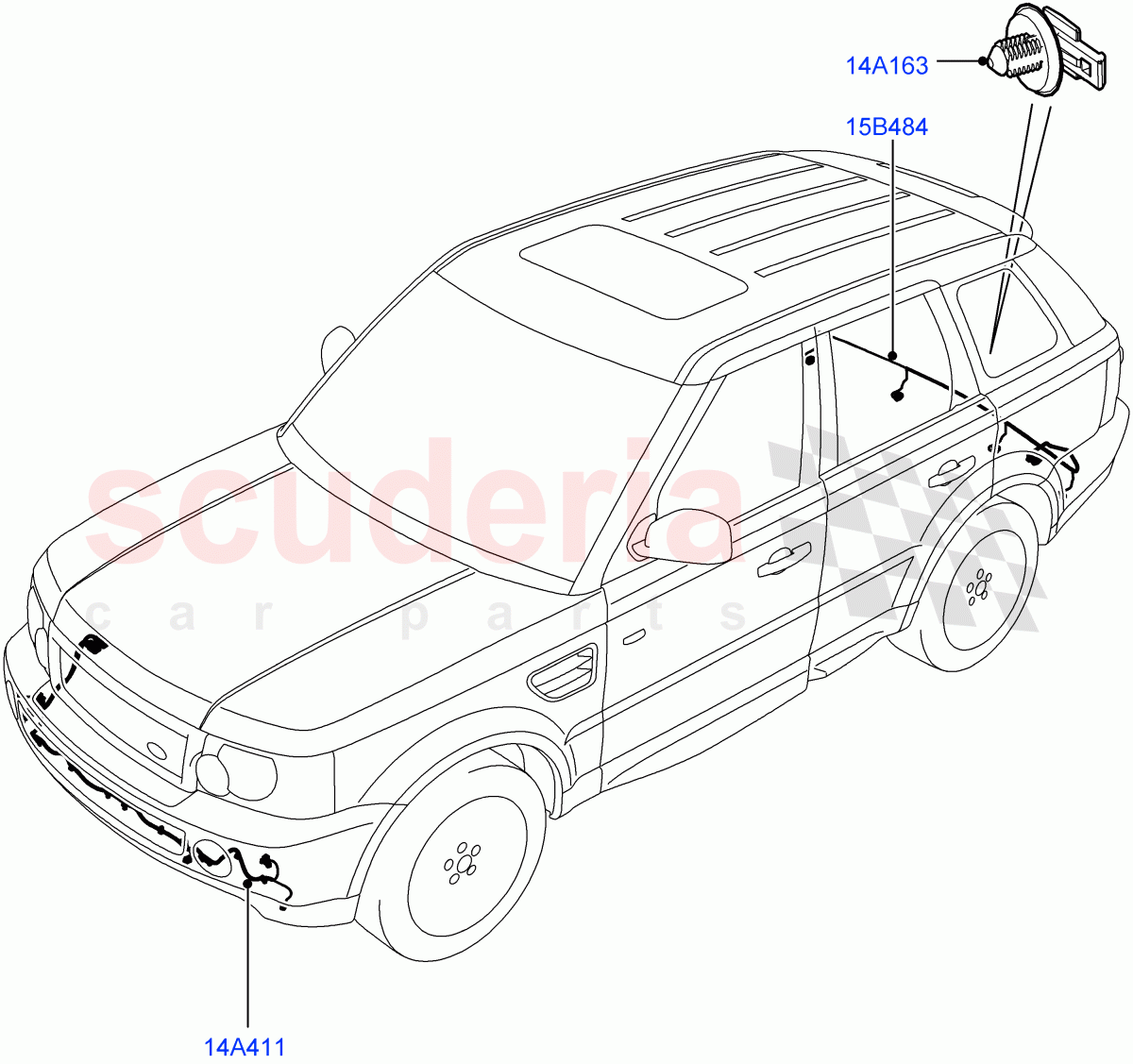

Electrical Wiring - Body And Rear (Bumper) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A163 YPY500040
CLIP - WIRING
Located In Rear Bumper / From: AA000001 		$0.79 1
14A411 LR015976
WIRE - JUMPER
Less Front Camera, Less Front Parking Aid / Located In Front Bumper / From: AA000001 / To: AA262641 		$59.78 1
14A411 LR015977
WIRE - JUMPER
Less Front Camera, With Front Parking Aid / Located In Front Bumper / From: AA000001 / To: AA262641 		$78.45 1
14A411 LR015978
WIRE - JUMPER
Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: AA000001 / To: AA262641 		$519.89 1
14A411 LR015979
WIRE - JUMPER
Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: AA000001 / To: AA262641 		$906.12 1
14A411 LR021102
WIRE - JUMPER
Less Front Camera, Less Front Parking Aid / Located In Front Bumper / From: AA262642 / To: BA999999 		$45.93 1
14A411 LR021103
WIRE - JUMPER
Less Front Camera, With Front Parking Aid / Located In Front Bumper / From: AA262642 / To: BA999999 		$170.85 1
14A411 LR021104
WIRE - JUMPER
Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: AA262642 / To: BA999999 		$1,146.66 1
14A411 LR021105
WIRE - JUMPER
Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: AA262642 / To: BA999999 		$619.84 1
14A411 LR030235
WIRE - JUMPER
Less Front Parking Aid, Rear View Camera-Fixed / Located In Front Bumper / From: CA000001 		$24.82 1
14A411 LR030236
WIRE - JUMPER
Less Camera System, With Front Parking Aid / Located In Front Bumper / From: CA000001 		$53.27 1
14A411 LR030237
WIRE - JUMPER
Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: CA000001 		$575.14 1
14A411 LR030238
WIRE - JUMPER
Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: CA000001 		$492.61 1
15B484 LR016237
WIRE - JUMPER
With Rear Parking Aid / Located In Rear Bumper / From: AA000001 		$59.41 1
