Rear Lamps ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Rear Lamps ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500840 NUT $1.07 To Order
Photo Part No Description Price (each) Stock
LR012499 NUT $6.64 To Order
Photo Part No Description Price (each) Stock
DA610058 SCREW - PAN HEAD - SELF-TAPPING $1.79 IN STOCK
Photo Part No Description Price (each) Stock
XZP500010 RETAINER $1.43 IN STOCK
Photo Part No Description Price (each) Stock
XZP500020 RETAINER $0.67 IN STOCK
Photo Part No Description Price (each) Stock
LR015289 LAMP - REAR- STOP AND FLASHER $446.73 To Order
LR015290 LAMP $446.73 To Order
LR015297 LAMP - REAR- STOP AND FLASHER $446.73 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
XFC500040 LAMP - LICENCE PLATE - WITH BULB $128.92 To Order
Photo Part No Description Price (each) Stock
XBP100210 HOLDER - BULB $145.43 To Order
Photo Part No Description Price (each) Stock
LR000863 BULB $5.46 IN STOCK
Photo Part No Description Price (each) Stock
LR000701 BULB - FLASHER LAMP $5.76 IN STOCK
Photo Part No Description Price (each) Stock
XZQ000060 BULB $6.14 IN STOCK
Photo Part No Description Price (each) Stock
LR015302 LAMP - REAR - HIGH MOUNTED $367.13 To Order
LR020147 LAMP - REAR - HIGH MOUNTED $173.85 To Order
View All

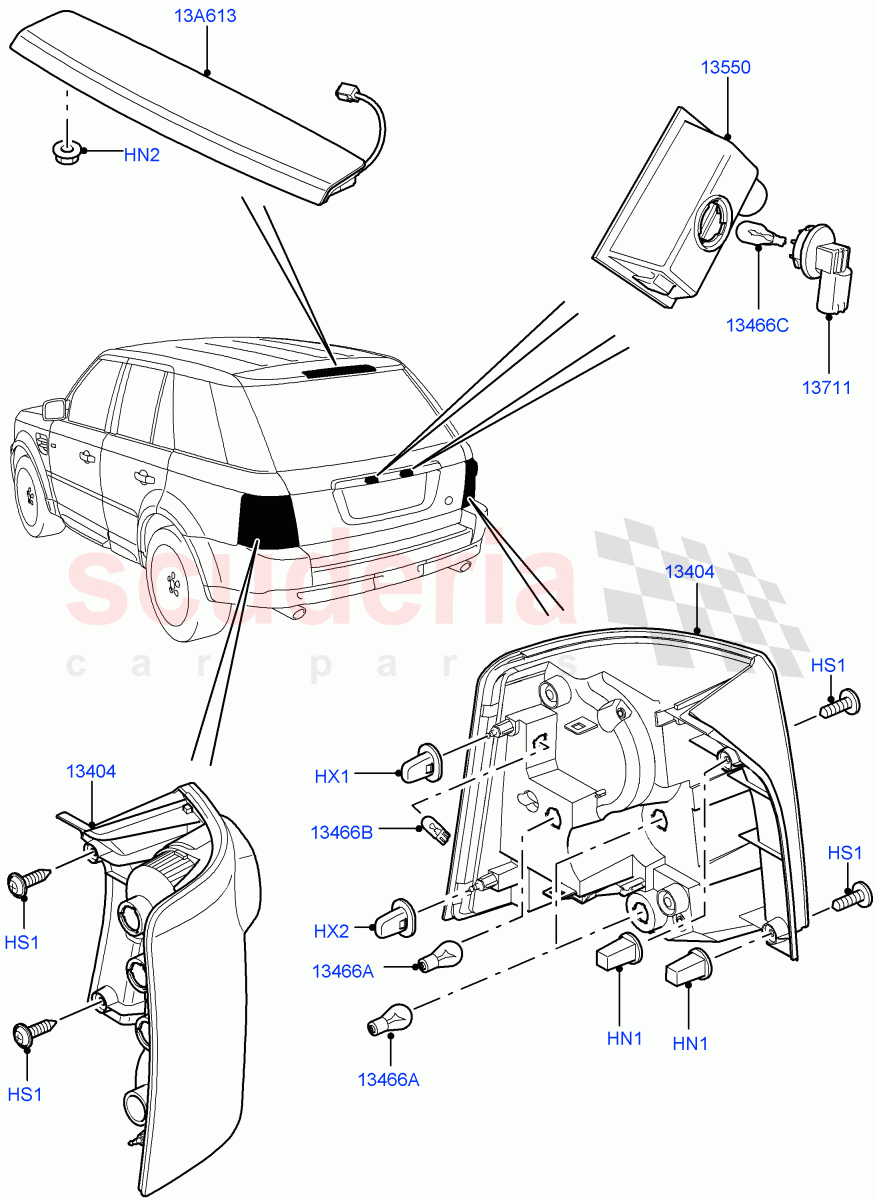

Rear Lamps ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500840
NUT
8.3MM, Rear Lamp / From: AA000001 		$1.07 4
HN2 LR012499
NUT
For High Mount Stop Lamp, M4 / From: AA000001 		$6.64 2
HS1 DA610058
SCREW - PAN HEAD - SELF-TAPPING
M5 X 16MM, Rear Lamp, Self Tapping / From: AA000001
IN STOCK 		$1.79 4
HX1 XZP500010
RETAINER
Upper / From: AA000001
IN STOCK 		$1.43 2
HX2 XZP500020
RETAINER
Lower / From: AA000001
IN STOCK 		$0.67 2
13A613 LR015302
LAMP - REAR - HIGH MOUNTED
high mounted stop lamp / From: AA000001 / To: AA225783 		$367.13 1
13A613 LR020147
LAMP - REAR - HIGH MOUNTED
high mounted stop lamp / From: AA225784 		$173.85 1
13404 LR015289
LAMP - REAR- STOP AND FLASHER
(-)"CDN/MEX/USA", Less Side Marker Lamps / RH / From: AA000001 / To: BA999999 		$446.73 1
13404 LR015290
LAMP
(-)"CDN/MEX/USA", Less Side Marker Lamps / LH / From: AA000001 / To: BA999999 		$446.73 1
13404 LR015297
LAMP - REAR- STOP AND FLASHER
(+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: AA000001 / To: BA999999 		$446.73 1
13404 LR015298
LAMP
(+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: AA000001 / To: BA999999 		$446.73 1
13404 LR030220
LAMP - REAR- STOP AND FLASHER
(-)"CDN/MEX/USA", Less Side Marker Lamps / RH / From: CA000001 / To: DA776813 		$487.37 1
13404 LR030221
LAMP - REAR- STOP AND FLASHER
(+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: CA000001 / To: DA776813 		$530.51 1
13404 LR162965
LAMP - REAR- STOP AND FLASHER
(-)"CDN/MEX/USA", Less Side Marker Lamps / RH / From: DA776814 		$486.27 1
13404 LR043995
LAMP - REAR- STOP AND FLASHER
(+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: DA776814 		$530.51 1
13404 LR043996
LAMP - REAR- STOP AND FLASHER
(-)"CDN/MEX/USA", Less Side Marker Lamps / LH / From: DA776814 		$530.51 1
13404 LR043997
LAMP - REAR- STOP AND FLASHER
(+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: DA776814 		$530.51 1
13404 LR030227
LAMP - REAR- STOP AND FLASHER
(-)"CDN/MEX/USA", Less Side Marker Lamps / LH / From: CA000001 / To: DA776813 		$487.37 1
13404 LR030229
LAMP - REAR- STOP AND FLASHER
(+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: CA000001 / To: DA776813 		$530.51 1
13466A LR000863
BULB
12V 21W, Fog Lamp, Reverse / From: AA000001
IN STOCK 		$5.46 -
13466B LR000701
BULB - FLASHER LAMP
(+)"CDN/MEX/USA", With Side Marker Lamps / 12V - 5W, Side Marker, W5W / From: AA000001
IN STOCK 		$5.76 -
13466C XZQ000060
BULB
12V-5W, Clear, Rear Licence Plate Lamp, W5W / From: AA000001
IN STOCK 		$6.14 -
13550 XFC500040
LAMP - LICENCE PLATE - WITH BULB
From: AA000001 		$128.92 2
13711 XBP100210
HOLDER - BULB
Rear Licence Plate Lamp / From: AA000001 		$145.43 2
