Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FC114206 BOLT $8.16 To Order
Photo Part No Description Price (each) Stock
RYG000384 BOLT $14.61 To Order
Photo Part No Description Price (each) Stock
FC116216 BOLT $13.93 To Order
Photo Part No Description Price (each) Stock
KYG500270 BOLT $14.89 To Order
Photo Part No Description Price (each) Stock
KYG000240 BOLT $10.06 To Order
Photo Part No Description Price (each) Stock
RYH500280 NUT $10.52 To Order
Photo Part No Description Price (each) Stock
RYH500191 NUT $10.12 To Order
Photo Part No Description Price (each) Stock
RYH501060 NUT - FLANGED $7.38 To Order
Photo Part No Description Price (each) Stock
RYH500052 NUT $6.06 To Order
Photo Part No Description Price (each) Stock
FX116056 NUT - FLANGED $6.16 IN STOCK
Photo Part No Description Price (each) Stock
RYH500116 NUT - ADJUSTING SCREW $5.68 To Order
Photo Part No Description Price (each) Stock
RYG000461 BOLT $18.55 To Order
Photo Part No Description Price (each) Stock
RYG501580 BOLT $8.10 To Order
Photo Part No Description Price (each) Stock
RYF000182 WASHER - SPECIAL $8.64 To Order
Photo Part No Description Price (each) Stock
RGG500304 ARM - REAR SUSPENSION $311.68 To Order
RGG500314 ARM - REAR SUSPENSION $311.68 To Order
LR019977 ARM - REAR SUSPENSION $473.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010526 ARM - REAR SUSPENSION $295.20 To Order
LR010527 ARM - REAR SUSPENSION $331.97 To Order
LR063719 ARM - REAR SUSPENSION $476.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RGD500190 END - SPINDLE ROD CONNECTING $113.40 To Order
LR019117 END - SPINDLE ROD CONNECTING $153.78 To Order
Photo Part No Description Price (each) Stock
RGX500111 BUSH $19.09 To Order
Photo Part No Description Price (each) Stock
RHF500130 BUSH - REAR SUSPENSION $107.80 To Order
Photo Part No Description Price (each) Stock
RGX500201 BUSH $24.26 To Order
LR063744 BUSH $23.19 To Order
Photo Part No Description Price (each) Stock
RGX500211 BUSH - REAR SUSPENSION $24.26 To Order
RGX500290 BUSH $40.92 To Order
View All

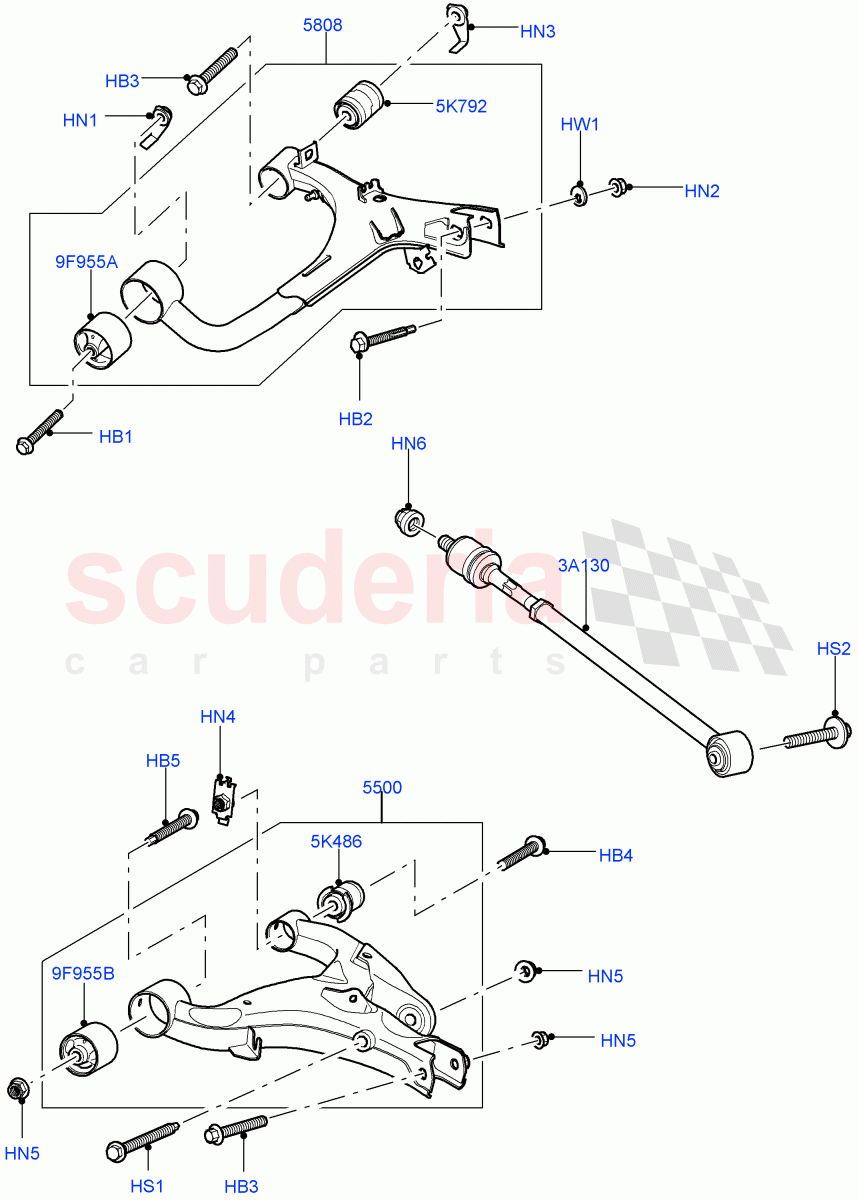

Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FC114206
BOLT
HEX Flange, Hexagonal Head, M14 x 100MM / From: AA000001 		$8.16 2
HB2 RYG000384
BOLT
M13 / From: AA000001 		$14.61 2
HB3 FC116216
BOLT
M16 X 105MM / From: AA000001 		$13.93 2
HB4 KYG500270
BOLT
M16 x 115MM / From: AA000001 		$14.89 2
HB5 KYG000240
BOLT
M16 X 120MM / From: AA000001 		$10.06 2
HN1 RYH500280
NUT
M14 / From: AA000001 		$10.52 2
HN2 RYH500191
NUT
M13 / From: AA000001 		$10.12 2
HN3 RYH501060
NUT - FLANGED
M16 / From: AA000001 		$7.38 2
HN4 RYH500052
NUT
M16 / From: AA000001 		$6.06 2
HN5 FX116056
NUT - FLANGED
M16 / From: AA000001
IN STOCK 		$6.16 2
HN6 RYH500116
NUT - ADJUSTING SCREW
M17 / From: AA000001 		$5.68 2
HS1 RYG000461
BOLT
225MM, M16, Shock Absorber To The Lower Arm / From: AA000001 		$18.55 2
HS2 RYG501580
BOLT
Bolt And Washer, HEX Flange, M14 X 80MM / From: AA000001 		$8.10 2
HW1 RYF000182
WASHER - SPECIAL
Adjusting / From: AA000001 		$8.64 2
3A130 RGD500190
END - SPINDLE ROD CONNECTING
LH, RH, Rear, Toe Link / From: AA000001 / To: AA222430 		$113.40 2
3A130 LR019117
END - SPINDLE ROD CONNECTING
LH, RH, Rear, Toe Link / From: AA222431 		$153.78 2
5K486 RGX500111
BUSH
Lower Arm, Rear Bush / From: AA000001 		$19.09 2
5K792 RHF500130
BUSH - REAR SUSPENSION
Rear Bush, Upper Arm / From: AA000001 		$107.80 2
9F955A RGX500201
BUSH
Front Bush, Upper Arm / From: AA000001 / To: AA999999 		$24.26 2
9F955A LR063744
BUSH
Front Bush, Upper Arm / From: BA000001 		$23.19 2
9F955B RGX500211
BUSH - REAR SUSPENSION
Front Bush, Lower Arm / From: AA000001 / To: AA222239 		$24.26 2
9F955B RGX500290
BUSH
Front Bush, Lower Arm / From: AA222240 		$40.92 2
5500 RGG500304
ARM - REAR SUSPENSION
RH, Complete Assembly, Lower / From: AA000001 / To: AA218010 		$311.68 1
5500 RGG500314
ARM - REAR SUSPENSION
LH, Complete Assembly, Lower / From: AA000001 / To: AA218010 		$311.68 1
5500 LR019977
ARM - REAR SUSPENSION
RH, Complete Assembly, Lower / From: AA218011 		$473.08 1
5500 LR019978
ARM - REAR SUSPENSION
LH, Complete Assembly, Lower / From: AA218011 		$473.08 1
5808 LR010526
ARM - REAR SUSPENSION
RH, Complete Assembly, Upper / From: AA000001 / To: BA999999 		$295.20 1
5808 LR010527
ARM - REAR SUSPENSION
LH, Complete Assembly, Upper / From: AA000001 / To: BA999999 		$331.97 1
5808 LR063719
ARM - REAR SUSPENSION
RH, Complete Assembly, Upper / From: CA000001 		$476.34 1
5808 LR063718
ARM - REAR SUSPENSION
LH, Complete Assembly, Upper / From: CA000001 		$476.34 1
