Exhaust Manifold (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Exhaust Manifold (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYG500210 BOLT - HEX.HEAD $14.25 To Order
Photo Part No Description Price (each) Stock
1316028 BOLT $1.31 To Order
Photo Part No Description Price (each) Stock
LYG500220 BOLT $1.40 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
1003736 SPACER $4.27 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
LR122427 BOLT $4.73 IN STOCK
LR122427 BOLT $4.73 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
1357627 STUD $2.53 IN STOCK
Photo Part No Description Price (each) Stock
LR113358 STUD $4.44 To Order
Photo Part No Description Price (each) Stock
1336543 GASKET - EXHAUST MANIFOLD $19.93 To Order
Photo Part No Description Price (each) Stock
LR072304 GASKET - EXHAUST MANIFOLD $15.13 To Order
Photo Part No Description Price (each) Stock
LR013302 PIPE - EXHAUST CROSSOVER $694.25 To Order
LR029141 PIPE - EXHAUST CROSSOVER $867.81 To Order
LR032061 PIPE - EXHAUST CROSSOVER $703.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013132 MANIFOLD - EXHAUST $341.91 To Order
LR052064 MANIFOLD - EXHAUST $556.82 To Order
Photo Part No Description Price (each) Stock
LR013133 MANIFOLD - EXHAUST $362.87 To Order
Photo Part No Description Price (each) Stock
LR029736 BRACKET - EXHAUST PIPE MOUNTING $23.62 To Order
Photo Part No Description Price (each) Stock
LR029737 BRACKET - EXHAUST PIPE MOUNTING $23.85 To Order
Photo Part No Description Price (each) Stock
WCU500130 BRACKET - EXHAUST PIPE MOUNTING $87.96 To Order
Photo Part No Description Price (each) Stock
LR013136 HEAT SHIELD - EXHAUST MANIFOLD $36.37 To Order
LR031387 HEAT SHIELD - EXHAUST MANIFOLD $67.46 To Order
Photo Part No Description Price (each) Stock
LR013137 HEAT SHIELD - EXHAUST MANIFOLD $38.39 To Order
Photo Part No Description Price (each) Stock
LR013138 HEAT SHIELD - EXHAUST MANIFOLD $38.39 To Order
Photo Part No Description Price (each) Stock
LR009325 SHIELD - EXHAUST MANIFOLD HEAT $15.29 To Order
LR038672 HEAT SHIELD - EXHAUST MANIFOLD $20.05 To Order
LR038672 HEAT SHIELD - EXHAUST MANIFOLD $20.05 To Order
...and 1 more part variants. See table on right for more details.
View All

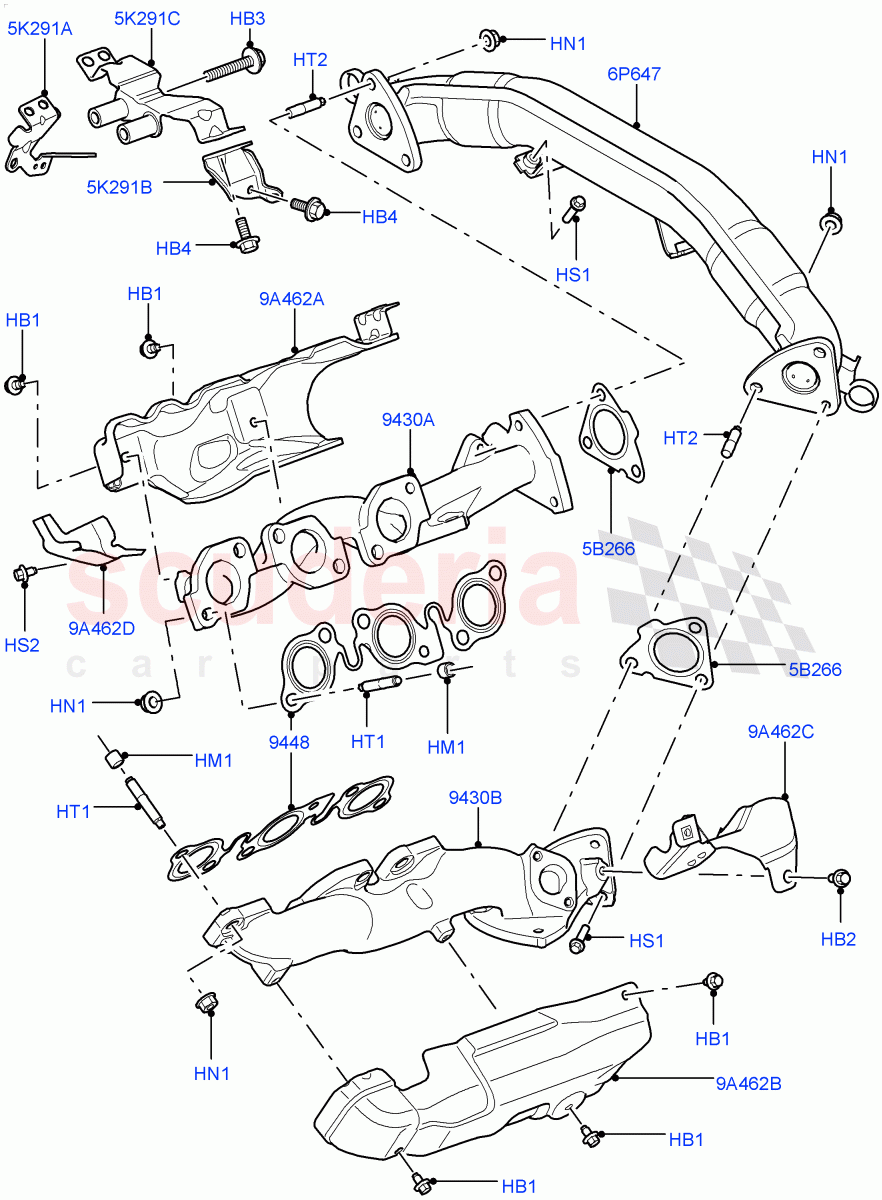

Exhaust Manifold (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LYG500210
BOLT - HEX.HEAD
Heat Shield, M6 X 8MM / From: AA000001 		$14.25 4
HB2 1316028
BOLT
M6 X 16MM / From: AA000001 		$1.31 2
HB3 LYG500220
BOLT
Hexagonal Head, M8 X 56MM / From: AA000001 		$1.40 2
HB4 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001
IN STOCK 		$0.68 6
HM1 1003736
SPACER
8.5 x 10MM, Spacer For Exhaust Manifold Bolt / From: AA000001 		$4.27 2
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: AA000001
IN STOCK 		$2.17 18
HS1 LR122427
BOLT
Hi temp, M8 X 25MM / From: AA000001
IN STOCK 		$4.73 4
HS1 LR122427
BOLT
From Crossover Tube, M8 X 25MM / From: AA000001
IN STOCK 		$4.73 1
HS2 RYG500160
SCREW
Heat Shield, Hexagonal Head, M6 X 14MM / From: AA000001 		$0.63 1
HT1 1357627
STUD
M8 X 17 + M8 X 19, Manifold To Cylinder Head / From: AA000001
IN STOCK 		$2.53 12
HT2 LR113358
STUD
From Crossover Tube, M8 X 16MM, M8 x 8MM / From: AA000001 		$4.44 5
5B266 LR072304
GASKET - EXHAUST MANIFOLD
Cross Over Pipe To Exhaust Manifold / From: AA000001 		$15.13 2
5K291A LR029736
BRACKET - EXHAUST PIPE MOUNTING
RH / From: CA000001 		$23.62 1
5K291B LR029737
BRACKET - EXHAUST PIPE MOUNTING
LH / From: CA000001 		$23.85 1
5K291C WCU500130
BRACKET - EXHAUST PIPE MOUNTING
Centre, For Exhaust Crossover Pipe / From: AA000001 		$87.96 1
6P647 LR013302
PIPE - EXHAUST CROSSOVER
Pipe - Exhaust Crossover / From: AA000001 / To: AA256675 		$694.25 1
6P647 LR029141
PIPE - EXHAUST CROSSOVER
Pipe - Exhaust Crossover / From: AA256676 / To: BA999999 		$867.81 1
6P647 LR032061
PIPE - EXHAUST CROSSOVER
Pipe - Exhaust Crossover / From: CA000001 / To: CA749599 		$703.56 1
6P647 LR038751
PIPE - EXHAUST CROSSOVER
Pipe - Exhaust Crossover / From: CA749600 		$694.25 1
9A462A LR013136
HEAT SHIELD - EXHAUST MANIFOLD
RH / From: AA000001 / To: CA740254 		$36.37 1
9A462A LR031387
HEAT SHIELD - EXHAUST MANIFOLD
RH / From: CA740255 		$67.46 1
9A462B LR013137
HEAT SHIELD - EXHAUST MANIFOLD
From: AA000001 		$38.39 1
9A462C LR013138
HEAT SHIELD - EXHAUST MANIFOLD
From: AA000001 		$38.39 1
9A462D LR009325
SHIELD - EXHAUST MANIFOLD HEAT
Exhaust Manifold, RH Front / From: AA000001 / To: CA999999 		$15.29 1
9A462D LR038672
HEAT SHIELD - EXHAUST MANIFOLD
Exhaust Manifold, RH Front / From: DA000001 / To: DA782483 		$20.05 1
9A462D LR038672
HEAT SHIELD - EXHAUST MANIFOLD
Less ACE Suspension / Exhaust Manifold, RH Front / From: DA782484 		$20.05 1
9A462D LR046910
SHIELD - EXHAUST MANIFOLD HEAT
With ACE Suspension / Exhaust Manifold, RH Front / From: DA782484 		$21.17 1
9430A LR013132
MANIFOLD - EXHAUST
RH / From: AA000001 / To: DA807500 		$341.91 1
9430A LR052064
MANIFOLD - EXHAUST
RH / From: DA807501 		$556.82 1
9430B LR013133
MANIFOLD - EXHAUST
LH / From: AA000001 		$362.87 1
9448 1336543
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: AA000001 		$19.93 2
