Name: Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

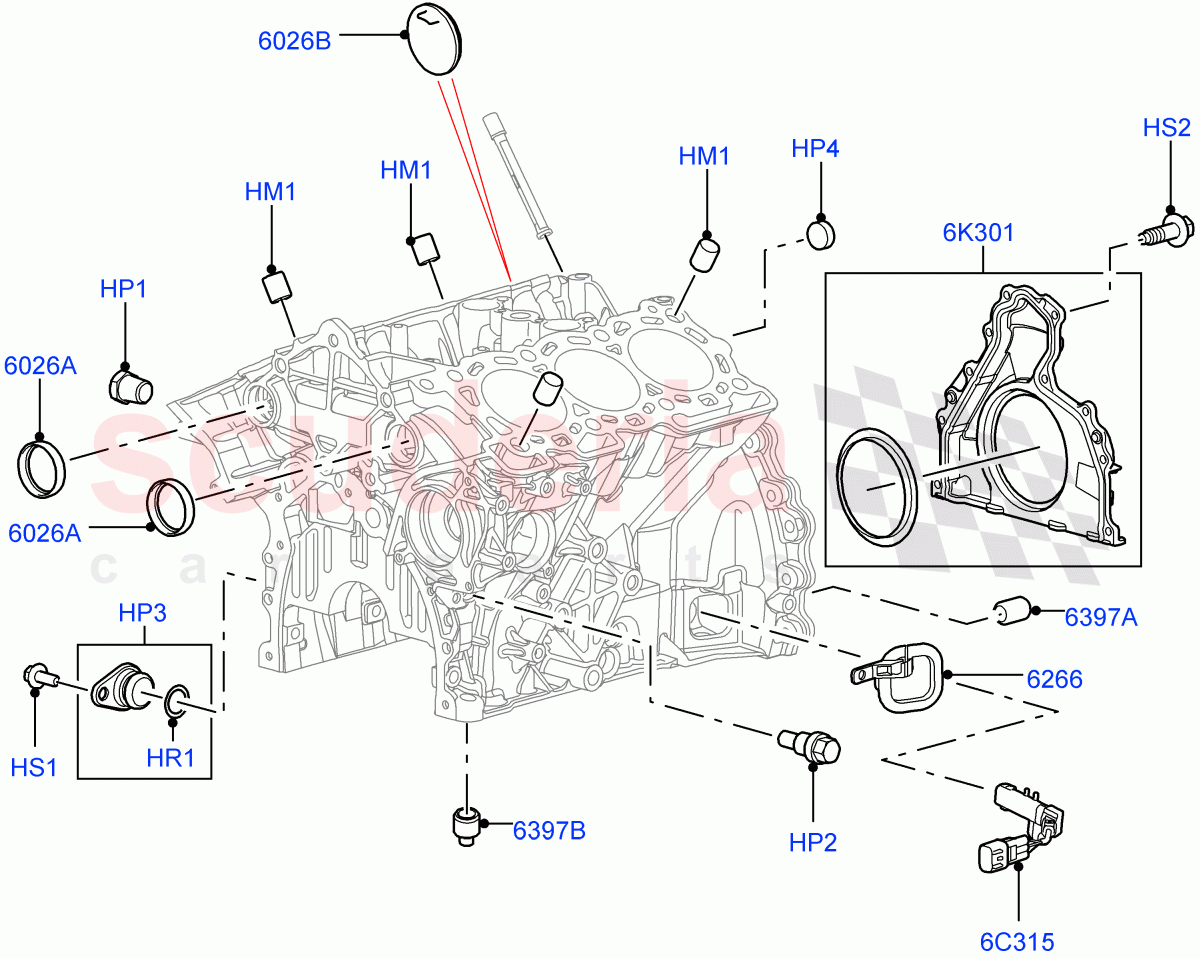

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3026220	PIN	$6.56	To Order
	LR023119	DOWEL - PIN	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003517	PLUG - ENGINE	$8.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000376	PLUG - THREADED	$9.88	To Order

Photo	Part No	Description	Price (each)	Stock
	1316062	PLUG - ENGINE	$5.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000375	PLUG	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	1418982	O-RING	$8.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022136	COVER - ACCESS HOLE	$3.63	To Order

Photo	Part No	Description	Price (each)	Stock
	3932421	PLUG - ENGINE	$8.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LCM500010	PLUG - ENGINE	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	$27.99	To Order

Photo	Part No	Description	Price (each)	Stock
	1316114	DOWEL	$15.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014228	SENSOR - CRANKSHAFT POSITION - CPS	$658.04	To Order
	LR021956	SENSOR - CRANKSHAFT POSITION - CPS	$215.06	To Order
	LR035560	SENSOR - CRANKSHAFT POSITION - CPS	$686.64	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1316115	RETAINER AND SEAL - CRANKSHAFT	$70.47	To Order
	LR032930	RETAINER - CRANKSHAFT OIL SEAL	$68.28	To Order
	LR036542	RETAINER AND SEAL - CRANKSHAFT	$83.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	3026220	PIN	3026220 PIN 4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel / From: AA000001 / To: AA254017	$6.56	4
HM1	LR023119	DOWEL - PIN	LR023119 DOWEL - PIN 4 Per Package, Hollow Type, M16 x 19MM, Pin - Dowell, Straight Dowel / From: AA254018	$1.18	4
HP1	LR003517	PLUG - ENGINE	LR003517 PLUG - ENGINE 1/4" x 18 NPSF, To Engine / From: AA000001	$8.41	1
HP2	LR000376	PLUG - THREADED	LR000376 PLUG - THREADED M10 X 11.5, Threaded Timing Plug / From: AA000001	$9.88	1
HP3	1316062	PLUG - ENGINE	1316062 PLUG - ENGINE Engine / From: AA000001	$5.51	2
HP4	LR000375	PLUG	LR000375 PLUG	$4.20	1
HR1	1418982	O-RING	1418982 O-RING 15 X 3MM / From: AA000001	$8.21	2
HS1	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM / From: AA000001	$0.74	2
HS2	4364422	SCREW	4364422 SCREW M6 X 16MM / From: AA000001	$1.41	10
6C315	LR014228	SENSOR - CRANKSHAFT POSITION - CPS	LR014228 SENSOR - CRANKSHAFT POSITION - CPS From: AA000001 / To: AA235854	$658.04	1
6C315	LR021956	SENSOR - CRANKSHAFT POSITION - CPS	LR021956 SENSOR - CRANKSHAFT POSITION - CPS From: AA235855 / To: CA999999	$215.06	1
6C315	LR035560	SENSOR - CRANKSHAFT POSITION - CPS	LR035560 SENSOR - CRANKSHAFT POSITION - CPS From: DA000001 / To: DA807692	$686.64	1
6C315	LR126062	SENSOR - CRANKSHAFT POSITION - CPS	LR126062 SENSOR - CRANKSHAFT POSITION - CPS From: DA807693	$161.91	1
6K301	1316115	RETAINER AND SEAL - CRANKSHAFT	1316115 RETAINER AND SEAL - CRANKSHAFT Rear / From: AA000001 / To: BA717002	$70.47	1
6K301	LR032930	RETAINER - CRANKSHAFT OIL SEAL	LR032930 RETAINER - CRANKSHAFT OIL SEAL Rear / From: BA717003 / To: CA999999	$68.28	1
6K301	LR036542	RETAINER AND SEAL - CRANKSHAFT	LR036542 RETAINER AND SEAL - CRANKSHAFT Rear / From: DA000001	$83.11	1
6026A	3932421	PLUG - ENGINE	3932421 PLUG - ENGINE Cup Type, OD=33.6MM, Service Only Oversize / From: AA000001	$8.55	2
6026B	LCM500010	PLUG - ENGINE	LCM500010 PLUG - ENGINE Converter Access Plug / From: AA000001	$1.84	1
6266	LR022136	COVER - ACCESS HOLE	LR022136 COVER - ACCESS HOLE Access Hole Cover, Sensor - Crankshaft Position - CPS / From: AA000001	$3.63	1
6397A	4603182	DOWEL	4603182 DOWEL 15.7MM, Pin - Dowell / From: AA000001	$27.99	2
6397B	1316114	DOWEL	1316114 DOWEL Oil Pan / From: AA000001	$15.03	2

Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
