Heater Hoses

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.11 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR033645 SCREW $1.57 IN STOCK
Photo Part No Description Price (each) Stock
LR034610 TUBE - HEATER WATER $94.85 To Order
LR057693 TUBE - HEATER WATER $291.33 To Order
LR081651 TUBE - HEATER WATER $140.16 To Order
Photo Part No Description Price (each) Stock
LR035637 HOSE - HEATER WATER $149.10 To Order
LR072522 HOSE - HEATER WATER $71.01 To Order
LR096503 HOSE - HEATER WATER $68.75 To Order
Photo Part No Description Price (each) Stock
LR035638 HOSE - HEATER WATER $160.58 To Order
LR085582 TUBE - AUXILIARY HEATER SUPPLY $287.43 To Order
Photo Part No Description Price (each) Stock
LR035639 HOSE - HEATER WATER $183.28 To Order
LR118345 TUBE - AUXILIARY HEATER SUPPLY $260.72 To Order
LR096502 HOSE - HEATER WATER $186.91 To Order
View All

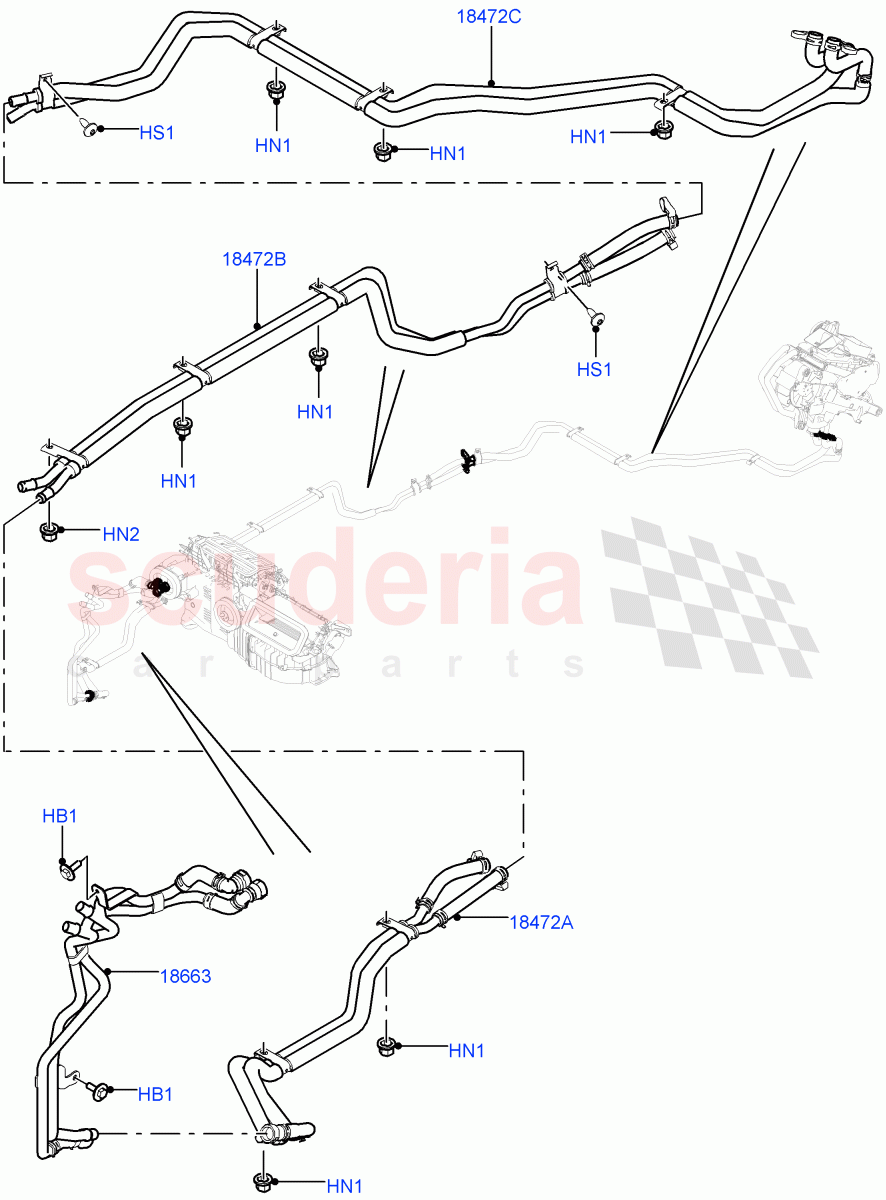

Heater Hoses of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.47 2
HN1 LR038544
NUT
6 X 1.6MM 		$2.11 7
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 1
HS1 LR033645
SCREW
M6 X 16MM, Torx
IN STOCK 		$1.57 2
18472A LR035637
HOSE - HEATER WATER
Front / To: EA390735 		$149.10 1
18472A LR072522
HOSE - HEATER WATER
Front / From: EA390736 / To: HA137578 		$71.01 1
18472A LR096503
HOSE - HEATER WATER
Front / From: HA137579 		$68.75 1
18472B LR035638
HOSE - HEATER WATER
Middle / To: GA999999 		$160.58 1
18472B LR085582
TUBE - AUXILIARY HEATER SUPPLY
Middle / From: HA000001 		$287.43 1
18472C LR035639
HOSE - HEATER WATER
Rear, To Heater Matrix / To: HA137578 		$183.28 1
18472C LR118345
TUBE - AUXILIARY HEATER SUPPLY
Rear, To Heater Matrix / From: JA811685 		$260.72 1
18472C LR096502
HOSE - HEATER WATER
Rear, To Heater Matrix / From: HA137579 / To: JA811684 		$186.91 1
18663 LR034610
TUBE - HEATER WATER
To Heater Matrix / To: EA999999 		$94.85 1
18663 LR057693
TUBE - HEATER WATER
To Heater Matrix / From: FA000001 / To: GA999999 		$291.33 1
18663 LR081651
TUBE - HEATER WATER
To Heater Matrix / From: HA000001 		$140.16 1
