Name: Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium Air Con Hybrid Front/Rear, 2 Zone Air Conditioning - Hybrid) ((V) FROMEA000001, (V) TOHA999999)
Rating: 4.1 (1 reviews)

Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium Air Con Hybrid Front/Rear, 2 Zone Air Conditioning - Hybrid) ((V) FROMEA000001, (V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium...

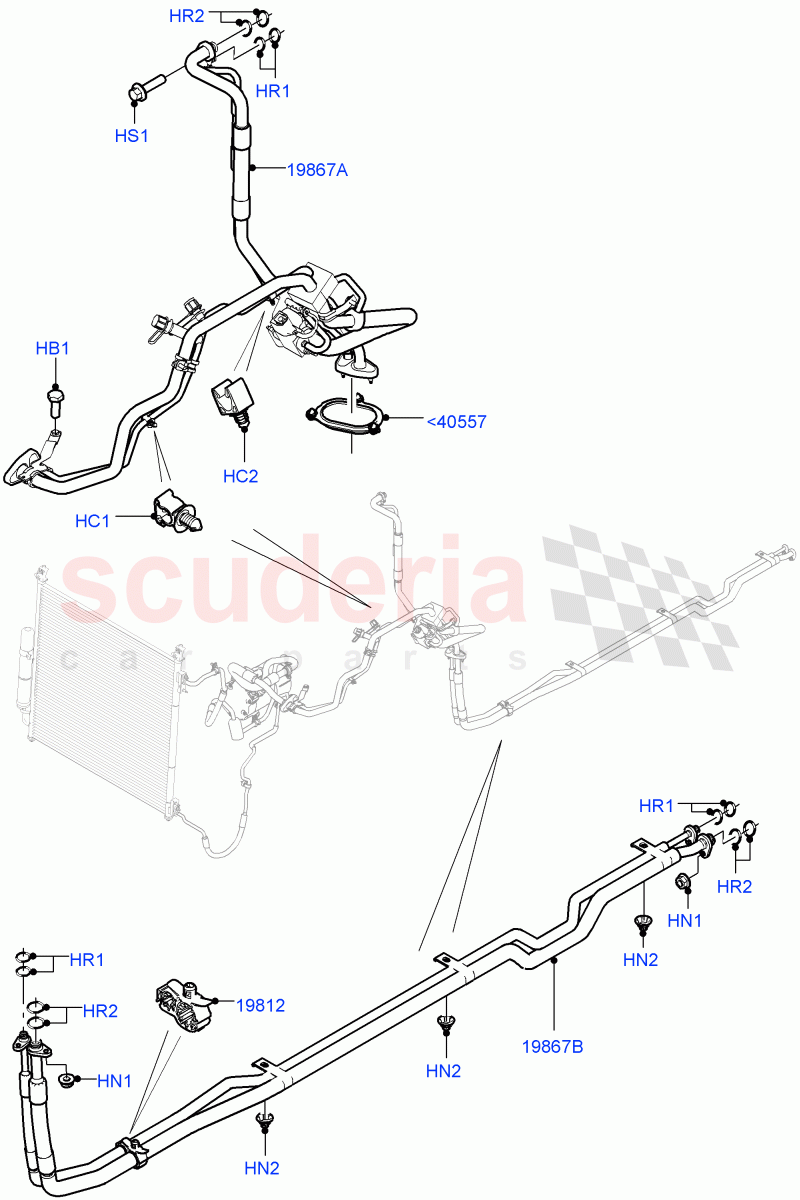

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$2.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038548	BRACKET - A/C PIPE	$21.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036404	SEAL - RUBBER	$22.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048888	TUBE- A/C EVAPORATOR INLET & OUTLET	$747.17	To Order
	LR048887	TUBE - A/C EVAPORATOR INLET & OUTLET	$686.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036409	TUBE - AUXILIARY EVAPORATOR	$627.36	To Order
	LR061557	TUBE - AUXILIARY EVAPORATOR	$181.06	To Order
	LR072187	TUBE - AUXILIARY EVAPORATOR	$379.99	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40557	LR036404	SEAL - RUBBER	LR036404 SEAL - RUBBER Air Conditioning Pipe / From: EA000001	$22.39	1
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM / From: EA000001	$0.52	4
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2, Single / From: EA000001 IN STOCK	$2.06	1
HC2	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: EA000001	$3.51	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001 IN STOCK	$1.46	4
HN2	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: EA000001	$2.10	3
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: EA000001	$4.33	6
HR2	LR044465	O-RING	LR044465 O-RING 14 X 1.78 / From: EA000001	$2.93	6
HS1	FS106256	SCREW	FS106256 SCREW Hex Head, M6 x 25MM / From: EA000001	$0.43	1
19812	LR038548	BRACKET - A/C PIPE	LR038548 BRACKET - A/C PIPE Air Conditioning Pipe / From: EA000001	$21.18	1
19867A	LR048888	TUBE- A/C EVAPORATOR INLET & OUTLET	LR048888 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Evaporator Inlet/Outlet, Includes Shut-Off Valve / From: EA000001	$747.17	1
19867A	LR048887	TUBE - A/C EVAPORATOR INLET & OUTLET	LR048887 TUBE - A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Evaporator Inlet/Outlet, Includes Shut-Off Valve / From: EA000001	$686.05	1
19867B	LR036409	TUBE - AUXILIARY EVAPORATOR	LR036409 TUBE - AUXILIARY EVAPORATOR Air Conditioning, Set Of 2 Pieces / To: EA359387	$627.36	1
19867B	LR061557	TUBE - AUXILIARY EVAPORATOR	LR061557 TUBE - AUXILIARY EVAPORATOR Air Conditioning, Set Of 2 Pieces / From: EA359388 / To: EA500152	$181.06	1
19867B	LR072187	TUBE - AUXILIARY EVAPORATOR	LR072187 TUBE - AUXILIARY EVAPORATOR Air Conditioning, Set Of 2 Pieces / From: EA500153 / To: GA999999	$379.99	1
19867B	LR085576	TUBE - AUXILIARY EVAPORATOR	LR085576 TUBE - AUXILIARY EVAPORATOR Air Conditioning, Set Of 2 Pieces / From: HA000001	$184.52	1
