Rear Exhaust System (5.0 Petrol Aj133 Dohc Cda) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.13 To Order
Photo Part No Description Price (each) Stock
LR106790 RESONATOR - EXHAUST SYSTEM $819.26 To Order
LR120471 RESONATOR - EXHAUST SYSTEM $942.17 To Order
Photo Part No Description Price (each) Stock
LR036438 EXHAUST $36.68 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $80.00 To Order
Photo Part No Description Price (each) Stock
LR105232 MUFFLER - REAR $1,008.02 To Order
Photo Part No Description Price (each) Stock
LR105237 MUFFLER - REAR $1,008.02 To Order
Photo Part No Description Price (each) Stock
LR035765 BRACKET - EXHAUST PIPE MOUNTING $31.27 To Order
Photo Part No Description Price (each) Stock
LR110251 BRACKET - REAR MUFFLER $31.27 To Order
Photo Part No Description Price (each) Stock
LR110252 BRACKET - REAR MUFFLER $31.27 To Order
Photo Part No Description Price (each) Stock
LR101087 BRACKET - EXHAUST PIPE MOUNTING $43.20 To Order
Photo Part No Description Price (each) Stock
LR101088 BRACKET - EXHAUST PIPE MOUNTING $74.60 To Order
View All

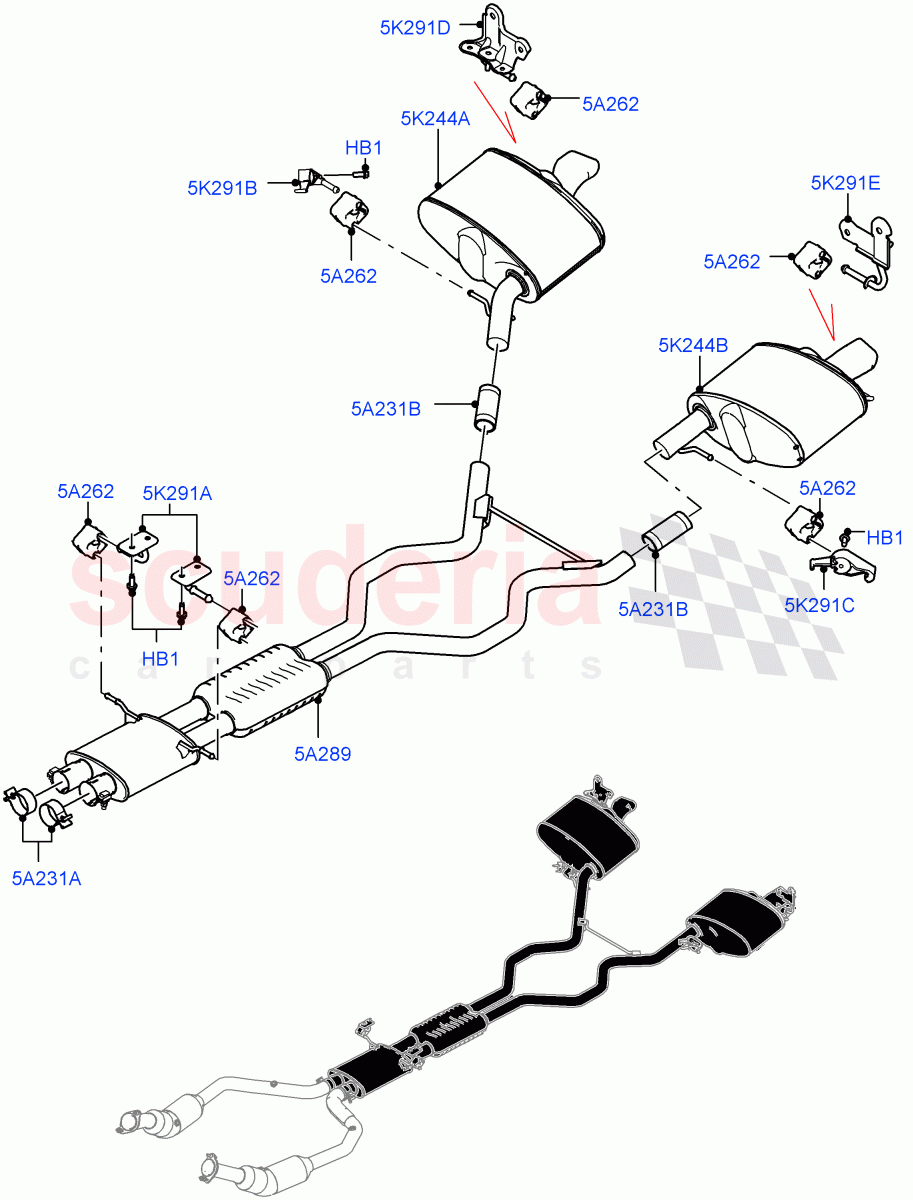

Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$2.29 6
5A231A LR036438
EXHAUST
60MM, Front, RESONATOR / From: JA000001 		$36.68 2
5A231B WCL500020
CLAMP - EXHAUST
50MM, For Rear Muffler / From: JA000001 		$80.00 2
5A262 LR090360
INSULATOR - RUBBER
From: JA000001 		$24.13 6
5A289 LR106790
RESONATOR - EXHAUST SYSTEM
From: JA000001 / To: KA818121 		$819.26 1
5A289 LR120471
RESONATOR - EXHAUST SYSTEM
From: KA818122 		$942.17 1
5K244A LR105232
MUFFLER - REAR
RH / From: JA000001 		$1,008.02 1
5K244B LR105237
MUFFLER - REAR
LH / From: JA000001 		$1,008.02 1
5K291A LR035765
BRACKET - EXHAUST PIPE MOUNTING
RESONATOR / From: JA000001 		$31.27 2
5K291B LR110251
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: JA000001 		$31.27 1
5K291C LR110252
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: JA000001 		$31.27 1
5K291D LR101087
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, RH Rear / From: JA000001 		$43.20 1
5K291E LR101088
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, LH Rear / From: JA000001 		$74.60 1
