Name: Exhaust System (Middle And Rear Section) (5.0L OHC SGDI SC V8 Petrol - AJ133, SVR Version, SVR, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Exhaust System (Middle And Rear Section) (5.0L OHC SGDI SC V8 Petrol - AJ133, SVR Version, SVR, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (Middle And Rear Section) (5.0L OHC SGDI SC V8 Petrol - AJ133, SVR Version, SVR,...

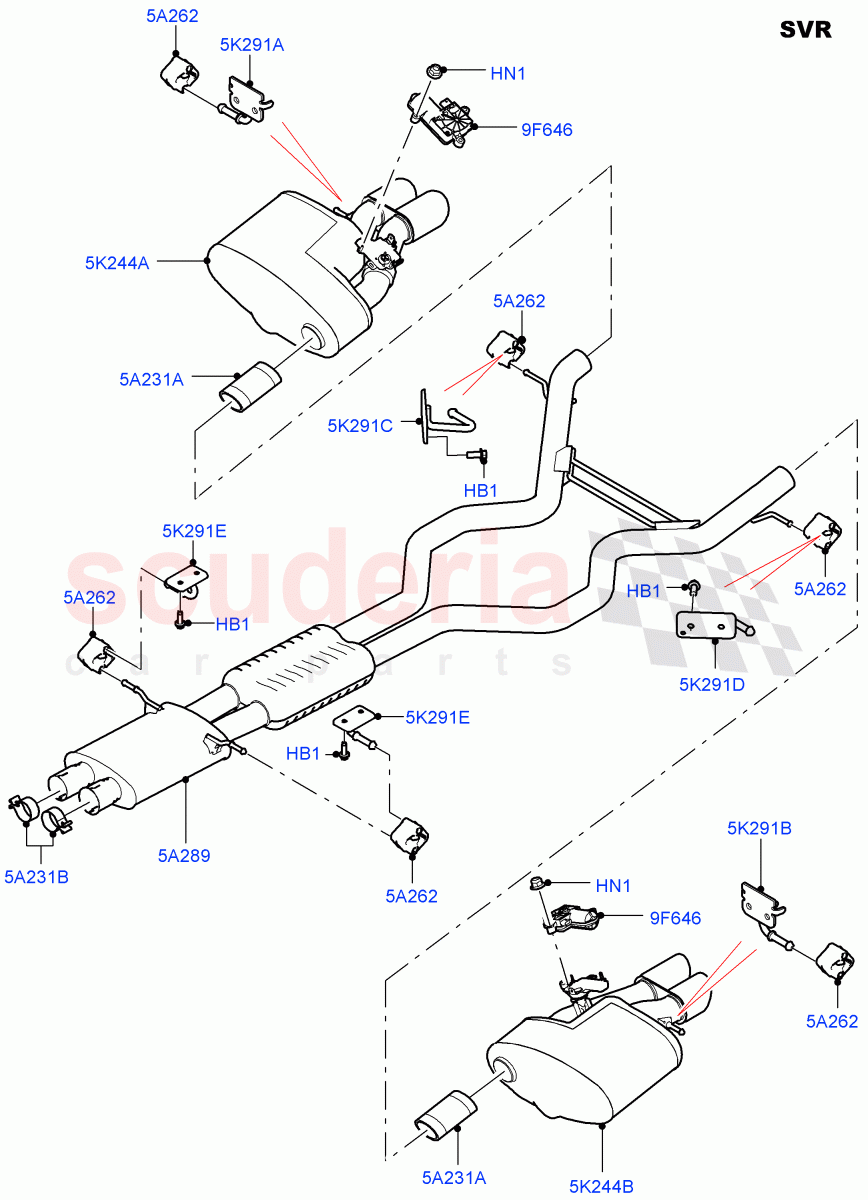

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR069903	NUT - FLANGED	$16.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062389	RESONATOR - EXHAUST SYSTEM	$1,433.09	To Order
	LR106417	RESONATOR - EXHAUST SYSTEM	$1,433.09	To Order
	LR156056	RESONATOR - EXHAUST SYSTEM	$1,433.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069902	ACTUATOR - ELECTRONIC EXHAUST VALVE	$256.38	To Order
	LR139397	ACTUATOR - ELECTRONIC EXHAUST VALVE	$299.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015372	CLAMP - EXHAUST	$82.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$36.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062390	MUFFLER - REAR	$2,100.77	To Order
	LR106419	MUFFLER - REAR	$2,040.66	To Order
	LR095294	MUFFLER - REAR	$2,290.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062391	MUFFLER - REAR	$2,175.40	To Order
	LR106418	MUFFLER - REAR	$2,040.66	To Order
	LR095293	MUFFLER - REAR	$2,087.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063756	BRACKET - EXHAUST PIPE MOUNTING	$66.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063757	BRACKET - EXHAUST PIPE MOUNTING	$33.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125204	BRACKET - REAR MUFFLER	$31.30	To Order
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$32.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125205	BRACKET - REAR MUFFLER	$30.68	To Order
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$32.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$31.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001 IN STOCK	$2.29	8
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001 IN STOCK	$2.29	4
HN1	LR069903	NUT - FLANGED	LR069903 NUT - FLANGED M5 / From: FA000001	$16.33	6
5A231A	LR015372	CLAMP - EXHAUST	LR015372 CLAMP - EXHAUST 60MM / From: FA000001	$82.86	2
5A231B	LR036438	EXHAUST	LR036438 EXHAUST 60MM / From: FA000001	$36.71	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: FA000001	$24.15	6
5A289	LR062389	RESONATOR - EXHAUST SYSTEM	LR062389 RESONATOR - EXHAUST SYSTEM From: FA000001 / To: HA999999	$1,433.09	1
5A289	LR106417	RESONATOR - EXHAUST SYSTEM	LR106417 RESONATOR - EXHAUST SYSTEM 5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001 / To: LA999999	$1,433.09	1
5A289	LR156056	RESONATOR - EXHAUST SYSTEM	LR156056 RESONATOR - EXHAUST SYSTEM From: MA000001	$1,433.09	1
5K244A	LR062390	MUFFLER - REAR	LR062390 MUFFLER - REAR RH / From: FA000001 / To: GA999999	$2,100.77	1
5K244A	LR106419	MUFFLER - REAR	LR106419 MUFFLER - REAR 5.0L P AJ133 DOHC CDA S/C Enhanced / RH / From: JA000001	$2,040.66	1
5K244A	LR095294	MUFFLER - REAR	LR095294 MUFFLER - REAR RH / From: HA000001 / To: HA999999	$2,290.55	1
5K244B	LR062391	MUFFLER - REAR	LR062391 MUFFLER - REAR LH / From: FA000001 / To: GA999999	$2,175.40	1
5K244B	LR106418	MUFFLER - REAR	LR106418 MUFFLER - REAR 5.0L P AJ133 DOHC CDA S/C Enhanced / LH / From: JA000001	$2,040.66	1
5K244B	LR095293	MUFFLER - REAR	LR095293 MUFFLER - REAR LH / From: HA000001 / To: HA999999	$2,087.35	1
5K291A	LR063756	BRACKET - EXHAUST PIPE MOUNTING	LR063756 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / RH / From: FA000001	$66.59	1
5K291B	LR063757	BRACKET - EXHAUST PIPE MOUNTING	LR063757 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / LH / From: FA000001	$33.63	1
5K291C	LR125204	BRACKET - REAR MUFFLER	LR125204 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: JA000001	$31.30	1
5K291C	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH Front / From: FA000001 / To: HA999999	$32.90	1
5K291D	LR125205	BRACKET - REAR MUFFLER	LR125205 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: JA000001	$30.68	1
5K291D	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH Front / From: FA000001 / To: HA999999	$32.90	1
5K291E	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING RH/LH / From: FA000001	$31.30	2
9F646	LR069902	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR069902 ACTUATOR - ELECTRONIC EXHAUST VALVE From: FA000001 / To: HA999999	$256.38	2
9F646	LR139397	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR139397 ACTUATOR - ELECTRONIC EXHAUST VALVE From: JA000001	$299.48	1
