Name: Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999)
Rating: 5.0 (1 reviews)

Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999)

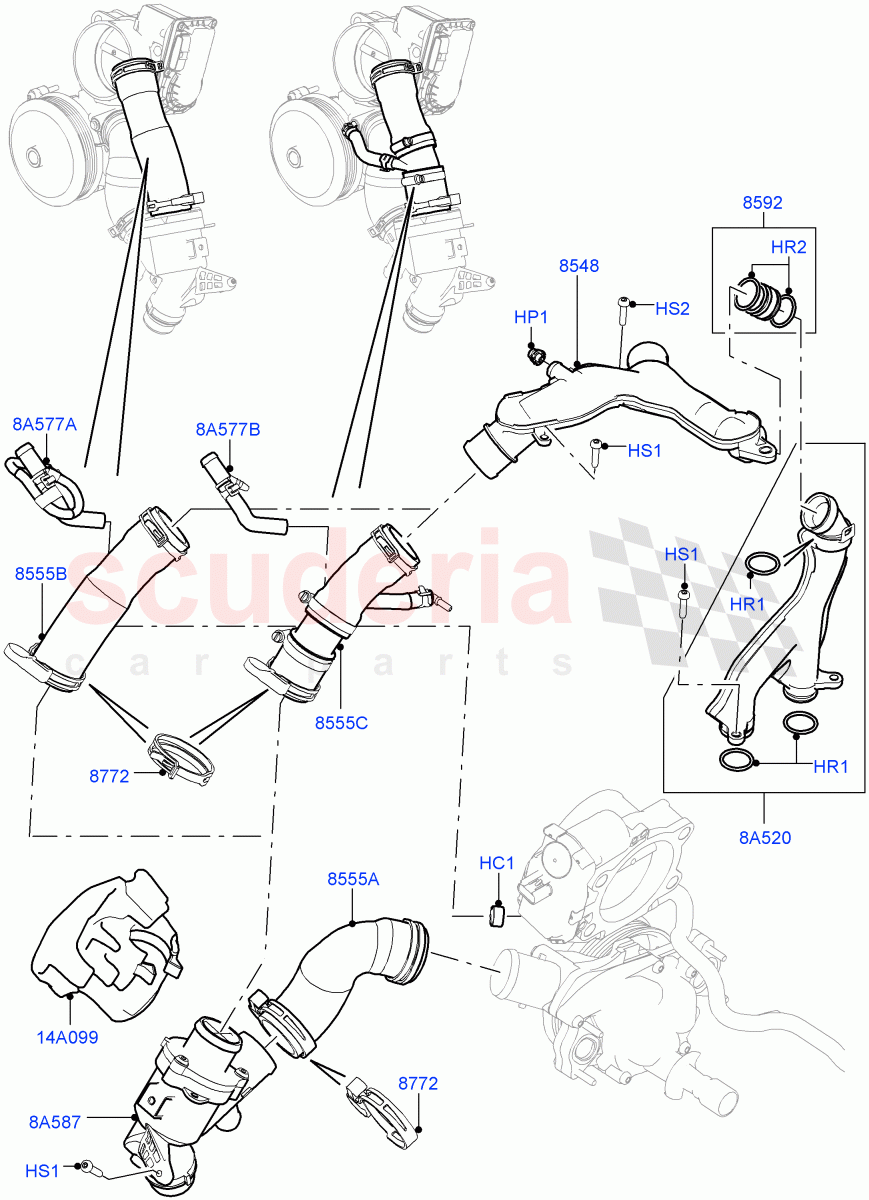

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	$3.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010800	O-RING	$6.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048472	O-RING	$6.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090630	TUBE - WATER INLET	$55.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092992	TUBE - WATER OUTLET	$55.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034109	CLAMP - HOSE	$8.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033994	TUBE - WATER OUTLET	$23.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011856	TUBE - THERMOSTAT	$20.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048474	Tube	$49.70	To Order
	LR049990	TUBE - THERMOSTAT	$56.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092992	TUBE - WATER OUTLET	$55.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR035124	THERMOSTAT AND HOUSING	$110.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051007	SHIELD - PROTECTION	$99.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	$51.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	$51.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater	$3.21	1
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Cooling System Bleed	$5.15	1
HR1	LR010800	O-RING IN STOCK	LR010800 O-RING Ring - Sealing - Tube Water Outlet From Cylinder Block IN STOCK	$6.65	3
HR2	LR048472	O-RING IN STOCK	LR048472 O-RING IN STOCK	$6.55	2
HS1	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, Torx IN STOCK	$1.25	5
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx	$1.38	1
8A520	LR092992	TUBE - WATER OUTLET IN STOCK	LR092992 TUBE - WATER OUTLET Includes O-Ring, Tube Water Outlet To Cylinder Block IN STOCK	$55.94	1
8A577A	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	LR045239 HOSE - THROTTLE BODY HEATER OUTLET Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Hose - Throttle Body Heater, Outlet	$51.83	1
8A577B	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	LR045239 HOSE - THROTTLE BODY HEATER OUTLET Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Hose - Throttle Body Heater, Outlet	$51.83	1
8A587	LR035124	THERMOSTAT AND HOUSING	LR035124 THERMOSTAT AND HOUSING Thermostat And Housing Assy	$110.54	1
14A099	LR051007	SHIELD - PROTECTION	LR051007 SHIELD - PROTECTION Engine Air Deflector	$99.19	1
8548	LR090630	TUBE - WATER INLET IN STOCK	LR090630 TUBE - WATER INLET Water Connector - Thermostat To Top Coolant Hose IN STOCK	$55.83	1
8555A	LR033994	TUBE - WATER OUTLET IN STOCK	LR033994 TUBE - WATER OUTLET From Water Pump To Thermostat, With Clamps IN STOCK	$23.26	1
8555B	LR011856	TUBE - THERMOSTAT	LR011856 TUBE - THERMOSTAT Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps	$20.03	1
8555C	LR048474	Tube	LR048474 Tube Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps / To: EA050000	$49.70	1
8555C	LR049990	TUBE - THERMOSTAT	LR049990 TUBE - THERMOSTAT Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps / From: EA050001	$56.45	1
8592	LR092992	TUBE - WATER OUTLET IN STOCK	LR092992 TUBE - WATER OUTLET Includes O-Ring IN STOCK	$55.94	1
8772	LR034109	CLAMP - HOSE	LR034109 CLAMP - HOSE 49MM	$8.36	2

Thermostat/Housing & Related Parts (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Tofa999999)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999)
