Radiator/Coolant Overflow Container (Main Unit) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, 5.0 Petrol...

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Radiator/Coolant Overflow Container (Main Unit) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR053660 CLIP - RETAINING $2.11 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
LR038068 NUT - SPECIAL $1.74 To Order
Photo Part No Description Price (each) Stock
LR040736 NUT - SQUARE $1.29 IN STOCK
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR038052 SCREW $2.49 IN STOCK
Photo Part No Description Price (each) Stock
LR033039 SCREW AND WASHER - HEX HEAD $1.68 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
VYF500090 WASHER $0.81 To Order
Photo Part No Description Price (each) Stock
PYF100830 WASHER - PLASTIC $0.77 To Order
Photo Part No Description Price (each) Stock
LR039009 PLUG $20.28 To Order
Photo Part No Description Price (each) Stock
LR162110 RADIATOR $571.23 To Order
LR162110 RADIATOR $571.23 To Order
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER $17.10 To Order
Photo Part No Description Price (each) Stock
LR036525 SHROUD - RADIATOR FAN $242.29 To Order
LR057118 SHROUD - RADIATOR FAN $234.07 To Order
LR082989 SHROUD - RADIATOR FAN $212.15 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING $2.73 IN STOCK
Photo Part No Description Price (each) Stock
LR034569 INSULATOR - RADIATOR SUPPORT $6.38 To Order
Photo Part No Description Price (each) Stock
LR034565 INSULATOR - RADIATOR SUPPORT $6.20 To Order
Photo Part No Description Price (each) Stock
LR181676 TANK - RADIATOR OVERFLOW $138.39 IN STOCK
Photo Part No Description Price (each) Stock
LR007315 SEAL $2.25 IN STOCK
Photo Part No Description Price (each) Stock
LR034571 PIN - RADIATOR MOUNTING $4.85 To Order
Photo Part No Description Price (each) Stock
LR036523 MOTOR AND FAN - ENGINE COOLING $1,033.75 To Order
LR069901 MOTOR AND FAN - ENGINE COOLING $725.30 To Order
LR084438 MOTOR AND FAN - ENGINE COOLING $1,033.75 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012644 FAN AND MOTOR $828.85 To Order
LR112860 FAN AND MOTOR $828.85 To Order
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW $4.77 To Order
LR055301 VALVE - BLEEDER SCREW $9.02 IN STOCK
Photo Part No Description Price (each) Stock
ANR6461 FASTENER - SCREW TYPE $2.49 To Order
Photo Part No Description Price (each) Stock
EZM000110 FASTENER - COVER $4.37 To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $24.97 IN STOCK
View All

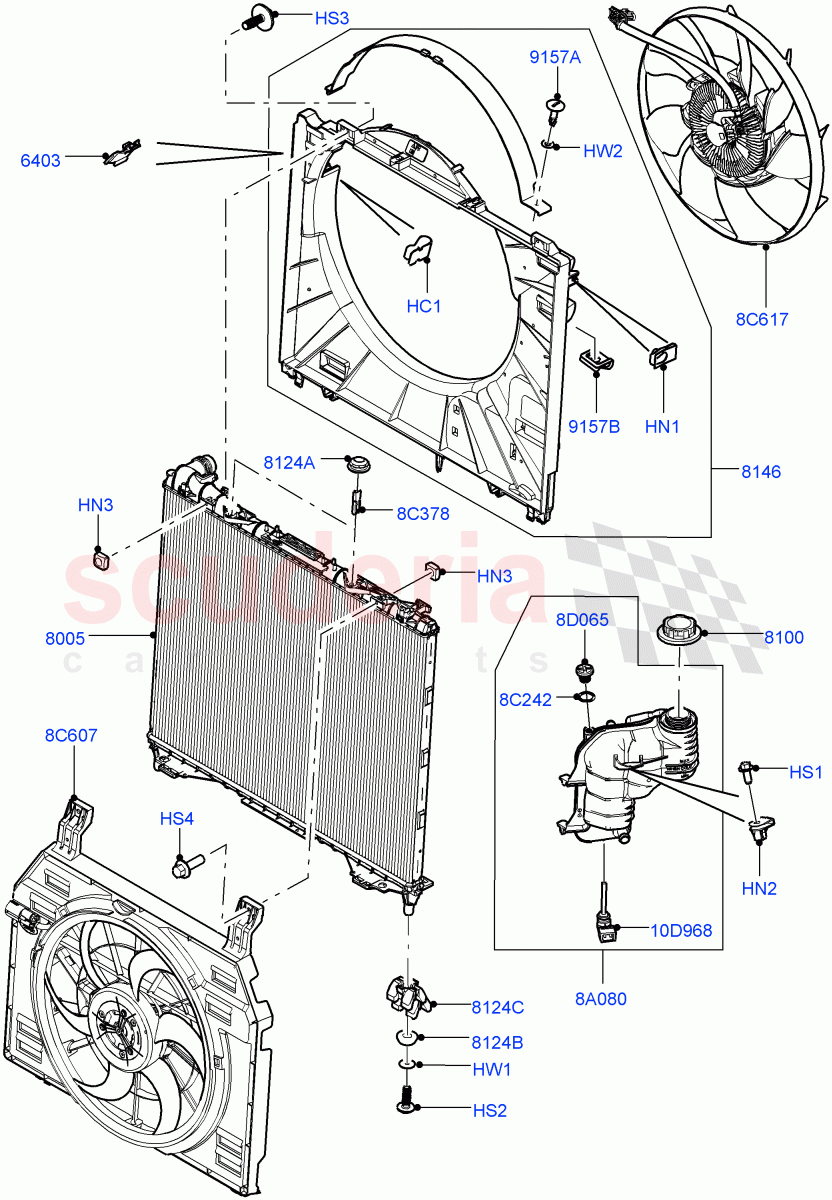

Radiator/Coolant Overflow Container (Main Unit) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR053660
CLIP - RETAINING
Retainer 		$2.11 1
HN1 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.62 3
HN2 LR038068
NUT - SPECIAL
Expansion Tank, Nut U Spring M6 Push On 		$1.74 1
HN3 LR040736
NUT - SQUARE
M6, Square
IN STOCK 		$1.29 4
HS1 BYP500170
SCREW
Hexagonal Head, M6 x 14MM
IN STOCK 		$1.24 1
HS2 LR038052
SCREW
8 x 24MM, Torx
IN STOCK 		$2.49 2
HS3 LR033039
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 x 19MM 		$1.68 2
HS4 FS106206
SCREW
HEX Flange, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 2
HW1 VYF500090
WASHER
8.4 X 31 X 1.6 		$0.81 2
HW2 PYF100830
WASHER - PLASTIC
Plastic 		$0.77 1
8A080 LR181676
TANK - RADIATOR OVERFLOW
IN STOCK 		$138.39 1
8C242 LR007315
SEAL
Bleeder Screw
IN STOCK 		$2.25 1
8C378 LR034571
PIN - RADIATOR MOUNTING
Radiator Mounting, Upper 		$4.85 2
8C607 LR036523
MOTOR AND FAN - ENGINE COOLING
Air Conditioning Condenser / To: EA385052 		$1,033.75 1
8C607 LR069901
MOTOR AND FAN - ENGINE COOLING
Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: EA385053 / To: GA569191 		$725.30 1
8C607 LR084438
MOTOR AND FAN - ENGINE COOLING
Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: GA569192 / To: GA999999 		$1,033.75 1
8C607 LR081688
MOTOR AND FAN - ENGINE COOLING
Air Conditioning Condenser / From: HA000001 / To: KA851238 		$1,033.75 1
8C607 LR125203
MOTOR AND FAN - ENGINE COOLING
Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: KA851239 / To: MA757010 		$1,033.75 1
8C607 LR146883
MOTOR AND FAN - ENGINE COOLING
Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: MA757011 		$1,033.75 1
8C617 LR012644
FAN AND MOTOR
To: HA999999 		$828.85 1
8C617 LR112860
FAN AND MOTOR
From: JA000001 		$828.85 1
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / To: EA319999 		$4.77 1
8D065 LR055301
VALVE - BLEEDER SCREW
Bleeder Screw / From: EA320000
IN STOCK 		$9.02 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
IN STOCK 		$24.97 1
6403 LR039009
PLUG
Located At Fan Shroud 		$20.28 1
8005 LR162110
RADIATOR
To: NA204561 		$571.23 1
8005 LR162110
RADIATOR
From: NA204562 		$571.23 1
8100 LR176861
CAP - OVERFLOW CONTAINER 		$17.10 1
8124A PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top
IN STOCK 		$2.73 2
8124B LR034569
INSULATOR - RADIATOR SUPPORT
Lower 		$6.38 2
8124C LR034565
INSULATOR - RADIATOR SUPPORT
Radiator Support 		$6.20 2
8146 LR036525
SHROUD - RADIATOR FAN
Upper And Lower / To: EA312942 		$242.29 1
8146 LR057118
SHROUD - RADIATOR FAN
Upper And Lower / From: EA312943 / To: GA574224 		$234.07 1
8146 LR082989
SHROUD - RADIATOR FAN
Upper And Lower / From: GA574225 / To: HA999999 		$212.15 1
8146 LR111333
SHROUD - RADIATOR FAN
5.0 Petrol AJ133 DOHC CDA / Upper And Lower / From: JA000001 		$212.15 1
8146 LR103567
SHROUD - RADIATOR FAN
5.0L P AJ133 DOHC CDA S/C Enhanced / Upper And Lower / From: JA000001 		$210.92 1
9157A ANR6461
FASTENER - SCREW TYPE
Screw Type 		$2.49 1
9157B EZM000110
FASTENER - COVER
Retainer 		$4.37 1
