Name: Inlet Manifold (Symposer (Resonator)) (5.0L OHC SGDI SC V8 Petrol - AJ133)
Rating: 4.5 (1 reviews)

View All

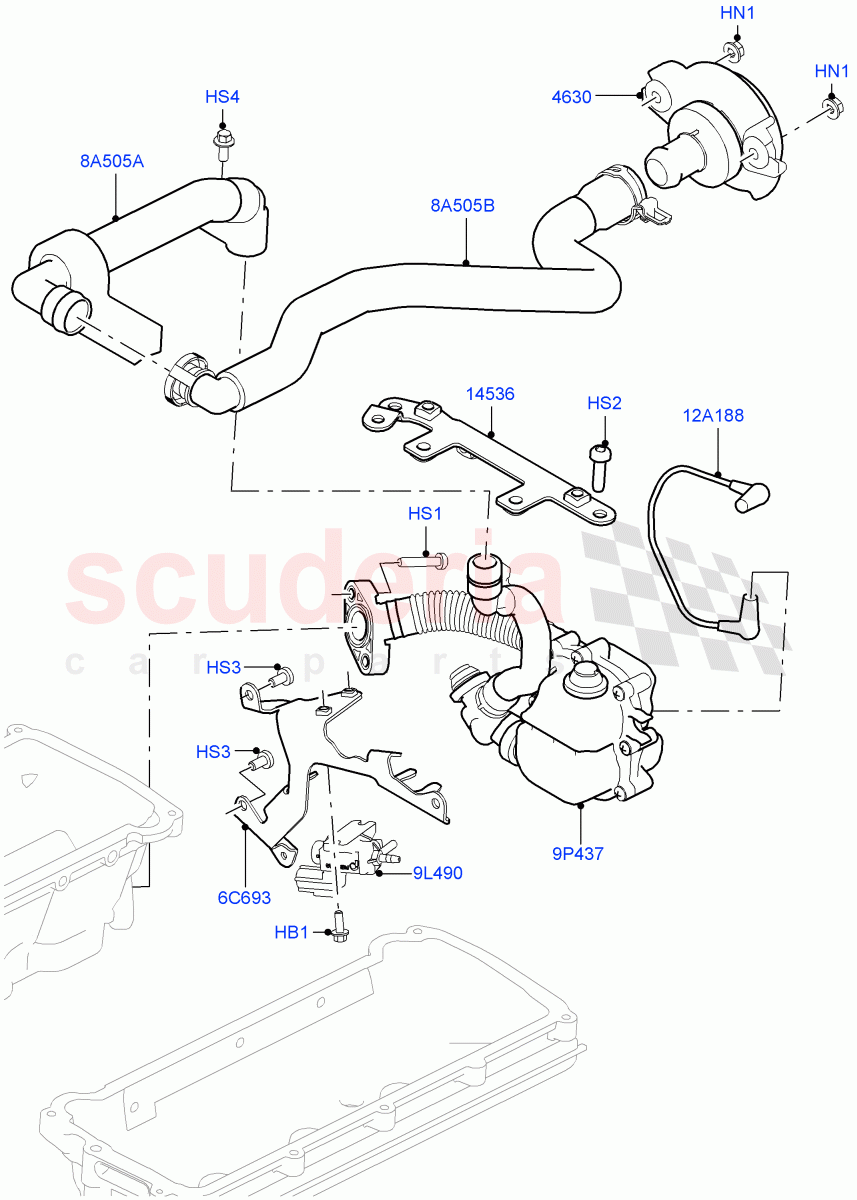

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012368	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011267	SCREW	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500900	SCREW	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106146	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016211	CONE - SYMPOSER TUBE	$83.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017287	BRACKET - SYMPOSER	$32.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020250	BRACKET - EXHAUST PIPE MOUNTING	$44.49	To Order
	LR078817	BRACKET	$33.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011982	VALVE - VACUUM CONTROL	$166.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011941	HOSE - VACUUM	$15.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR045357	HOSE - SYMPOSER	$123.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045358	HOSE - SYMPOSER	$88.72	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR012368	BOLT	LR012368 BOLT M5 x 14MM, Valve - Vacuum Control	$1.03	2
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, Resonator Tube - Cone IN STOCK	$0.68	2
HS1	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM IN STOCK	$1.24	3
HS2	LR011267	SCREW IN STOCK	LR011267 SCREW M6 X 20MM IN STOCK	$1.05	2
HS3	RYP500900	SCREW IN STOCK	RYP500900 SCREW M6 x 12MM, Torx IN STOCK	$0.67	3
HS4	FS106146	SCREW	FS106146 SCREW Hexagonal Head, M6 X 14MM	$0.47	1
6C693	LR020250	BRACKET - EXHAUST PIPE MOUNTING	LR020250 BRACKET - EXHAUST PIPE MOUNTING To Symposer / To: EA299999	$44.49	1
6C693	LR078817	BRACKET	LR078817 BRACKET To Symposer / From: EA300000	$33.96	1
8A505A	LR045357	HOSE - SYMPOSER	LR045357 HOSE - SYMPOSER Outlet, Symposer (Resonator)	$123.20	1
8A505B	LR045358	HOSE - SYMPOSER	LR045358 HOSE - SYMPOSER Symposer (Resonator)	$88.72	1
9L490	LR011982	VALVE - VACUUM CONTROL	LR011982 VALVE - VACUUM CONTROL Symposer (Resonator)	$166.49	1
9P437	LR046115	Symposer	LR046115 Symposer To: EA333332	-	1	Enquire
9P437	LR049366	SYMPOSER	LR049366 SYMPOSER From: EA333333	$281.15	1
12A188	LR011941	HOSE - VACUUM IN STOCK	LR011941 HOSE - VACUUM To Symposer IN STOCK	$15.35	1
4630	LR016211	CONE - SYMPOSER TUBE	LR016211 CONE - SYMPOSER TUBE 46mm I.D. x 2.31mm Thick	$83.97	1
14536	LR017287	BRACKET - SYMPOSER	LR017287 BRACKET - SYMPOSER Symposer (Resonator), Upper	$32.03	1

Inlet Manifold (Symposer (Resonator)) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]
